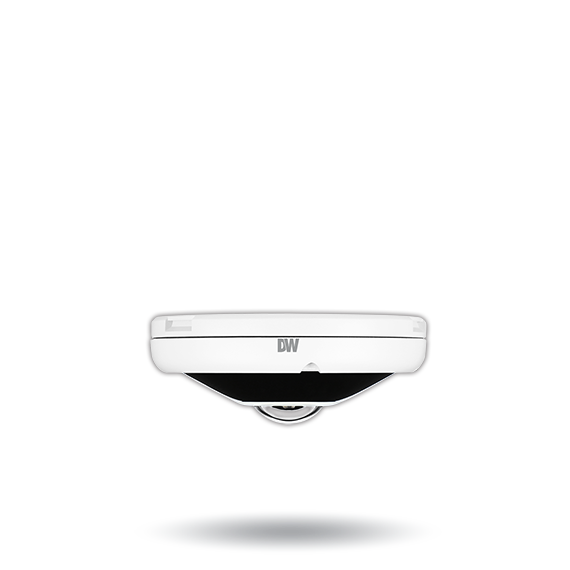

Digital Watchdog - DWC-PVF5M1TIRWC5 - MEGApix CaaS 5MP vandal fisheye IP camera with fisheye lens and IR with 512GB Storage
Part number:
DWC-PVF5M1TIRWC5
Price:
All-in-one cameras that do not require NVR’s, DVR’s or on-premise servers
MEGApix CaaS cameras act as an all-in-one solution, handling recording, notifications, management and monitoring all accessed remotely, with no need for a dedicated server or remote recorder.
Ideal complete DW Spectrum solution for small scale applications
The MEGApix CaaS, combined with Blackjack NAS desktop products can deliver a complete DW Spectrum network solution.
360° hemispheric and panoramic fisheye views at real-time 30fps
360° fisheye view IP cameras MEGApix Pano 360° view fisheye cameras with IR monitor an entire room with a single camera, providing the ultimate ROI.
Complete situational awareness with a single camera
Fisheye cameras can cover complete room monitoring with situational awareness and a 360 hemispheric image that can be dewarped with minimal loss of pixels. The result is a more efficient way to monitor indoor spaces with one solution replacing multiple cameras.
Features
- All-in-one cameras, no server required
- 5MP 1/1.8" image sensor at real-time 30fps
- 1.5mm fisheye lens
- Built-in 512GB and 1TB storage options for up to 60 days of retained video*
- Support 360° hemispheric fisheye view and 360°, 180° and 90° panoramic views
- Edge-to-edge image clarity
- Easily to deploy with pre-loaded DW Spectrum IPVMS for out-of-the-box operation
- 24/7 access to live and recorded video feed
- Automatic installation and licensing with first power on
- Connect up to 30 MEGApix CaaS edge cameras
- Dual recording option with Blackjack NAS appliance
- Dual codecs (H.264, MJPEG) with simultaneous dual-stream
- 55’ Smart IR with intelligent camera sync
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- Motion detection
- Web server built-in
- PoE class 3 and DC12V
- Waterproof cabling
- UL listed
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- 5 year warranty
| IMAGE | |
| Image sensor | 5MP 1/1.8” CMOS sensor |
| Total pixels | 3096 (H) X 2080 (V) |
| Minimum scene illumination | 0.39 lux (color) |
| 0 lux (B/W) | |
| Video output | Local video output CVBS 1.0V p-p (75W)], 4:3 aspect ratio |
| Resolution | 5MP (2592x1944) |
| LENS | |
| Focal length | 1.55mm, F2.5 |
| Lens type | Fisheye lens |
| Field of view (FoV) | 360° |
| IR distance | 55ft range |
| OPERATIONAL | |
| Shutter mode | Auto, manual, anti-flicker, slow shutter |
| Shutter speed | 1/30 ~ 1/32000 |
| Slow shutter | 1~1/5,1/7.5, 1/10 |
| Auto gain control | Auto |
| Day and night | Auto, day (Color), night (B/W) |
| Smart DNR 3D digital noise reduction | 0~11 |
| Privacy zone | 4 Programmable privacy masks |
| Alarm notifications | Notifications via e-mail, FTP server or SD card recording |
| NETWORK | |
| LAN | 10/100 Based-T, RJ-45 connector |
| Video compression type | H.264, MJPEG |
| Resolution | 2592 X 1944 @ 30fps, 640X480 @ 30fps, 320X240 @ 30fps |
| Frame rate | Up to 30fps at all resolutions |
| Video bitrate | 100Kbps ~ 10mbps, multi-rate for preview and recording |
| Bitrate control | Multi streaming CBR/VBR at H.264 (Controllable frame rate and bandwidth) |
| Streaming capability | Dual-stream at different rates and resolutions |
| IP | IPv4 |
| Protocol | Zero config (Auto IP), ONVIF, TCP/IP, UDP, RTP (UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3 (MIB-2) |
| Security | HTTPS (TLS), IP filtering, 802.1x, digest authentication (ID/PW) |
| Maximum user access | 5 users |
| Onvif conformance | Yes |
| Web viewer | OS: Windows, Mac OS, Linux Browser: Internet Explorer, Google Chrome, Mozilla Firefox, Safari |
| Video management software | DW Spectrum IPVMS |
| Number of DW Spectrum IPVMS licenses included | 1 DW Spectrum license |
| Local server recording | DWC-PVF5M1TIRWC1T: 1TB local memory for recording DWC-PVF5M1TIRWC5: 512GB local memory for recording |
| Max. Number of CaaS cameras in the same network/system | Up to 30 MEGApix CaaS cameras in the same network/system |
| ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | Less than 90% (Non-condensing) |
| IP rating | IP66-rated |
| Other certifications | FCC, CE, ROHS, UL listed |
| Electrical | |
| Power requirement | DC12V, PoE (IEEE 802.3af Class 3). Adaptor not included. |
| Power consumption | LED on: 6.5W LED off: 3.6W |
| MECHANICAL | |
| Material | Aluminum vandal fisheye housing, polycarbonate dome |
| Dimensions | 4.9” x 1.88” (125 x 48mm) |
| Weight | 1.1 lbs (0.5kg) |
| Warranty | 5 year warranty |
