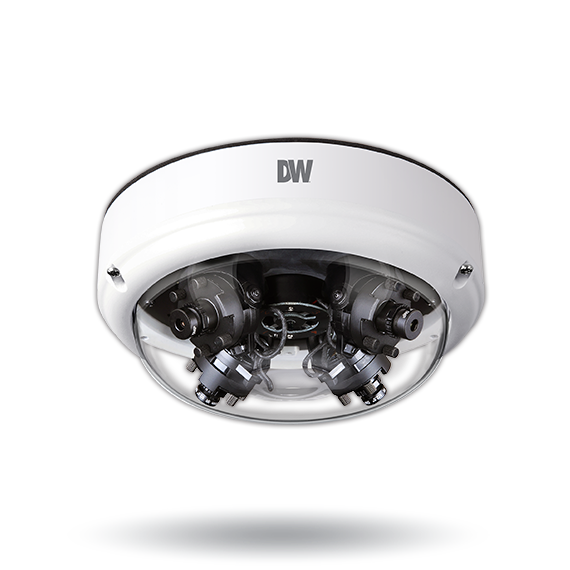

Digital Watchdog - DWC-PVX16W4 - MEGApix Flex 16MP user-configurable multi-sensor vandal dome IP camera with 4 x 4.0mm fixed lens modules
Part number:
DWC-PVX16W4
Price:
MEGApix Flex 16MP multi-sensor configurable panoramic view IP cameras reduce total system cost by providing four 4MP CMOS sensors in one housing and installation. The Flex™ camera produces four video streams at real-time 30fps. Zoom-in for forensic-quality details with DW Spectrum® IPVMS.
Features:
- 16MP 1/3" image sensors at real-time 30fps
- 360° and 180° flexible panoramic view IP camera

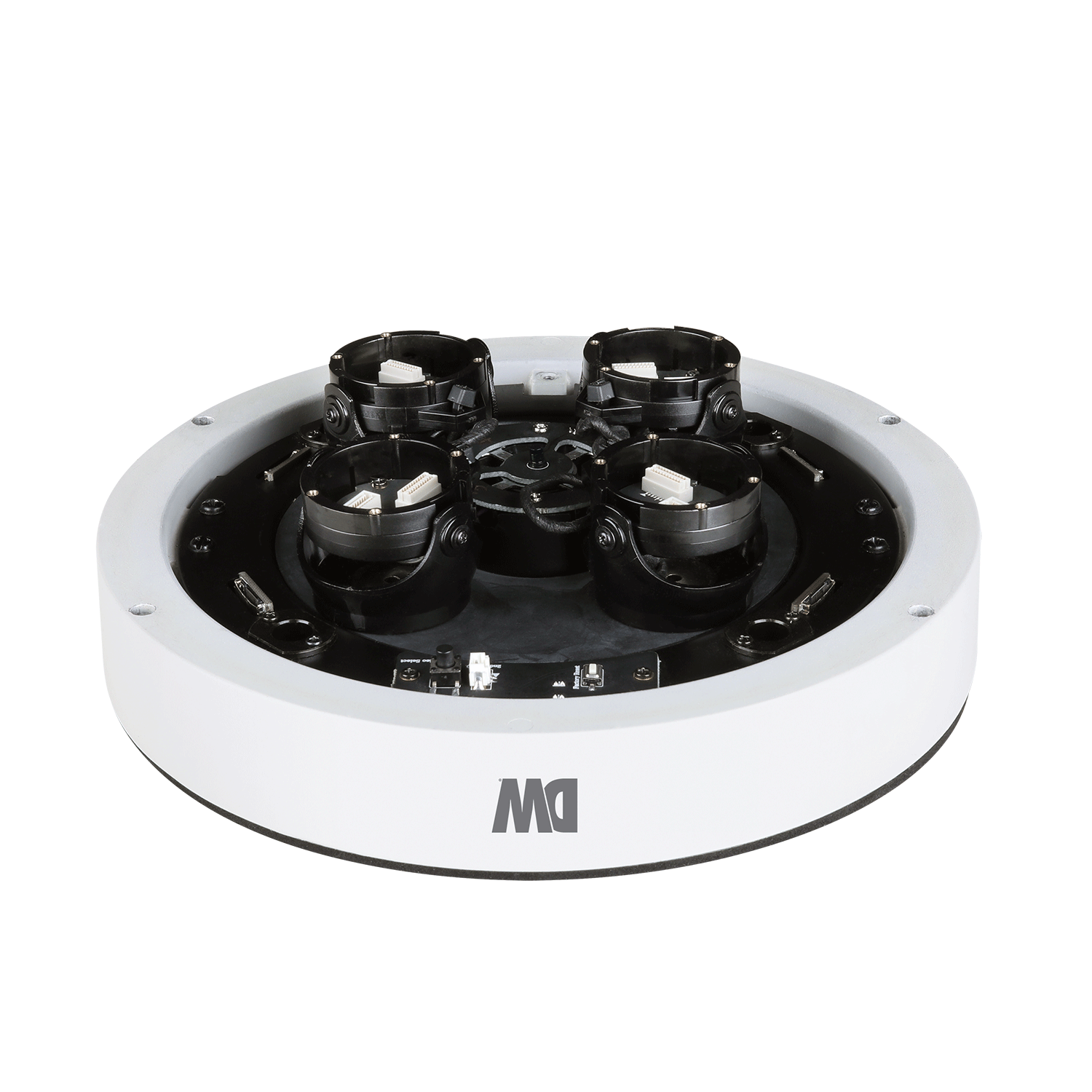

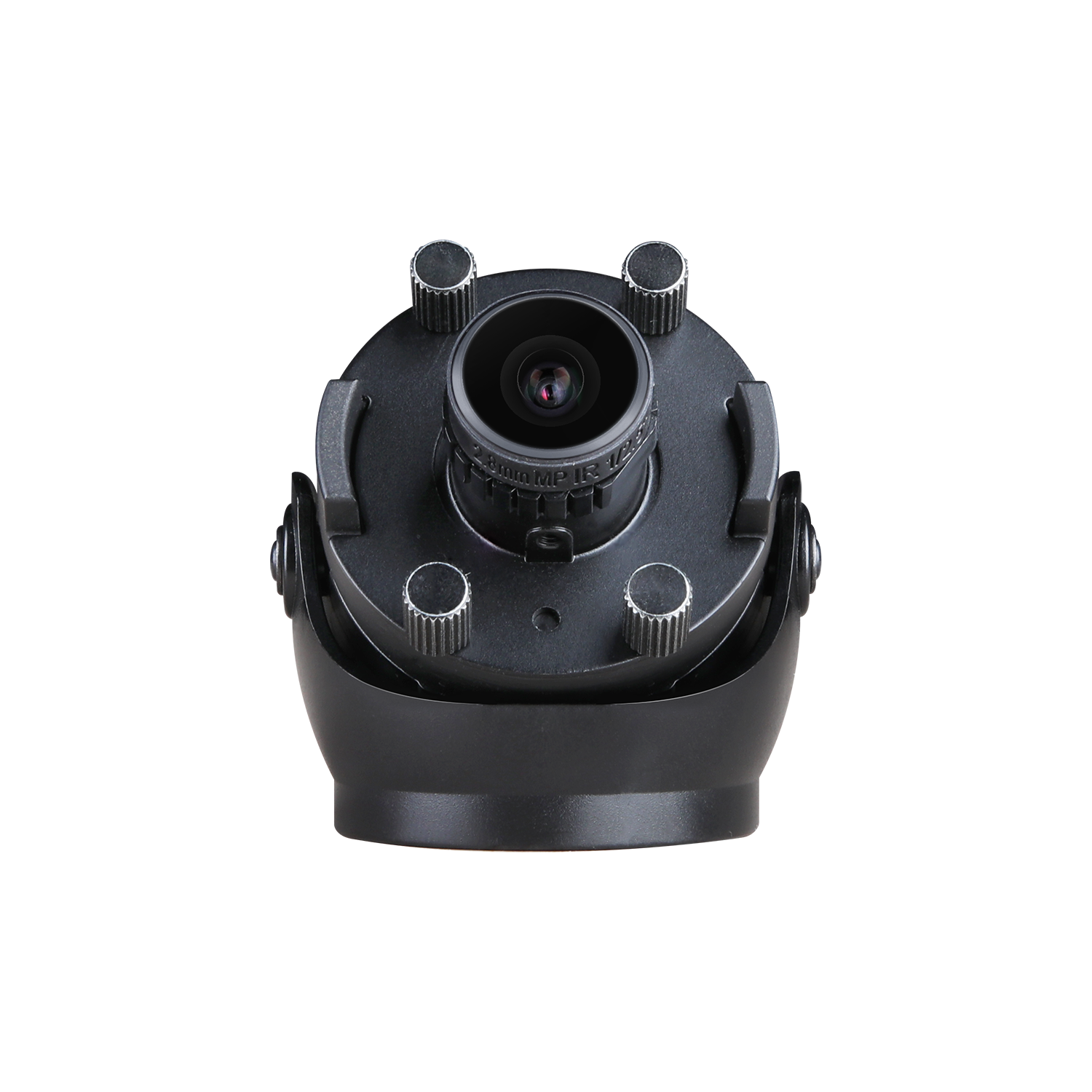

- Available as a complete system with 4x 4.0mm or 4 x 2.8mm lens modules or camera and other lens options sold separately.

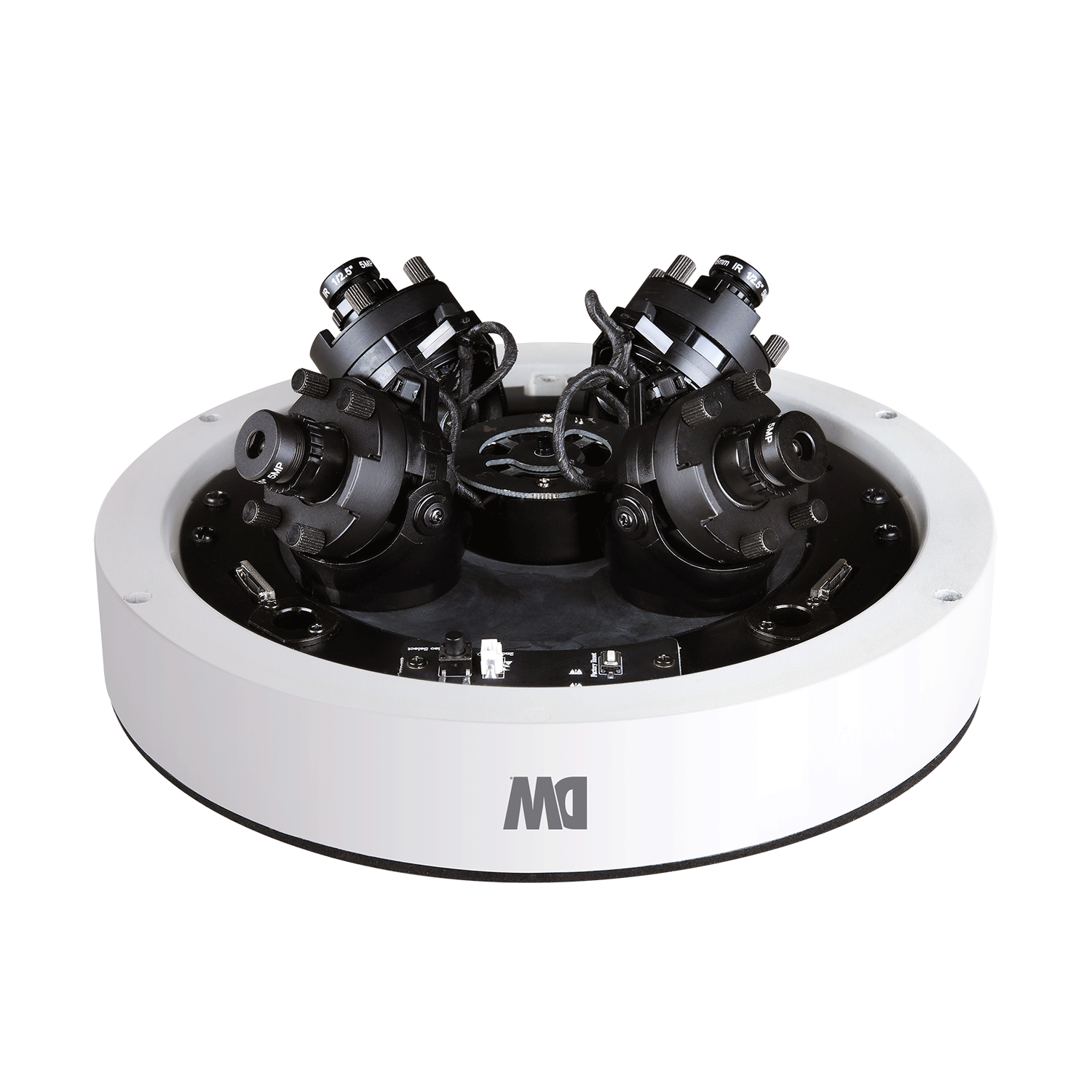

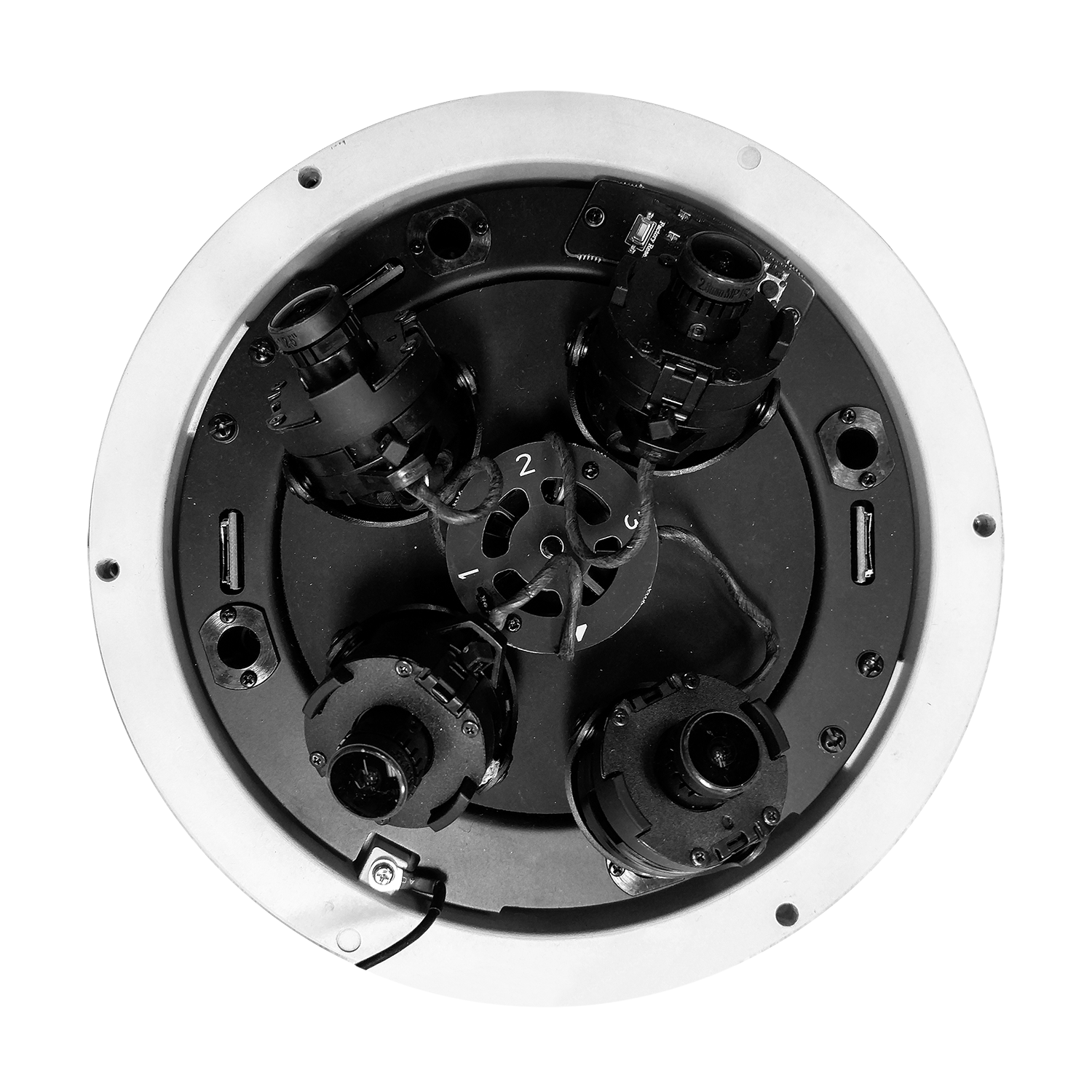

- Four cameras in one installation

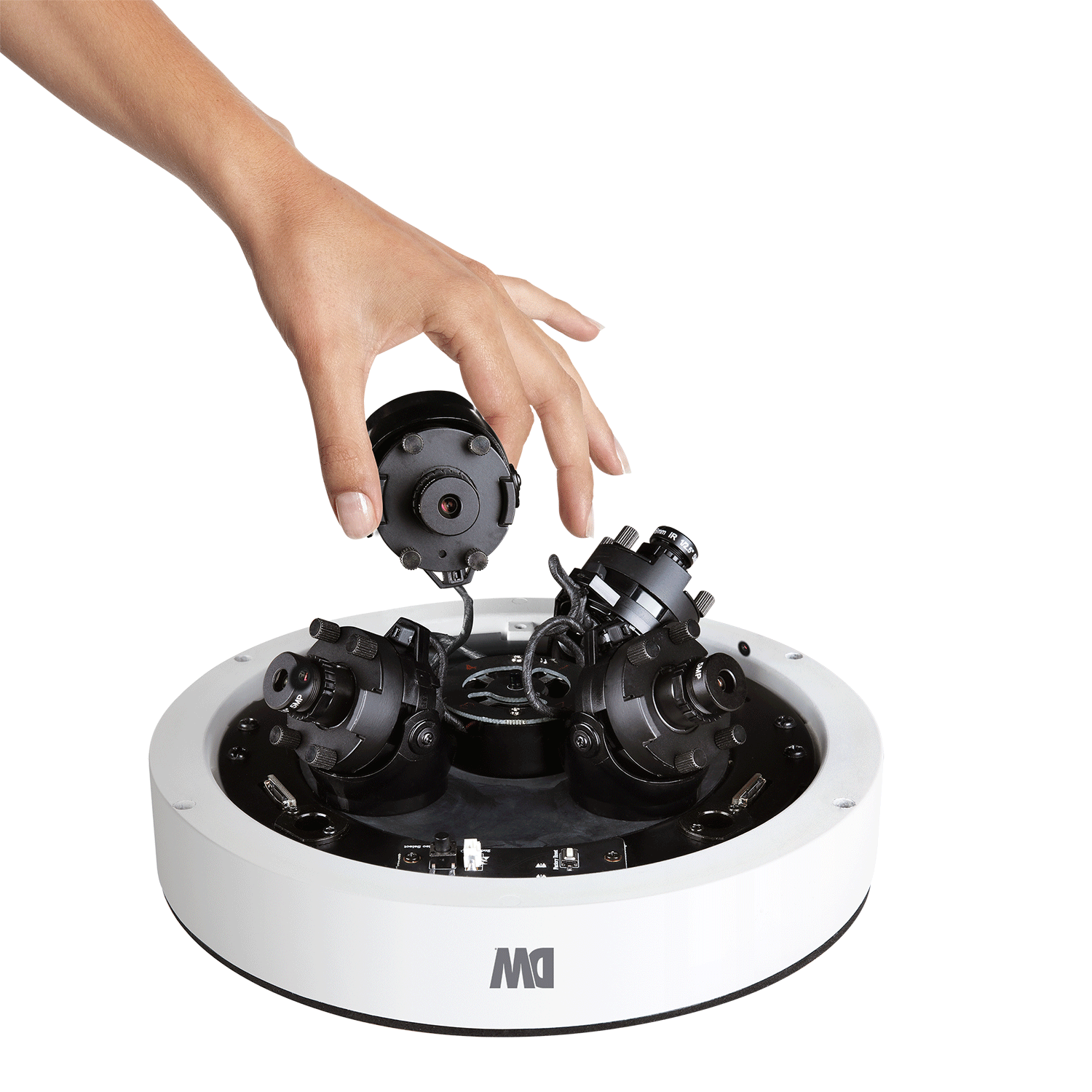

- Flexible sensor positioning with magnets
- True wide dynamic range (WDR)
- PoE injector included
- Dual codecs (H.264, MJPEG) with simultaneous dual-stream
- Two-way audio
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- 4x Micro SD/SDHC/SDXC class 10 card (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- ONVIF conformant, profile S
- PoE class 3 and DC12V
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- 5 year warranty
IMAGE | ||
| Image sensor | 4x 1/3“ CMOS | |
| Total pixels | 4x 2688(H) X 1520(V) | |
| Minimum scene illumination | 0.41 lux (color) | |
| Test video output | Local video output CVBS 1.0V p-p (75 ?), 4:3 aspect ratio | |
| Maximum resolution | 4x 4MP | |
LENS | ||
| Focal length | 4x 2.8mm, 4.0mm, 6.0mm, 8.0mm F2.0 (configurable at the time of order) | |
| Lens type | Fixed lens | |
| Field of view (FoV) | H: 90° (2.8mm) H: 81° (4mm) H: 51° (6mm) H: 39° (8mm) | |
I/O | ||
| Audio in / out | 1/1 | |
| Alarm In/Out | 1/1 | |
| Audio compression | G.711 | |
OPERATIONAL | ||
| Shutter mode | Auto, manual, anti-flicker, slow shutter | |
| Shutter speed | 1/15 ~ 1/32000 | |
| Slow Shutter | 1 ~ 1/5,1/7.5, 1/10 | |
| Auto gain control | Yes | |
| Day / night | Auto, day (color), night (B/W) | |
| Smart DNR™ 3D digital noise reduction | Yes | |
| Wide dynamic range (WDR) | True WDR on, off | |
| Wide dynamic range (WDR) dB | 120dB | |
| White balance | Auto | |
| Mirror and flip | Yes | |
| Privacy zones | 16 programmable privacy masks | |
| Alarm notifications | Notifications via e-mail, FTP, alarm output, SD card recording | |
| Memory Slot | Four (4x) micro SD/SDHC/SDXC class 10 card (card not included) | |
NETWORK | ||
| LAN | 1000base-T(1Gbps) | |
| Video compression type | H.264, MJPEG | |
| Resolution | H.264: 1440p/1080p/720p/VGA/D1/CIF MJPEG: 800x600/VGA/768 x 432/D1/CIF. (DW-PVX16W uses 4 channels in the VMAX IP Plus recorder, one per sensor). | |
| Frame rate | Up to 30fps at all resolutions | |
| Video bitrate | 100Kbps ~ 10Mbps, multi-rate for preview and recording | |
| Bitrate control | Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) | |
| Streaming capability | Triple-stream at different rates and resolutions | |
| IP | IPv4 | |
| Protocol | ONVIF, TCP/IP, UDP, autoIP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3 (MIB-2) | |
| Security | HTTPS(TLS), IP filtering, 802.1x, Digest Authentication (ID/PW) | |
| ONVIF conformance | Yes | |
| Web viewer | OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® | |
| Video management software | DW Spectrum® IPVMS | |
ENVIRONMENTAL | ||
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) | |
| Operating humidity | 10–90% RH (non–condensing) | |
| IP rating | IP66-rated | |
| Other certifications | FCC, CE, ROHS  | |
ELECTRICAL | ||
| Power requirement | DC12V, PoE+ IEEE 802.3at class 4 (High power PoE injector included) | |
| Power consumption | 18W | |
MECHANICAL | ||
| Material | Aluminum vandal housing, polycarbonate dome | |
| Dimensions | 7.48" x 3.54" Inch (190 x 90 mm) | |
| Weight | 4.4 lbs (2.0 kg) | |
