Digital Watchdog - DWC-PVX16WW - MEGApix Flex 16MP multi-sensor vandal dome IP camera with fixed lens options
Part number:
DWC-PVX16WW
Price:
Easy 3-axis gimbal tilt and rotation
Each sensor has a 3-axis gimbal to fine-tune the Field of View (FoV) configuration, with endless 360° rotation and up to 60° tilting per sensor.
Flexible sensor positioning with magnets
Users can easily place each of the four sensors independently in any configuration around the camera's magnetic base. Use one installation to monitor a hallway or to produce a 270° view at building corners and large rooms.

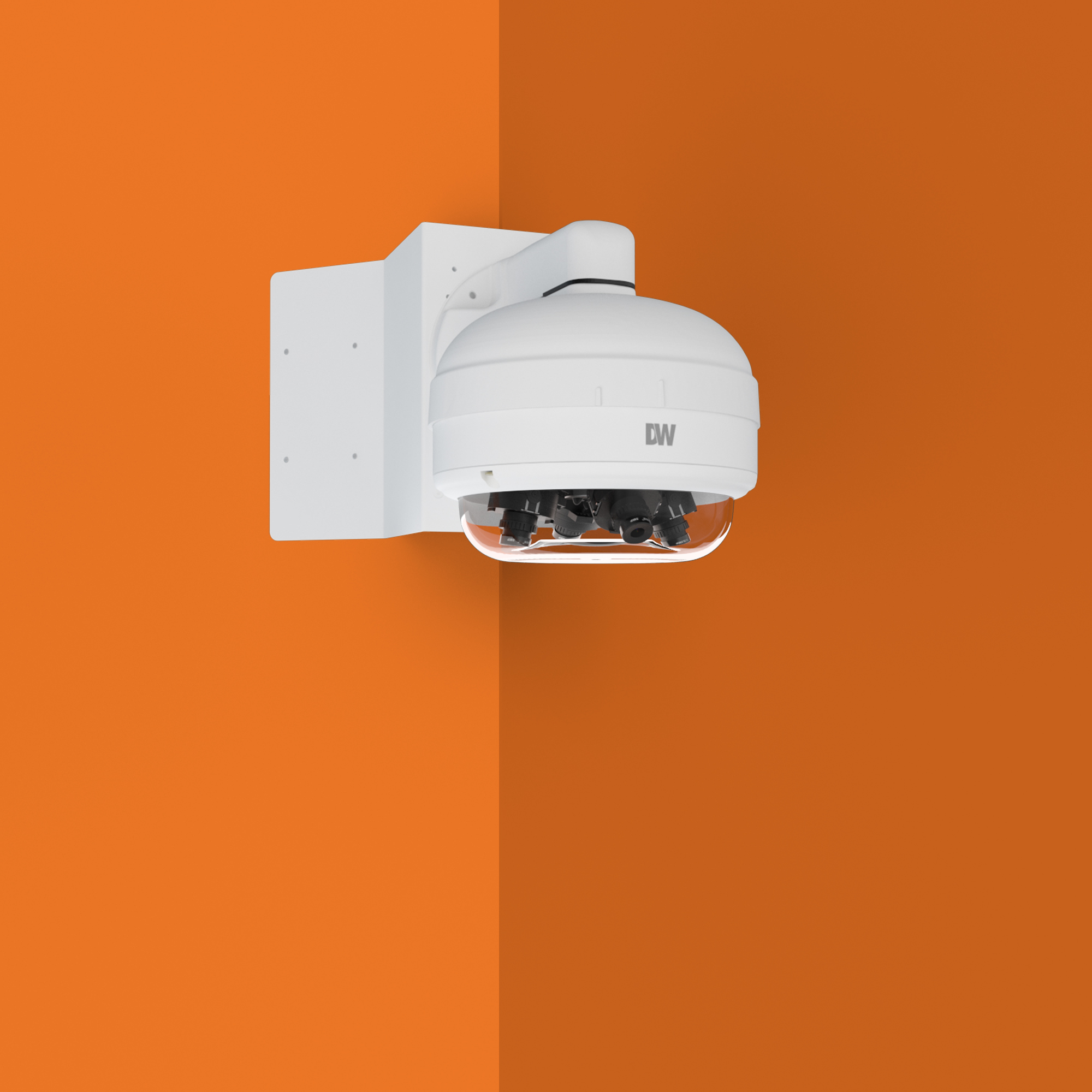

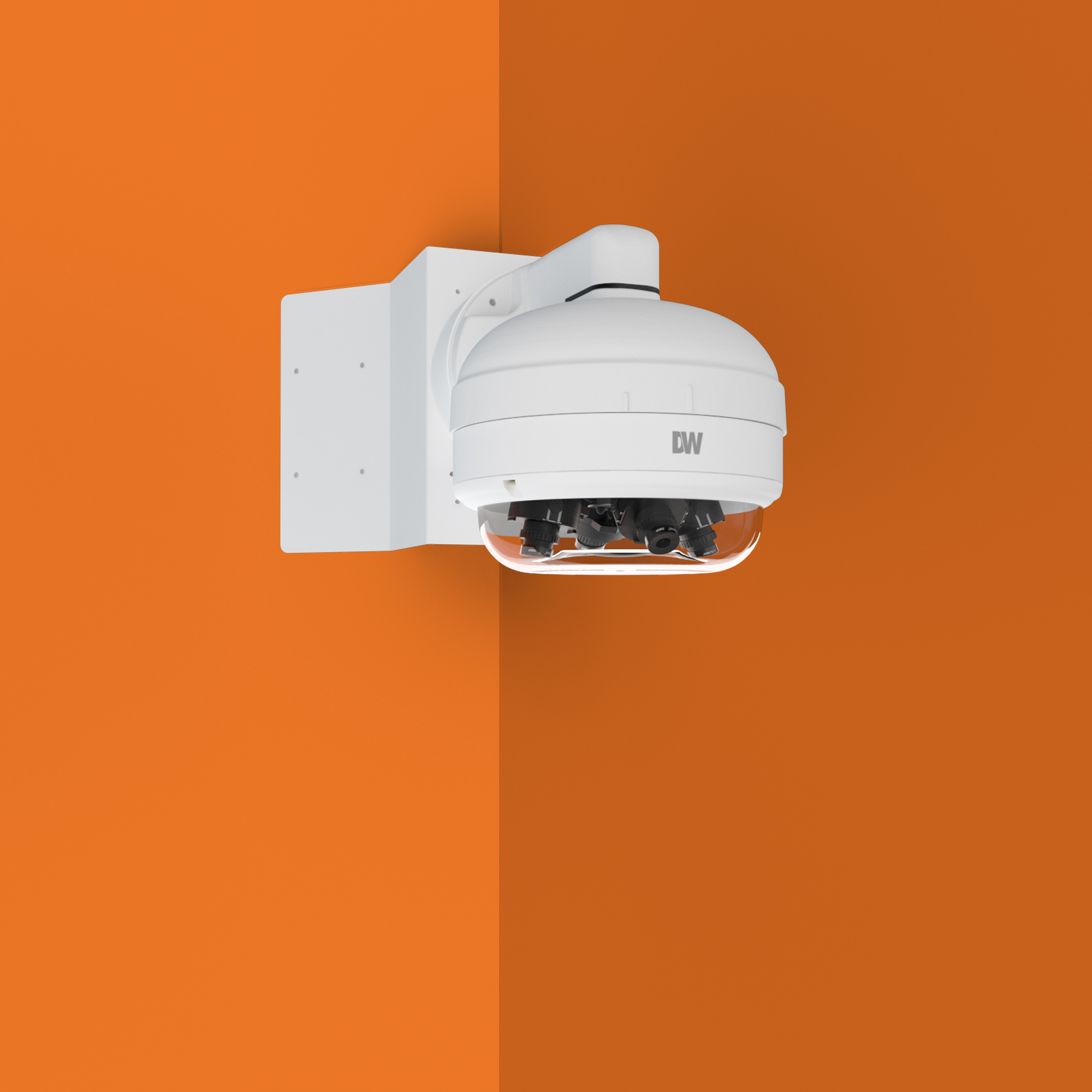

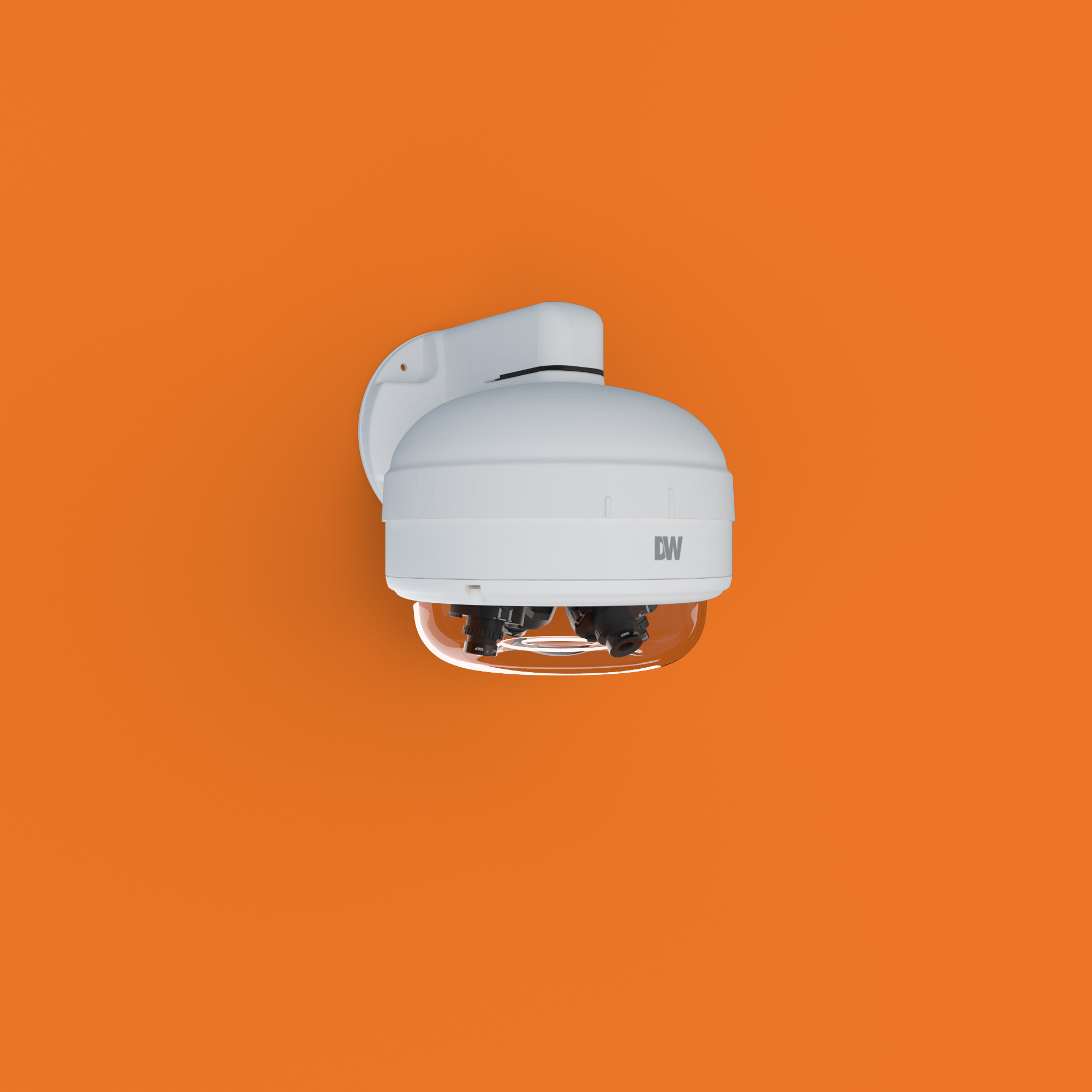

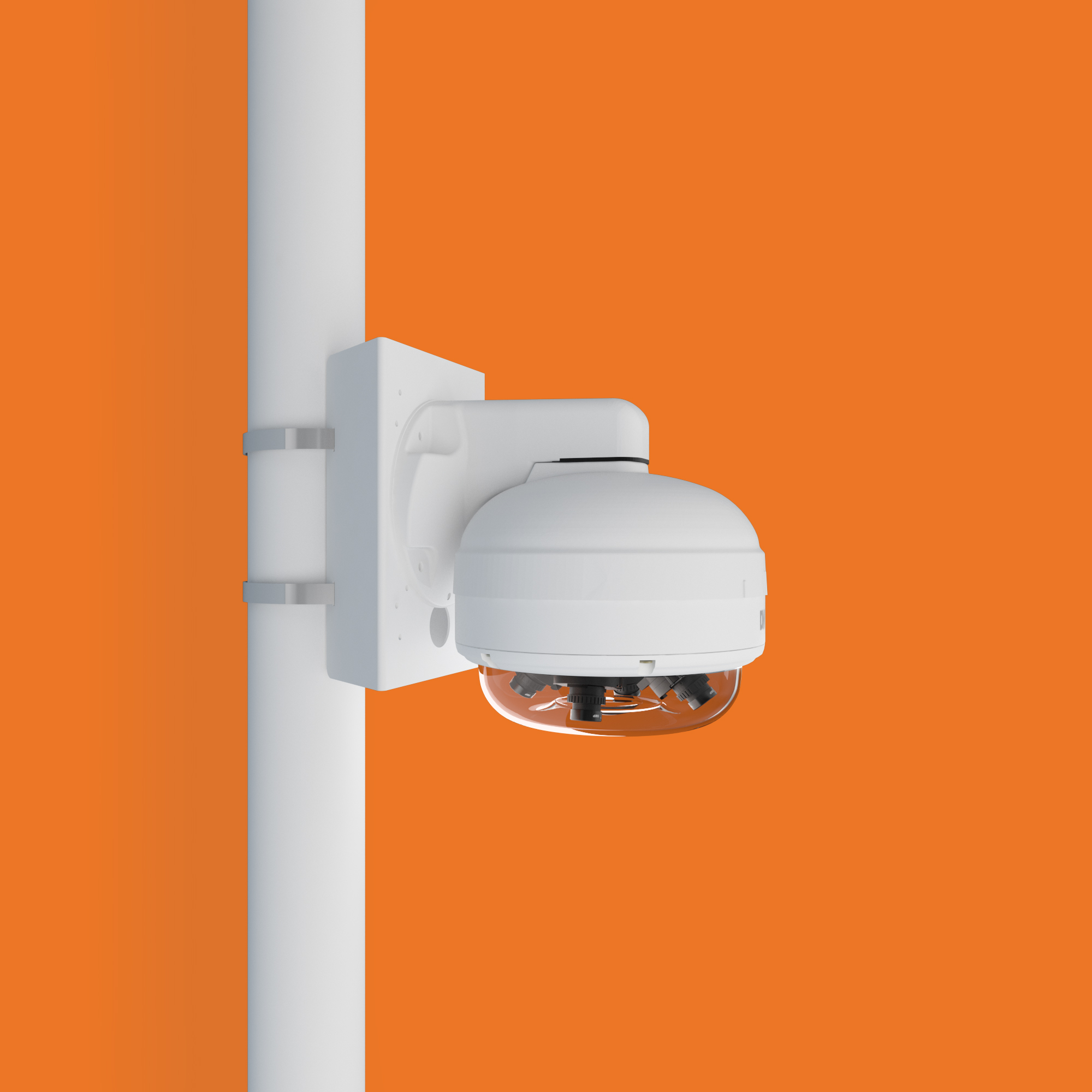

Flex camera typical installations
Flex cameras can be personalized to match any application and any field of view (FoV) from a 180° panoramic view installation to a full 360° hemispheric FoV, all with a single camera and max flexibility.
Megapixel resolution in multi-sensor IP cameras
DW’s technology delivers crystal clear images in any resolution. Higher resolution offers forensic details with zooming into the camera’s field of view.
Features
- 16MP 1/3" image sensors at real-time 30fps
- 360° and 180° flexible panoramic view IP camera
- Available as a complete system with 4x 2.8mm or 4x 4.0mm lens modules or camera and other lens options sold separately.
- Four cameras in one installation
- Flexible sensor positioning with magnets
- True wide dynamic range (WDR)
- PoE injector included
- Dual codecs (H.264, MJPEG) with simultaneous dual-stream
- Two-way audio
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- 4x Micro SD/SDHC/SDXC class 10 card (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- ONVIF conformant, profile S
- PoE class 3 and DC12V
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- 5 year warranty
| Image | |
|---|---|
| Image sensor | 4MP 1/3" CMOS sensor (x4) |
| Maximum resolution | 16MP |
| Minimum Scene Illumination in color | 0.41 lux (color) |
| Test Video Output | Local video output CVBS 1.0V p-p (75Ω), 16:9 aspect ratio |
| Total Pixels | |
| Lens | |
| Focal Length | 2.8mm (x4) (DWC-PVX16W2W), 4.0mm (x4) (DWC-PVX16W4W), 2.8mm, 4.0mm, 6.0mm combinations (x4) (DWC-PVX16WW) |
| Horizontal Field of View (HFOV) | 81° (x4) (DWC-PVX16W4W), 90° (x4) (DWC-PVX16W2W) |
| Lens Type | Fixed Lens |
| I/O | |
| Audio compression | G.711 |
| Audio frequency response | 50Hz ~ 10KHz |
| I/O Alarm in/out | 1 input, 1 output |
| I/O Audio in/out | 1 input, 1 output |
| Operational | |
| 3D digital noise reduction | Smart DNR 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Day and night | Auto day/night, Day (color), Night (B/W) |
| De-fog | Yes |
| Memory slot | 4x Micro SD/SDHC/SDXC class 10 cards (cards not included), Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Alarm output activation, Email, FTP server, SD card recording |
| Privacy Zones | 16 programmable privacy masks |
| Shutter Mode | Auto, Manual |
| Shutter Speed | 1/15 ~ 1/32000 |
| Slow Shutter Speed | Off, x10, x2, x3, x5, x6, x7.5 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) |
| IP | IPv4 |
| LAN | 1000Base-T (1Gbps) |
| Network resolution | Triple-stream at different rates and resolutions, Up to 10,752 (H) x 1520 (V) total pixels |
| Network Web Viewer | Google Chrome browser, Linux OS, Mac OS, Microsoft Edge browser, Mozilla Firefox browser, Windows OS |
| Protocol | 802.1x, DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) |
| Security | 802.1x, Digest authemtication (ID/PW), HTTPS (TLS), IP filtering, Multi-user authority |
| Stream Speed | Up to 30fps at all resolutions |
| Video Bitrate | 100Kbps~10Mbps, multi-rate for preview and recording |
| Video Compression Type | H.264, MJPEG |
| Video Management Software | Any ONVIF conformant CMS, DW Spectrum IPVMS, ExacqVision Technologies, Milestone Systems |
| Environmental | |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Environmental Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | 7.55" x 3.3" (192 x 84 mm) |
| Camera Weight | 4.40 lbs (2kg) |
| Features | Cleanview |
| Housing | Panoramic, Vandal Dome |
| Housing Color | White |
| IP rating | Weather Resistant (IP66) |
| Materials | Aluminum die-casting |
| Electrical | |
| American wire gauge (AWG) | Cable type #18 |
| Power Consumption | PoE: max 18.0W |
| Power Requirements | High power PoE injector included, PoE |
| General | |
| Warranty | 5 Year Warranty (DWC-PVX16WW) |
