Digital Watchdog - DWC-PVX20WATW - MEGApix 20MP multi-sensor vandal dome IP camera with vari-focal lenses with IVA license
Part number:
DWC-PVX20WATW
Price:

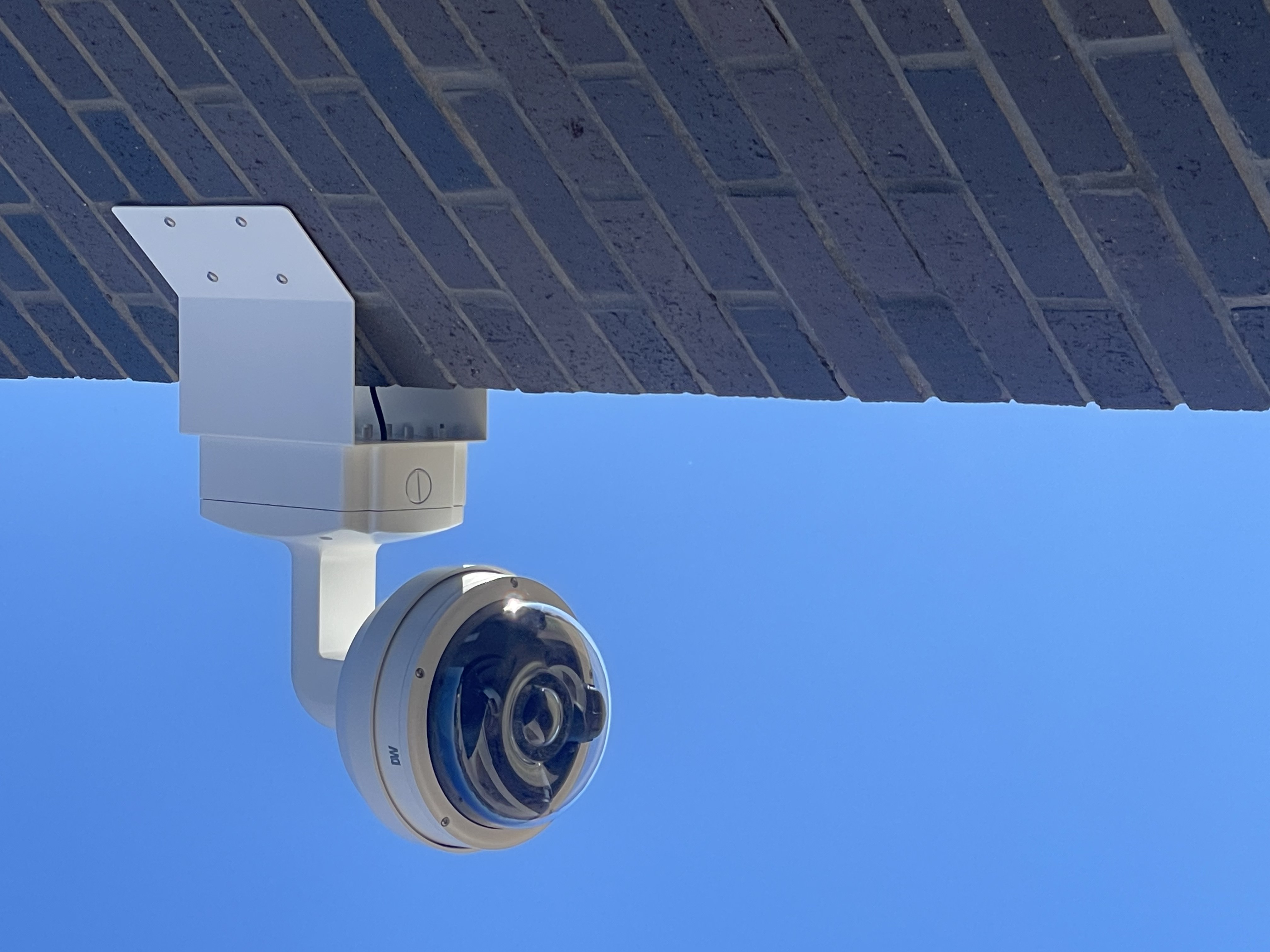

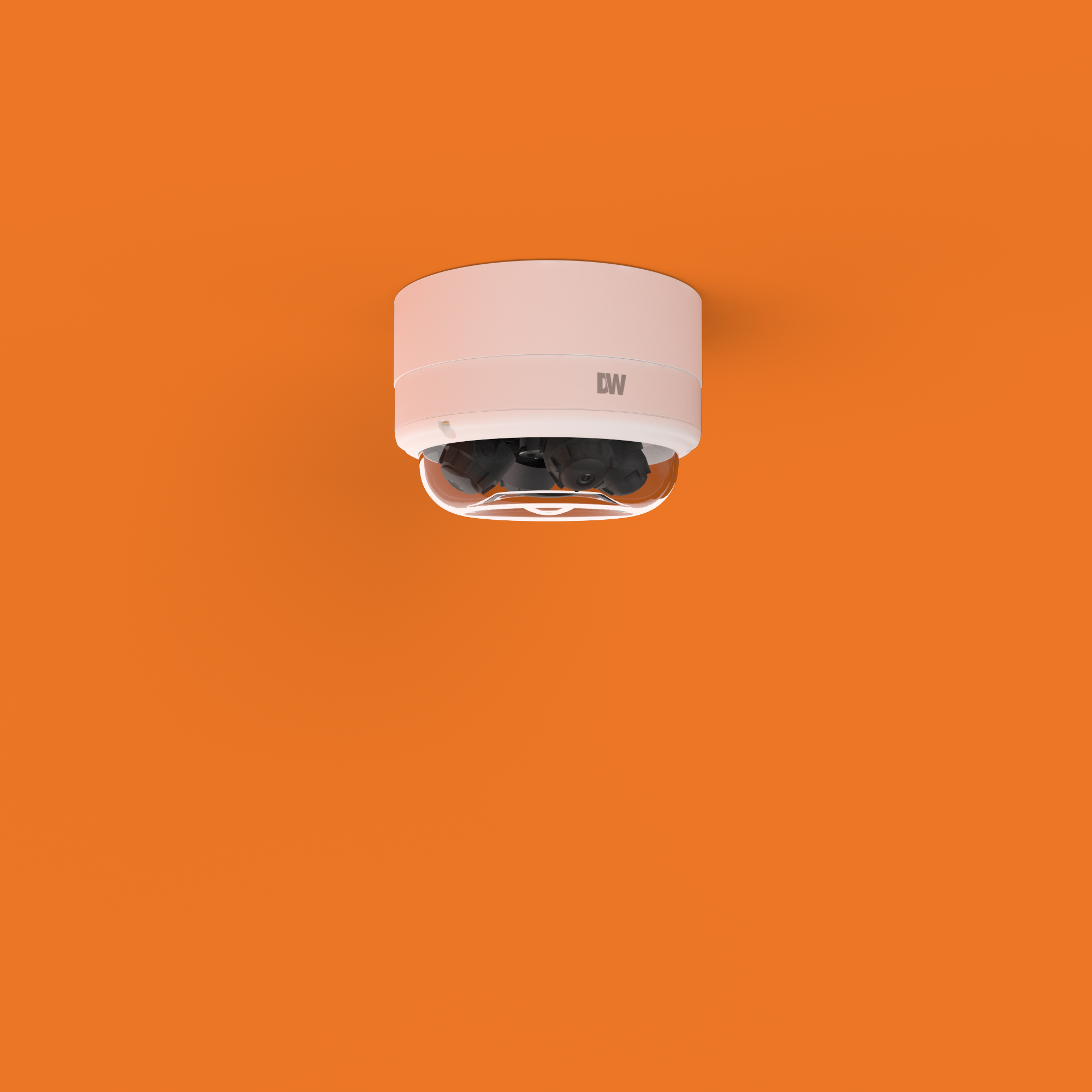

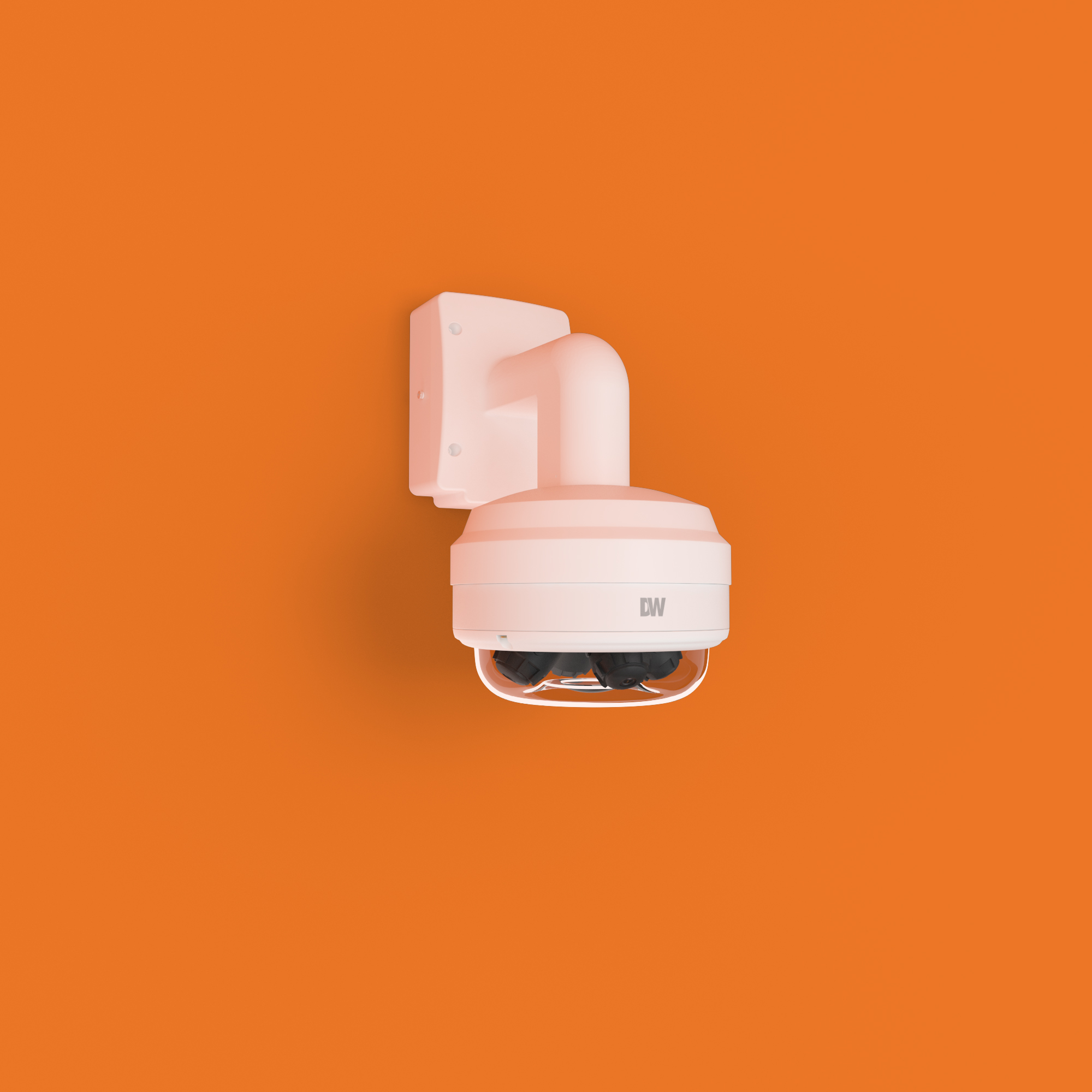

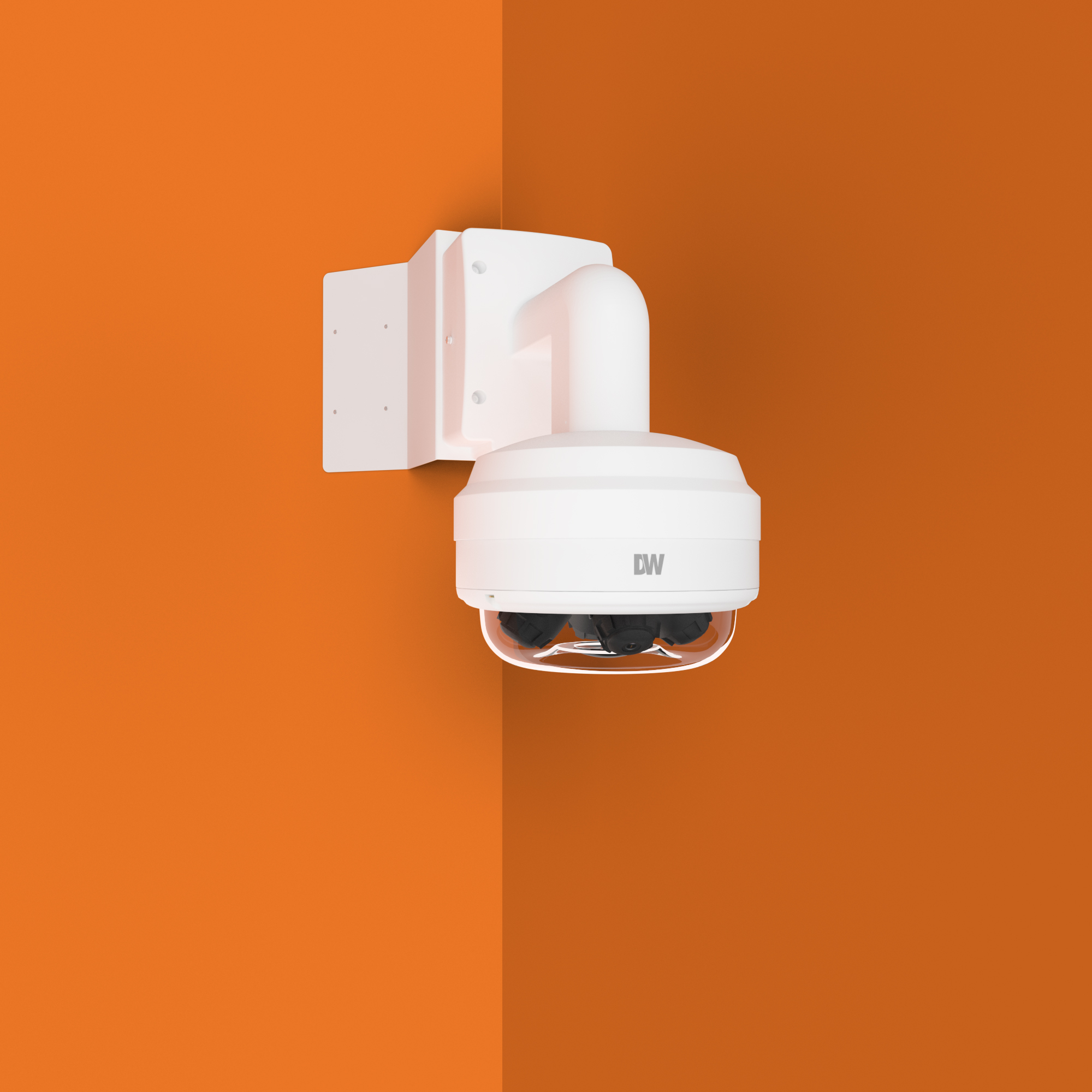

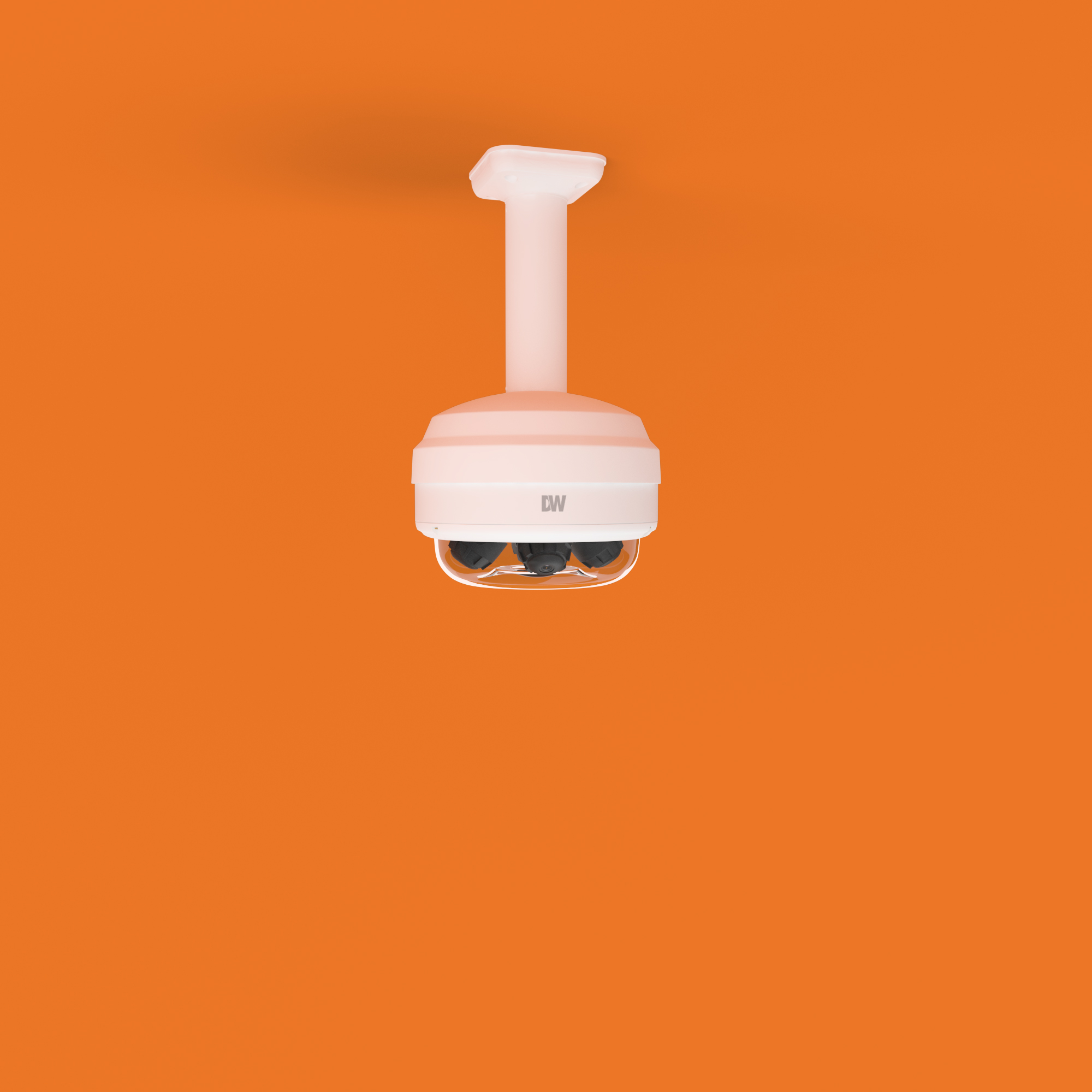

Versatile installation
A single Flex camera can replace multiple single-sensor cameras with great ROI. With a variety of lens arrangements and positioning, the camera can enhance any application and cover any area needed with no blind spots.
Magnetic track flexibility

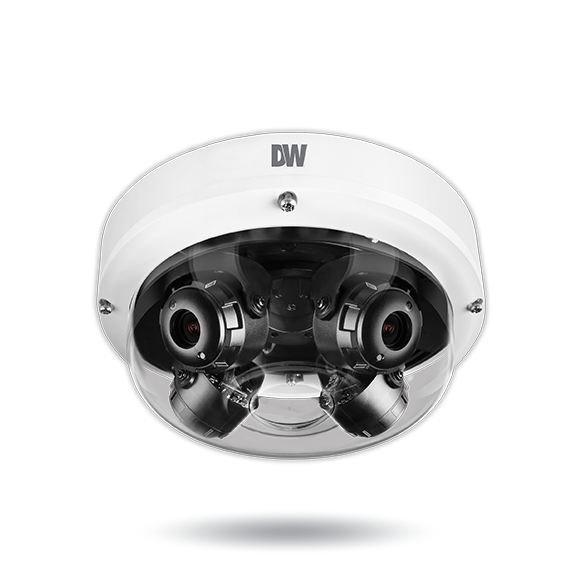

The camera's unique magnetic track allows four individual lens modules to be placed in almost any possible configuration. A fifth, vertical, top view position in the center of the camera offers complete coverage and field of view control.
4x vari-focal lenses with motorized zoom and auto-focus
Adjust the camera’s four (4) individual vari-focal lens modules to achieve the ideal field of view based on your unique needs.
Easy camera installation
The camera includes a simple double-lock mechanizsm between the camera and mounting accessory, making installation quicker, simpler and faster.
Wide tilting angle
Each lens module has a total tilt angle of up to 80°, thanks to the modules' aspherical hemispheric surface. This reduces blind spots in the camera's foreground.
Star-Light Plus color in darkness technology
Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.
IVA Analytics
MEGApix IVA cameras include a base package of Intelligent Video Analytics detection capabilities already activated on the camera and ready for deployment.
Features
- 4x 5MP sensors (20MP) at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent Video Analytics (IVA) with extended features (IVA+)
- Seamless integration and control of IVA rules with DW Spectrum IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 4x vari-focal p-iris lens with motorized zoom and autofocus for complete remote lens control and focused image any time
- 3-axis gimbal for wide range lens positioning
- 360° and 180° flexible panoramic view IP camera
- Four cameras in one installation
- Flexible sensor positioning on a magnetic base
- True Wide Dynamic Range (WDR) for clear images in challenging light
- Simultaneous streaming and multiple codec options for smart bandwidth management
- Smart DNR 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
- Two-way audio for direct communication between the monitoring station and the camera's location
- Local SD card slot for local recording in case of network loss
- Alarm sensor input and relay output for access control integration
- Web server built-in for easy camera management from any browser
- High-power PoE and DC12V for single cable simplified installation (PoE injector included)
- NDAA compliant for federal and government projects
- IP67- and IK10-rated camera housing built to last
- 5 year warranty
| Image | |
|---|---|
| Image sensor | 5MP 1/2.8" CMOS sensor (x4) |
| Maximum resolution | 20MP |
| Minimum Scene Illumination in color | 0.05 lux (color), 0.1 lux (B/W) |
| Test Video Output | Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio |
| Total Pixels | 2592 (H) × 1944 (V) (x4) |
| Lens | |
| Focal Length | 2.8mm ~ 8.0mm (x4) |
| Horizontal Field of View (HFOV) | 4x 51° ~ 93° |
| IR Distance | NA |
| Lens Type | Vari-focal Lens |
| Vertical Field of View (VFOV) | 39°~68° (x4) |
| I/O | |
| Audio compression | G.711 |
| I/O Alarm in/out | 1 input, 1 output |
| I/O Audio in/out | *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended., 1 input (1.0Vms, 3K ohm), 1 output |
| Intelligent Video Analytics | |
| IVA license | Intrusion, line crossing, counting line, loitering, enter, exit, tamper (DWC-PVX20WATW) |
| IVA+ license | Logical rules, object removed, tailgating, direction, stopped, appear, disappear, object left (DWC-PPVX20WATW) |
| Operational | |
| 3D digital noise reduction | Smart DNR 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Day and night | Auto day/night, Day (color), Night (B/W) |
| De-fog | Yes |
| Memory slot | 4x Micro SD/SDHC/SDXC class 10 cards (cards not included), Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Alarm output activation, Email, FTP server, SD card recording |
| Privacy Zones | 16 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Anti-Flicker, Auto, Manual, Slow Shutter |
| Shutter Speed | 1/15 ~ 1/32000 |
| Slow Shutter Speed | Off, x10, x2, x3, x5, x6, x7.5 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| IP | IPv4 |
| LAN | 1000Base-T (1Gbps) |
| Network resolution | 4. H.264: 2592x1944 2560x1440 1920x1080 704x576 704x480 640x480 640x360 352x288 352x240, 4x MJPEG: 1920x1080, 1280x720, 800x600, 768x432, 704x576, 704x480, 640x480, 640x360, 352x288, 352x240 |
| Network Web Viewer | Google Chrome browser, Linux OS, Mac OS, Microsoft Edge browser, Mozilla Firefox browser, Safari browser, Windows OS |
| Protocol | DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) |
| Security | 802.1x, Digest authemtication (ID/PW), HTTPS (TLS), IP filtering |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 100Kbps~10Mbps, multi-rate for preview and recording |
| Video Compression Type | H.264, H.265, MJPEG |
| Video Management Software | Any ONVIF conformant CMS, DW Spectrum IPVMS, ExacqVision Technologies, Milestone Systems |
| Environmental | |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Environmental Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Mounting Accessories (Required/Optional) | Required. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | 8.26" x 3.61" (210 x 91.8 mm) |
| Camera Weight | 4.18 lbs (1.9kg) |
| Housing | Panoramic, Vandal Dome |
| Housing Color | White |
| IK rating | IK10 Rated |
| IP rating | Weather Resistant (IP67) |
| Materials | Aluminum die-casting |
| Electrical | |
| American wire gauge (AWG) | Cable type #18 |
| Power Consumption | DC12V: max 28W, 2.33A, PoE: max 28W, 2.583A |
| Power Requirements | High power PoE injector included, PoE |
| General | |
| Warranty | 5 Year Warranty |
