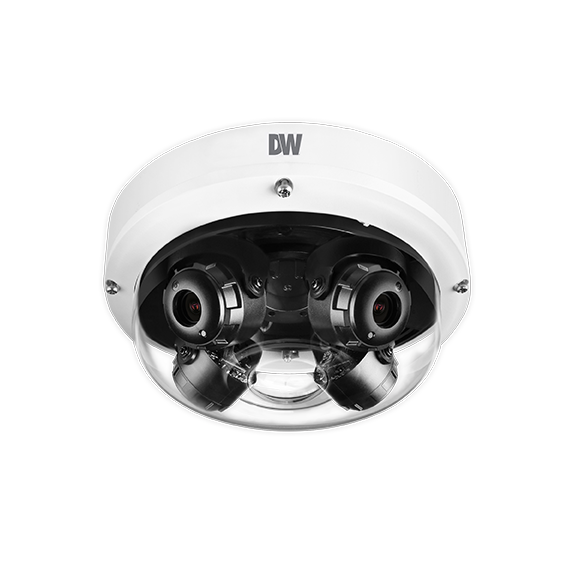

Digital Watchdog - DWC-PVX20WATX - 20 MP Network IP Indoor/Outdoor IR Dome Camera with 2.8-8.0mm Lens
• Panoramic Coverage: Capture expansive areas with four 5MP lenses delivering seamless 180° or 360° views—ideal for large spaces needing full situational awareness.
• Ultra-High Resolution: Enjoy 20MP total resolution for detailed surveillance, enabling precise identification and forensic analysis.
• Motorized Zoom & Autofocus: Each 2.8–8.0mm lens features motorized zoom and autofocus, enabling flexible setup and remote adjustments.
• Low-Light Performance: Star-Light Plus™ technology ensures vivid color imaging even in near-total darkness, reducing the need for external lighting.
• True Wide Dynamic Range (WDR): Maintain image clarity in challenging lighting conditions with True WDR, balancing bright and dark areas effectively.
• Cost-Efficient Installation: Replace multiple single-sensor cameras with one multi-sensor unit, reducing installation complexity and infrastructure costs.

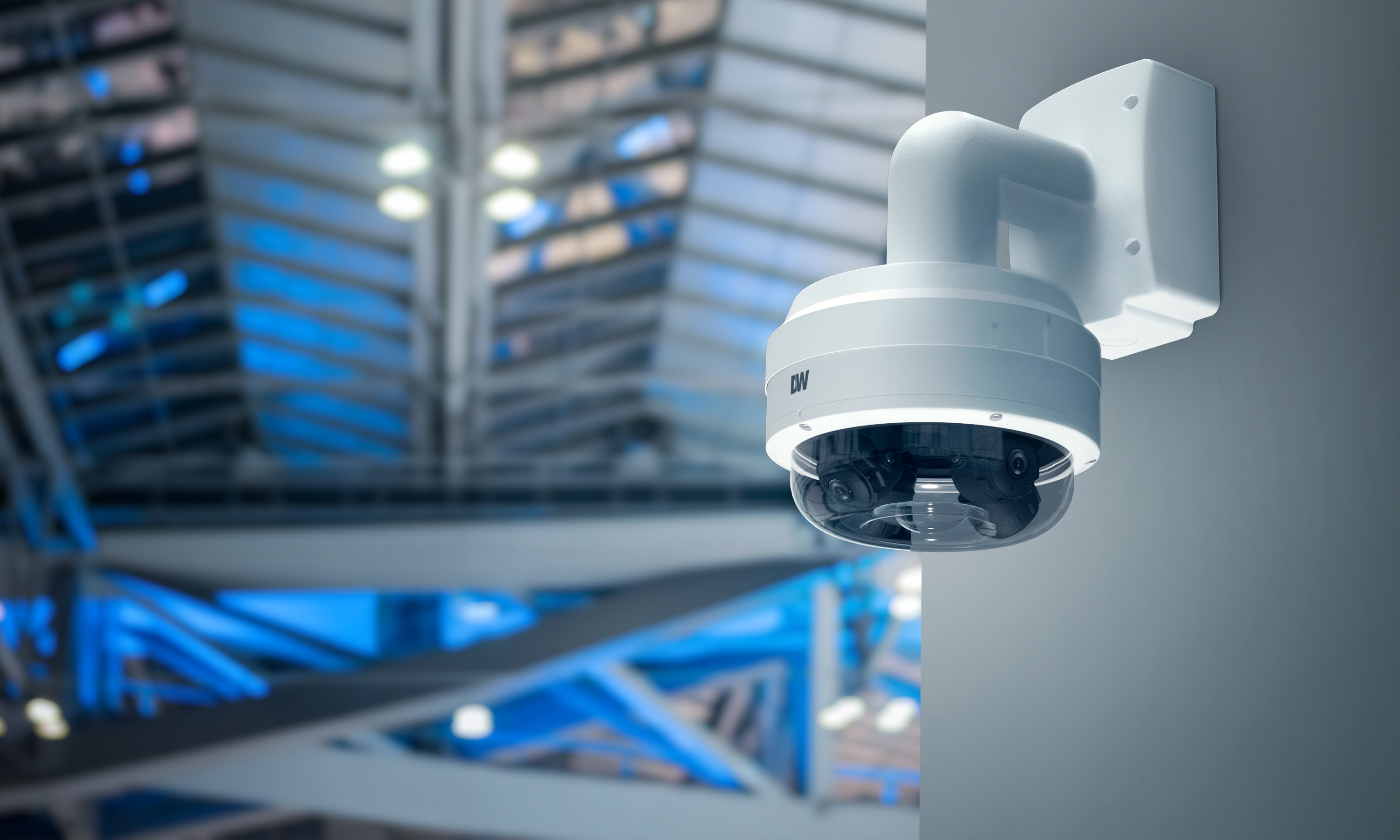

• Flexible Deployment Options: Supports wall, ceiling, and pendant mounting, offering versatile installation for various environments and layouts.
• Rugged & Weatherproof Design: IP67 and IK10-rated housing protects against harsh weather and vandalism, ensuring reliable outdoor performance.
• DW Spectrum® Ready: Fully compatible with DW Spectrum® for intuitive video management, remote access, and scalable deployment.
• NDAA/TAA Compliance: Meets federal procurement standards, making it suitable for government and critical infrastructure deployments.
| Image | |
| Image sensor | 5MP 1/2.8" CMOS sensor (x4) |
| Maximum resolution | 20MP |
| Minimum Scene Illumination in color | 0.05 lux (color) 0.1 lux (B/W) |
| Test Video Output | Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio |
| Total Pixels | 2592 (H) × 1944 (V) (x4) |
| Lens | |
| Focal Length | 2.8mm ~ 8.0mm (x4) |
| Horizontal Field of View (HFOV) | 4x 51° ~ 93° |
| Illumination Distance | NA |
| Lens Type | Vari-focal Lens |
| Vertical Field of View (VFOV) | 39°~68° (x4) |
| I/O | |
| Audio compression | G.711 |
| I/O Alarm in/out | 1 input 1 output |
| I/O Audio in/out | *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended. 1 input (1.0Vms, 3K ohm) 1 output |
| Intelligent Video Analytics | |
| IVA license | Intrusion, line crossing, counting line, loitering, enter, exit, tamper, object removed, tailgating, direction, stopped, appear, disappear, object left, logical rules. |
| Operational | |
| 3D digital noise reduction | Smart DNR™ 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Day and night | Auto day/night Day (color) Night (B/W) |
| De-fog | Yes |
| Memory slot | 4x Micro SD/SDHC/SDXC class 10 cards (cards not included) Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Alarm output activation FTP server SD card recording |
| Privacy Zones | 16 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Anti-Flicker Auto Manual Slow Shutter |
| Shutter Speed | 1/15 ~ 1/32000 |
| Slow Shutter Speed | Off x10 x2 x3 x5 x6 x7.5 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| IP | IPv4 |
| LAN | 1000Base-T (1Gbps) |
| Network resolution | 4x H.264: 2592x1944, 2560x1440, 1920x1080, 704x576, 704x480, 640x480, 640x360, 352x288, 352x240 4x MJPEG: 1920x1080, 1280x720, 800x600, 768x432, 704x576, 704x480, 640x480, 640x360, 352x288, 352x240 |
| Network Web Viewer | Google Chrome® browser Linux® OS Mac® OS Microsoft Edge® browser Mozilla Firefox® browser Safari® browser Windows OS |
| Protocol | DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) |
| Security | 802.1x Digest authentication (ID/PW) HTTPS (TLS) IP filtering |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 100Kbps~10Mbps, multi-rate for preview and recording |
| Video Compression Type | H.264 H.265 MJPEG |
| Video Management Software | Any ONVIF conformant CMS DW Spectrum® ExacqVision Technologies Milestone Systems |
| Environmental | |
| Compliance | CE FCC NDAA Comp ONVIF TAA Compliance UL Listing |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Environmental Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Mounting Accessories (Required/Optional) | Required. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | 8.26" x 3.61" (210 x 91.8 mm) |
| Camera Weight | 4.18 lbs (1.9kg) |
| Housing | Panoramic Vandal Dome |
| Housing Color | White |
| IK rating | IK10 Rated |
| IP rating | Weather Resistant (IP67) |
| Materials | Aluminum die-casting Polycarbonate Dome |
| Electrical | |
| American wire gauge (AWG) | 5M Cable type #18 |
| Power Consumption | DC12V: max 28W, 2.33A PoE: max 28W, 2.583A |
| Power Requirements | High power PoE injector included PoE |
| General | |
| Warranty | 5 Year Warranty |
The DWC-PVX20WATX is a rugged, 20-megapixel MEGApix® Flex vandal dome IP camera with four 5-megapixel motorised lenses for flexible 180°/360° views at 30 fps. Star-Light Plus™ technology delivers vivid colour images in near darkness, while True WDR and Smart DNR™ ensure clarity in challenging lighting conditions. It is NDAA/TAA compliant and IP67/IK10 rated, and is packed with intelligent analytics, making it ideal for federal, commercial and critical infrastructure surveillance.
