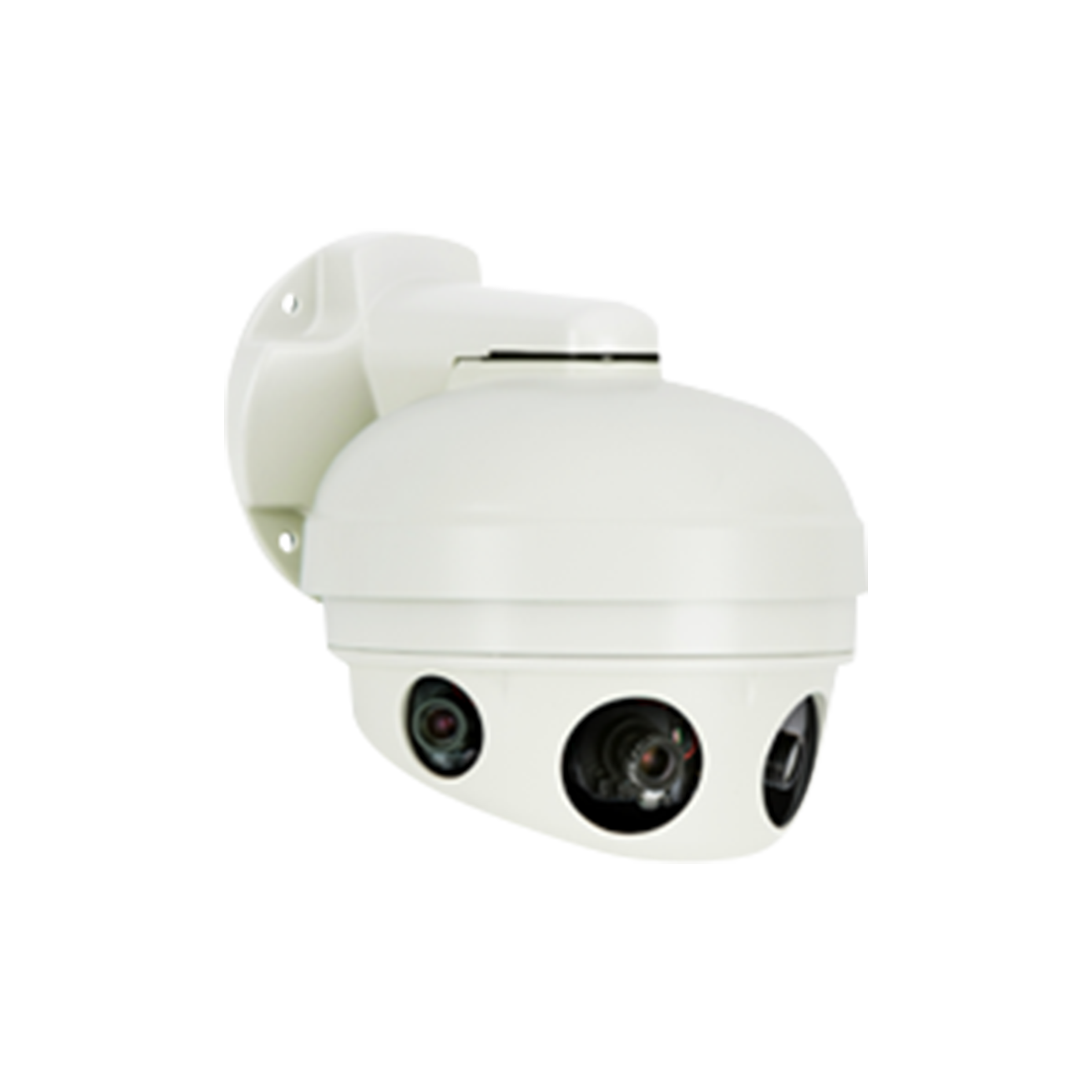

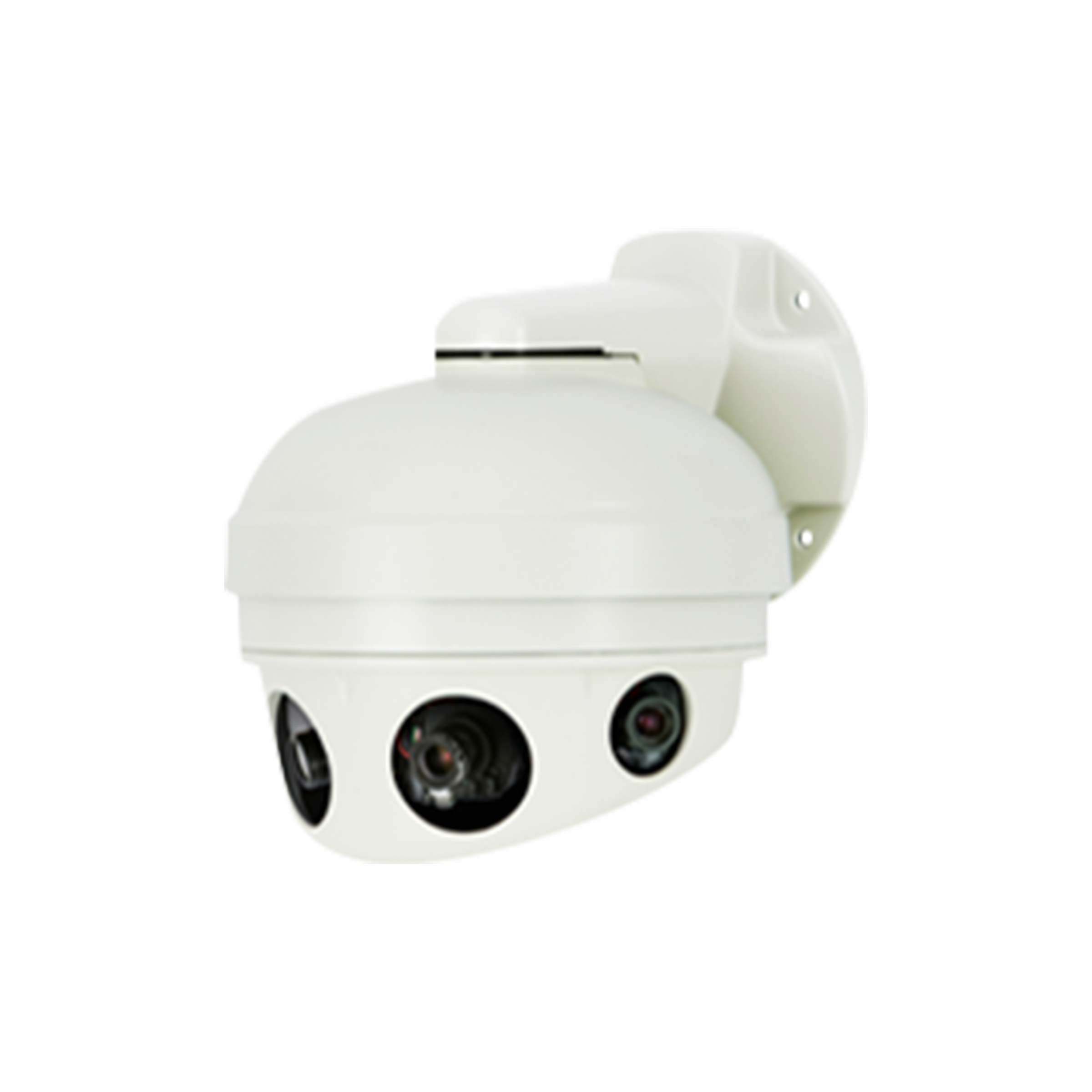

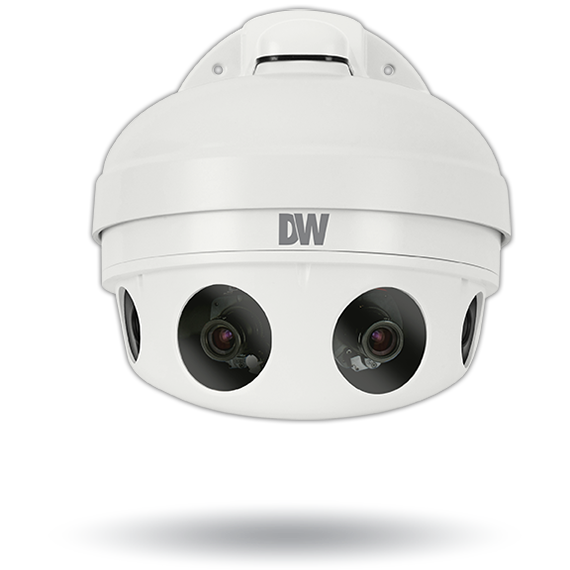

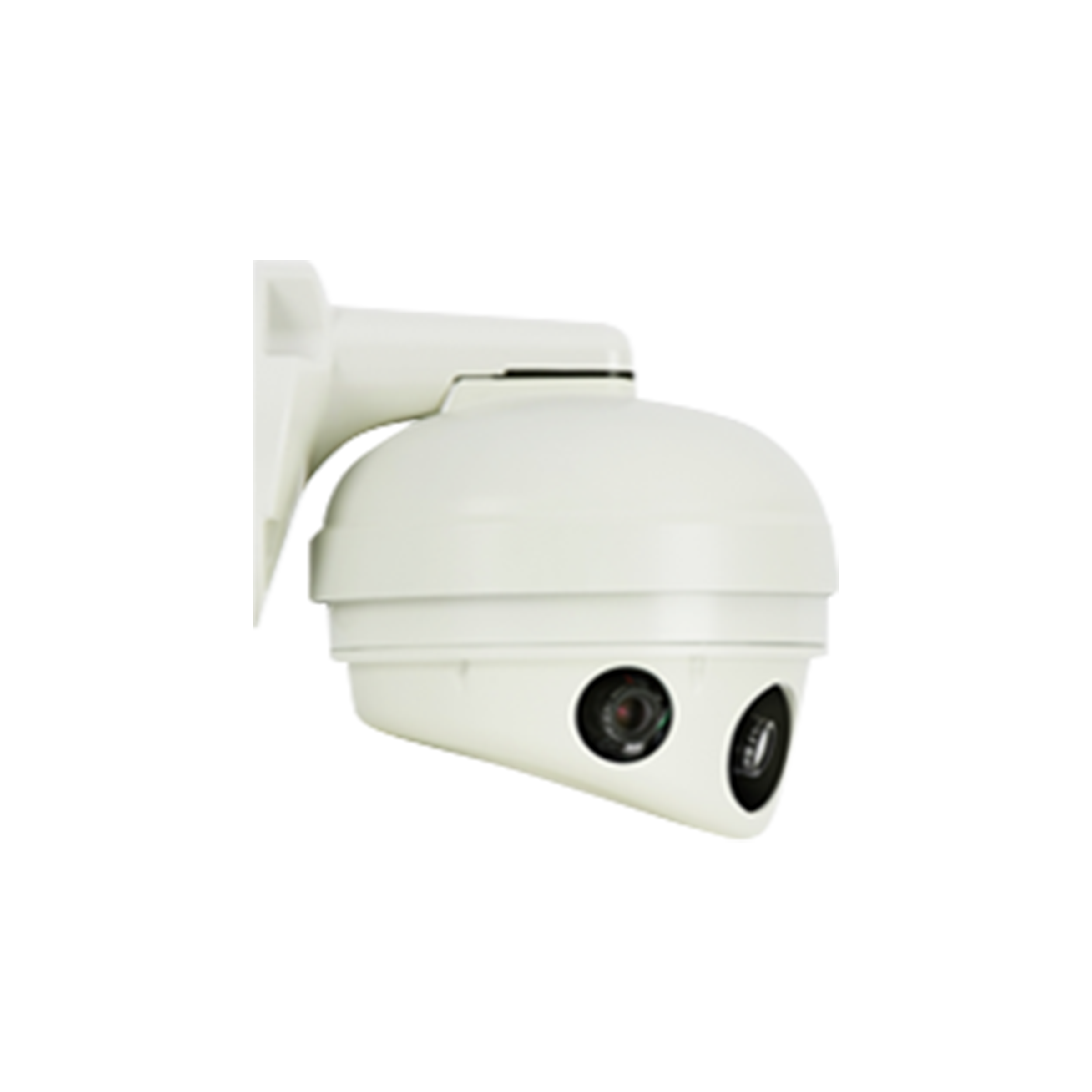

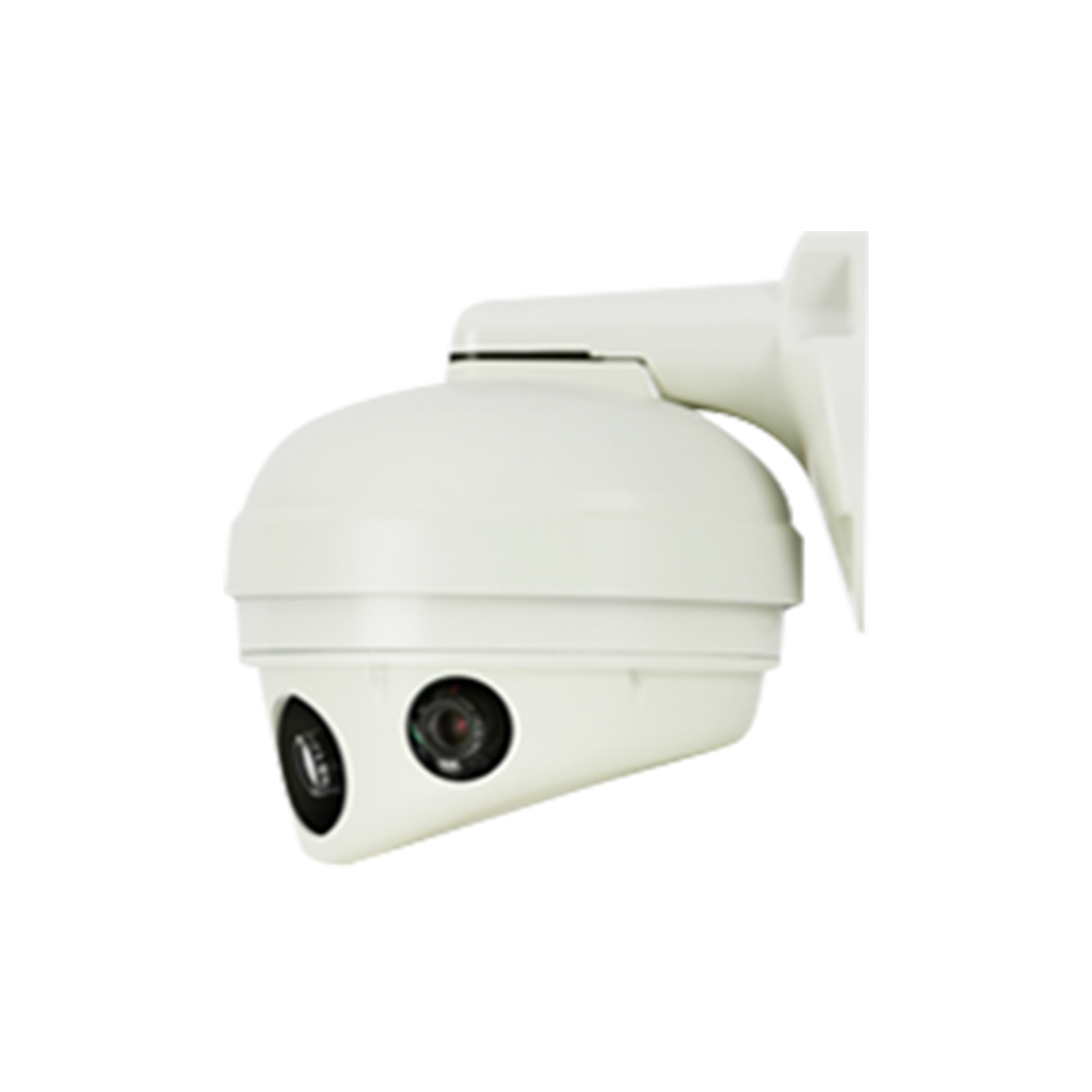

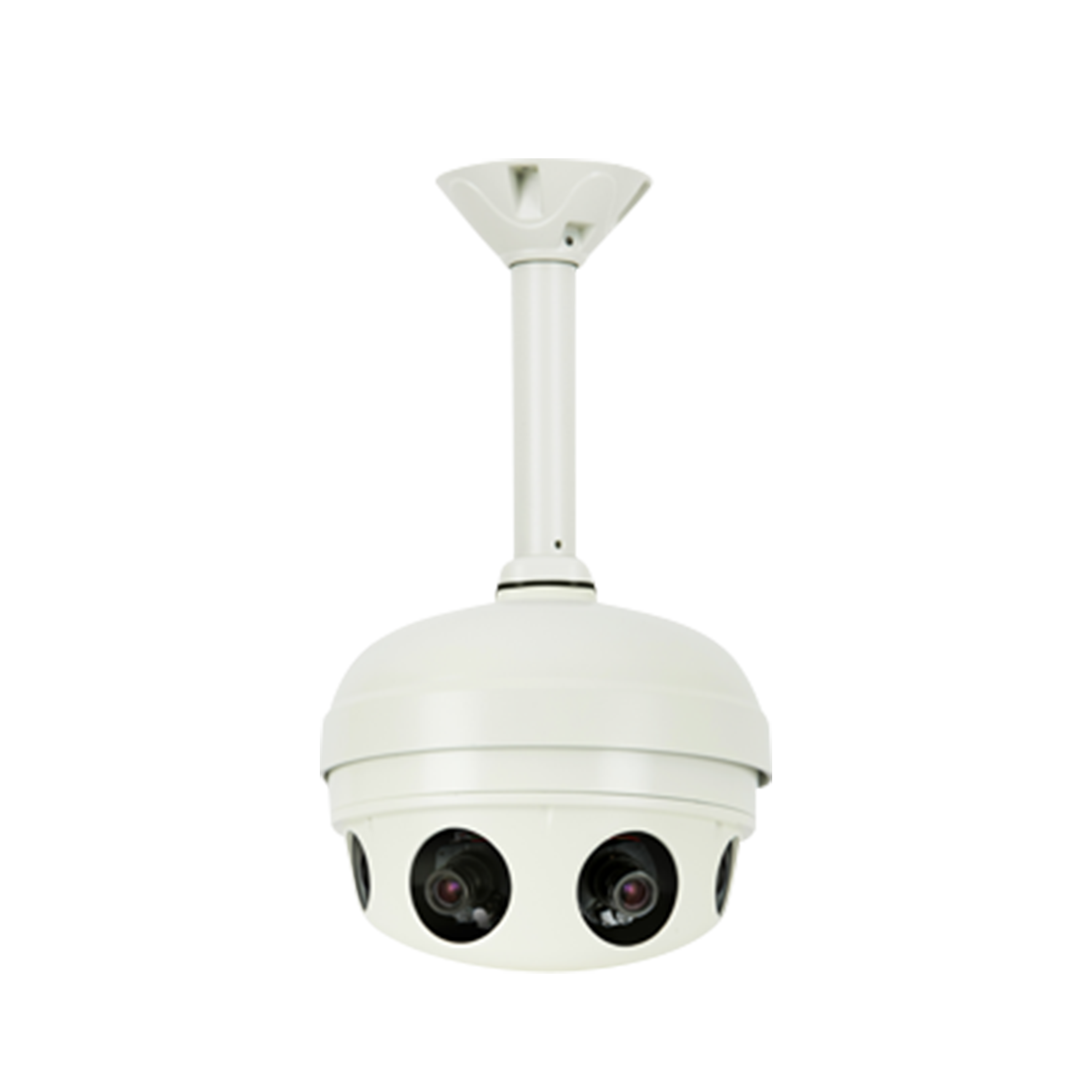

Digital Watchdog - DWC-PZ21M69T - MEGApix Pano 21MP multi-sensor vandal IP camera with 8.0mm fixed lenses
Part number:
DWC-PZ21M69T
Price:
The MEGApix Pano 21MP multi-sensor IP vandal camera produces 180° views at real-time 30fps. The camera supports advanced features such as H.264 codec and Smart DNR™ in an aluminum vandal housing with zero distortion antireflective glass. The 21MP camera does the work of many cameras from one installation, delivering both unprecedented wide views and details.
Features:
- 4x 6.4MP 1/1.8" image sensor at real-time 30fps

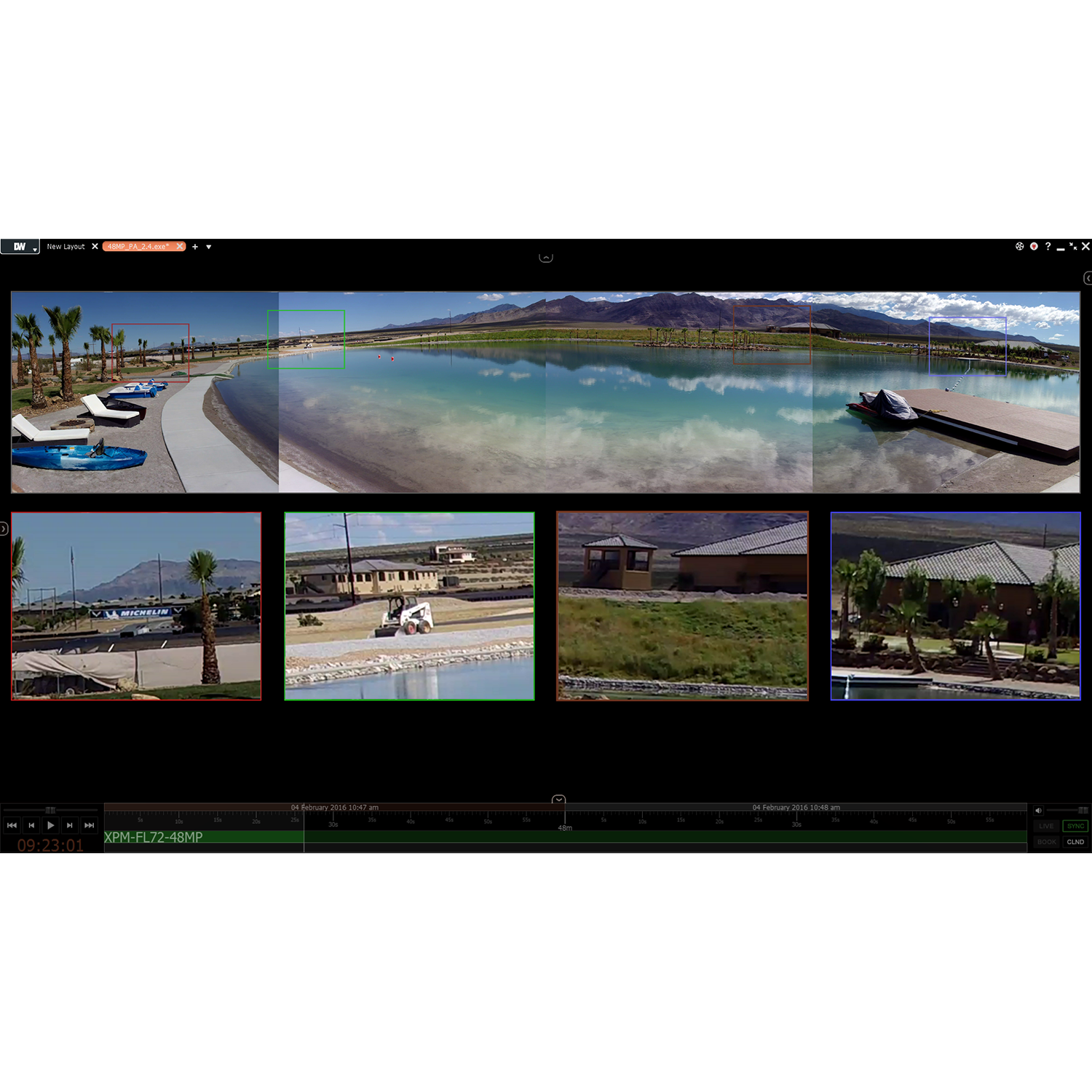

- 21MP 180° panoramic view IP camera
- 4x 8.0mm fixed lens
- Fast frame rates: real-time 30fps at 21MP
- Zero distortion anti-reflective glass
- PoE injector included
- Dual codecs (H.264, MJPEG) with simultaneous dual-stream
- Two-way audio
- Easy image alignment and stitching
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Alarm sensor input
- Relay output
- Web server built-in
- UL listed
- ONVIF conformant, profile S
- NDAA/TAA compliant
- PoE+ high power and DC12V
- IP66 certified weather and tamper-resistant
- 5 years warranty
IMAGE | ||
| Image sensor | 4x 1/1.8" CMOS | |
| Total pixels | 3096(H) X 2080(V) | |
| Minimum scene illumination | 0.16 lux (color) | |
| S/N ratio | 50dB | |
| Maximum resolution | 21MP (4x5.3MP) | |
LENS | ||
| Focal length | 4x 8.0mm, F1.6 | |
| Lens type | Fixed lens | |
| Field of view (FoV) | Over 180° | |
I/0 | ||
| Audio in / out | 1 (1.0Vms, 3K ohm) / 1 | |
| Alarm in / out | 1/1 | |
| Audio compression | G.711 | |
OPERATIONAL | ||
| Shutter mode | Auto, Manual, Anti-Flicker, Slow Shutter | |
| Shutter speed | 1/15 ~ 1/32000 | |
| Slow Shutter | 1/2, 1/3, 1/5, 1/6, 1/7.5, 1/10 | |
| Auto gain control | Auto | |
| Day / night | Auto, day (color), night (B/W) | |
| Smart DNR™ 3D digital noise reduction | Yes | |
| Backlight compensation (BLC) | Yes | |
| Privacy zones | 16 programmable privacy masks | |
| Alarm notifications | Notifications via e-mail notifications, FTP, alarm output, SD card recording | |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included) | |
NETWORK | ||
| LAN | 100/1000Base-T(1Gbps) | |
| Video compression type | H.264, MJPEG | |
| Resolution | H.264: 3072x1728/1080p/720p/640x360/512x288/384x216 MJPEG: 384x216 / 352x288 / 352x240 | |
| Frame rate | Up to 30fps at all resolutions | |
| Video bitrate | 100Kbps ~ 10Mbps, multi-rate for preview and recording | |
| Bitrate control | Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) | |
| Streaming Capability | 3072x1728p30 + 640x360p7 with H.264 and MJPEG (up to 16 streaming) | |
| IP | IPv4 | |
| Protocol | TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3
(MIB-2) | |
| Security | HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW) | |
| ONVIF conformance | Yes | |
| Video management software | DW Spectrum® IPVMS | |
ENVIRONMENTAL | ||
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) | |
| Operating humidity | Less than 80% RH, (non–condensing) | |
| IP rating | IP66 certified weather and tamper-resistant | |
| Other certifications | FCC, CE, ROHS
| |
ELECTRICAL | ||
| Power requirement | DC12V, PoE IEEE 802.3at PoE+ class 4 (High power PoE injector included) | |
| Power consumption | DC12V: 21.5W
PoE IEEE802.3at Class4: 23.2W | |
MECHANICAL | ||
| Material | Aluminum vandal housing, polycarbonate lens cover | |
| Dimensions | 7.55" x 4.25" (192 x 108mm) | |
| Weight | 4.4 lbs (2kg) | |
| Warranty | 5 years | |
