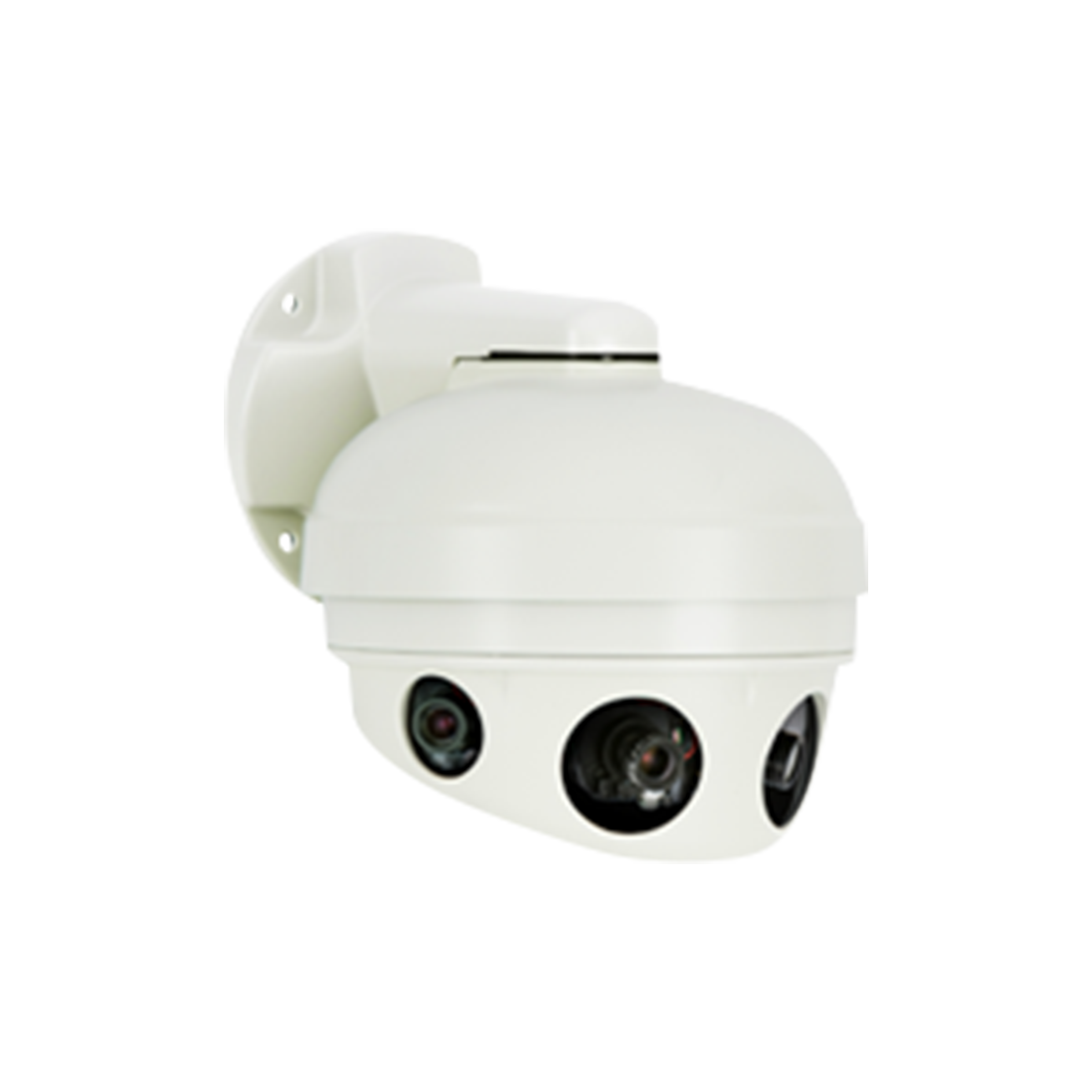

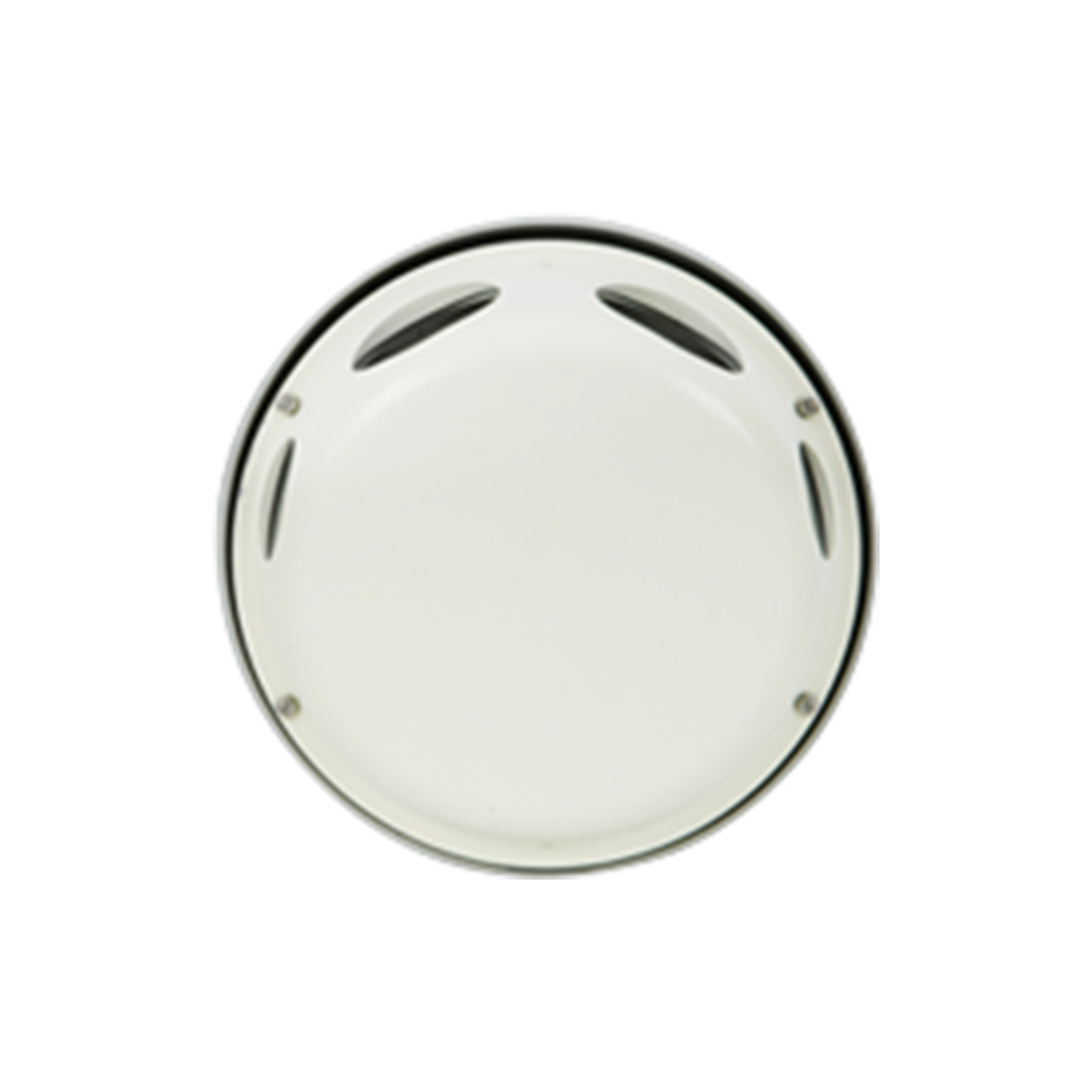

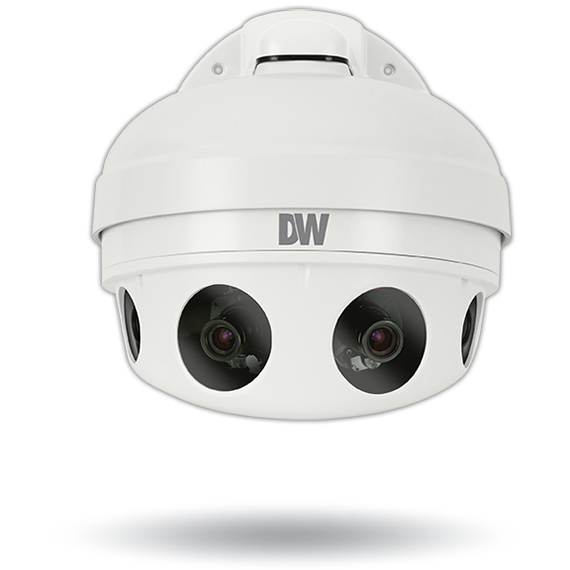

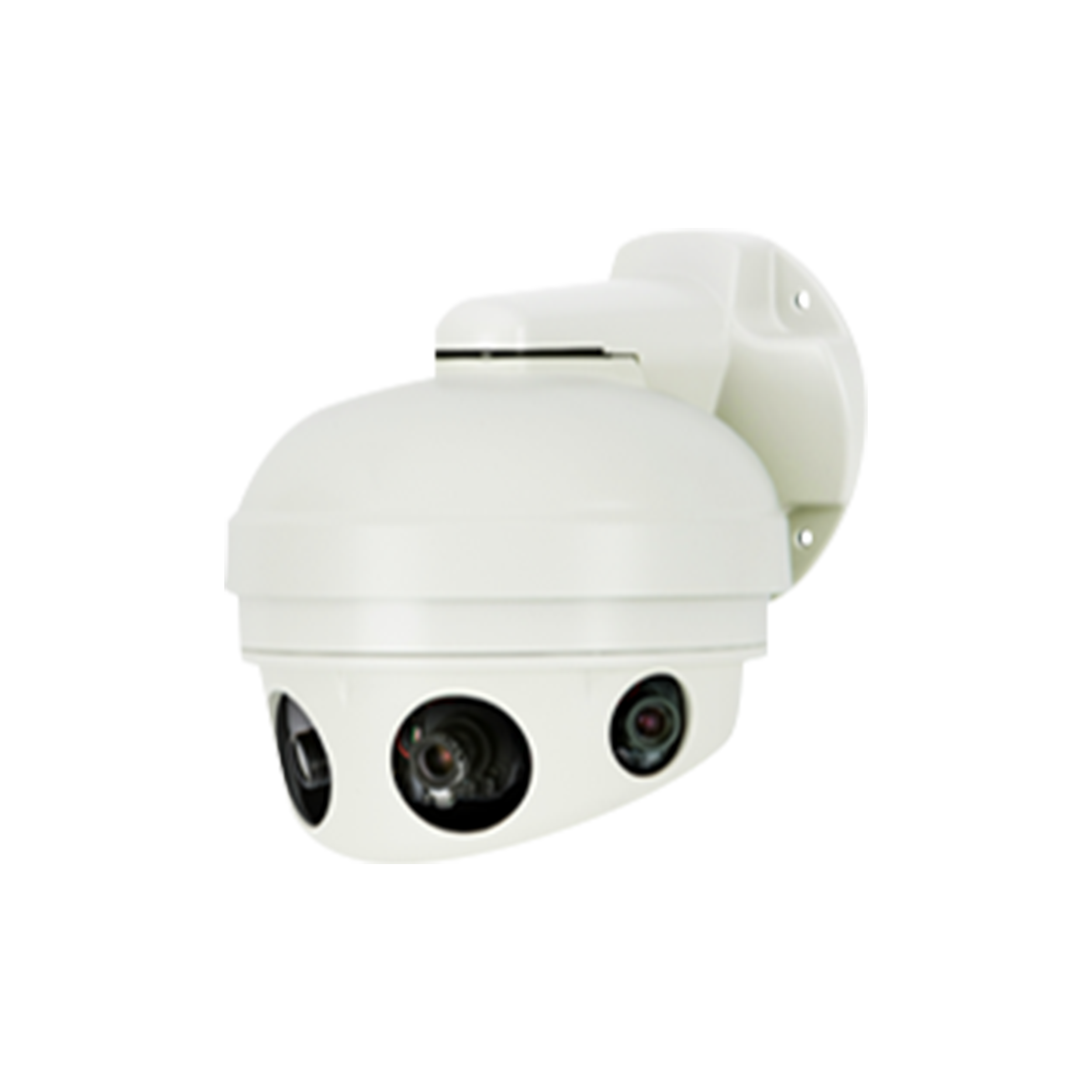

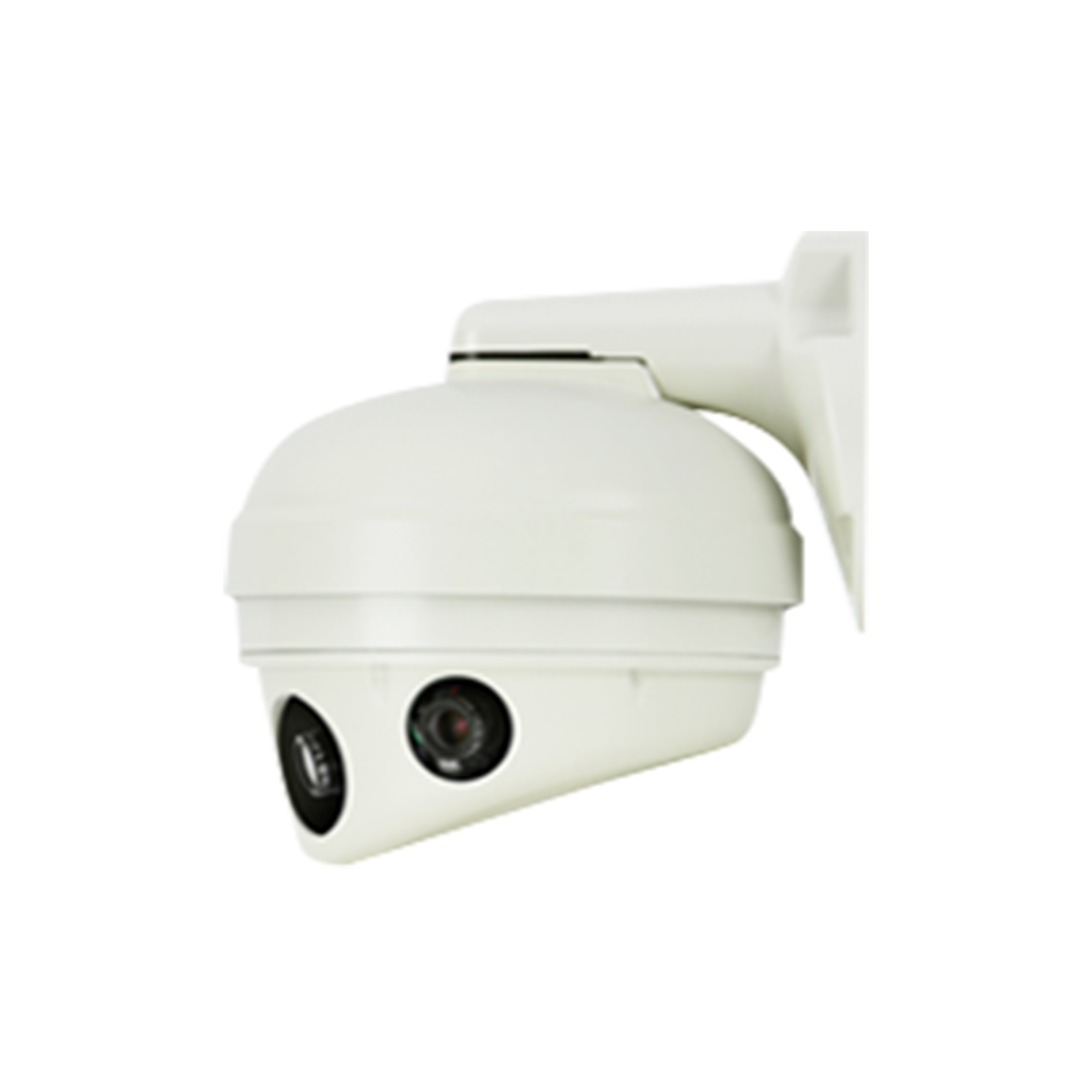

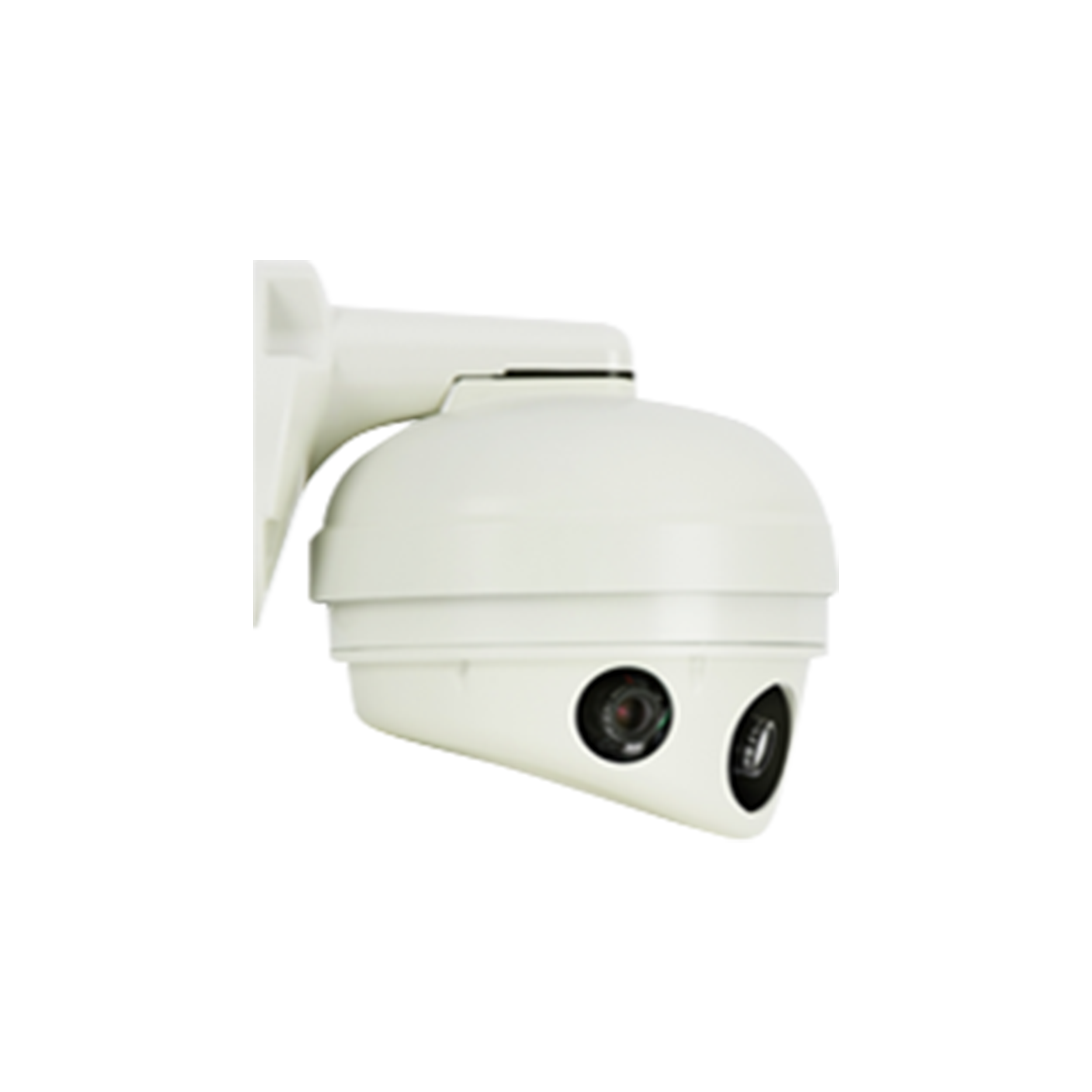

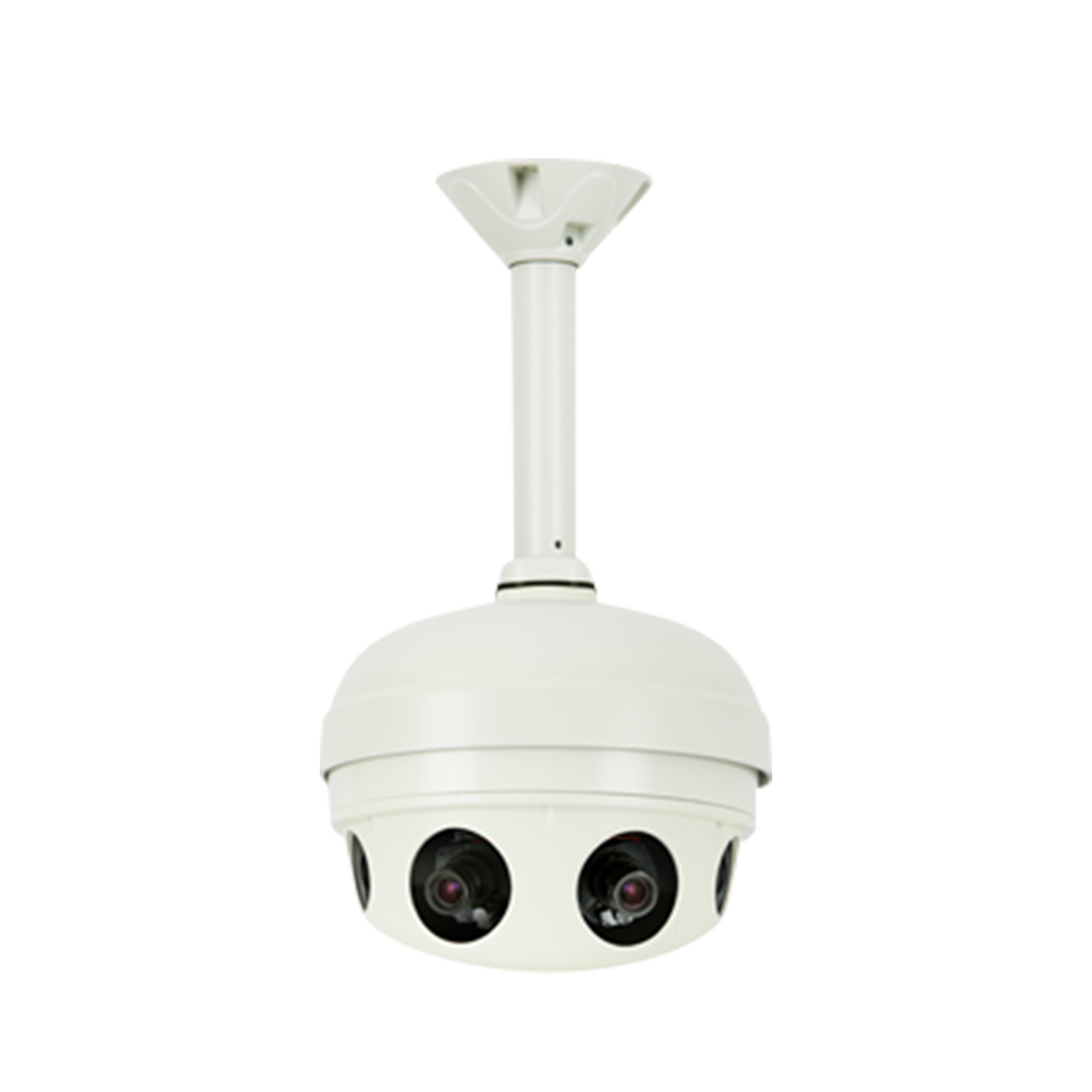

Digital Watchdog - DWC-PZV2M72T - MEGApix Pano 48MP multi-sensor vandal IP camera with 7.2mm fixed lenses
Part number:
DWC-PZV2M72T
Price:
The multi-sensor MEGApix PANO 48MP 180° View Camera uses four 12MP CMOS sensors to produce 180° views at up to 15fps at 48MP and 30fps at 32MP resolution via a single PoE Plus connection. The camera’s remote alignment and field of view adjustment delivers unbeatable image quality. The camera comes in an IP66-rated weather resistant enclosure with anti-reflective glass.
Features:
- 4x 12MP 1/2.3" Image Sensor at Real Time 30fps
- 48MP 180° Panoramic View IP Camera
- 4x 7.2mm Auto Focus Fixed Lens
- Fast Frame Rates: 15fps at 48MP / Real-time 30fps at 32MP
- Zero Distortion Anti-reflective Glass
- PoE Injector Included
- H.264 Codec with Simultaneous Dual-Stream

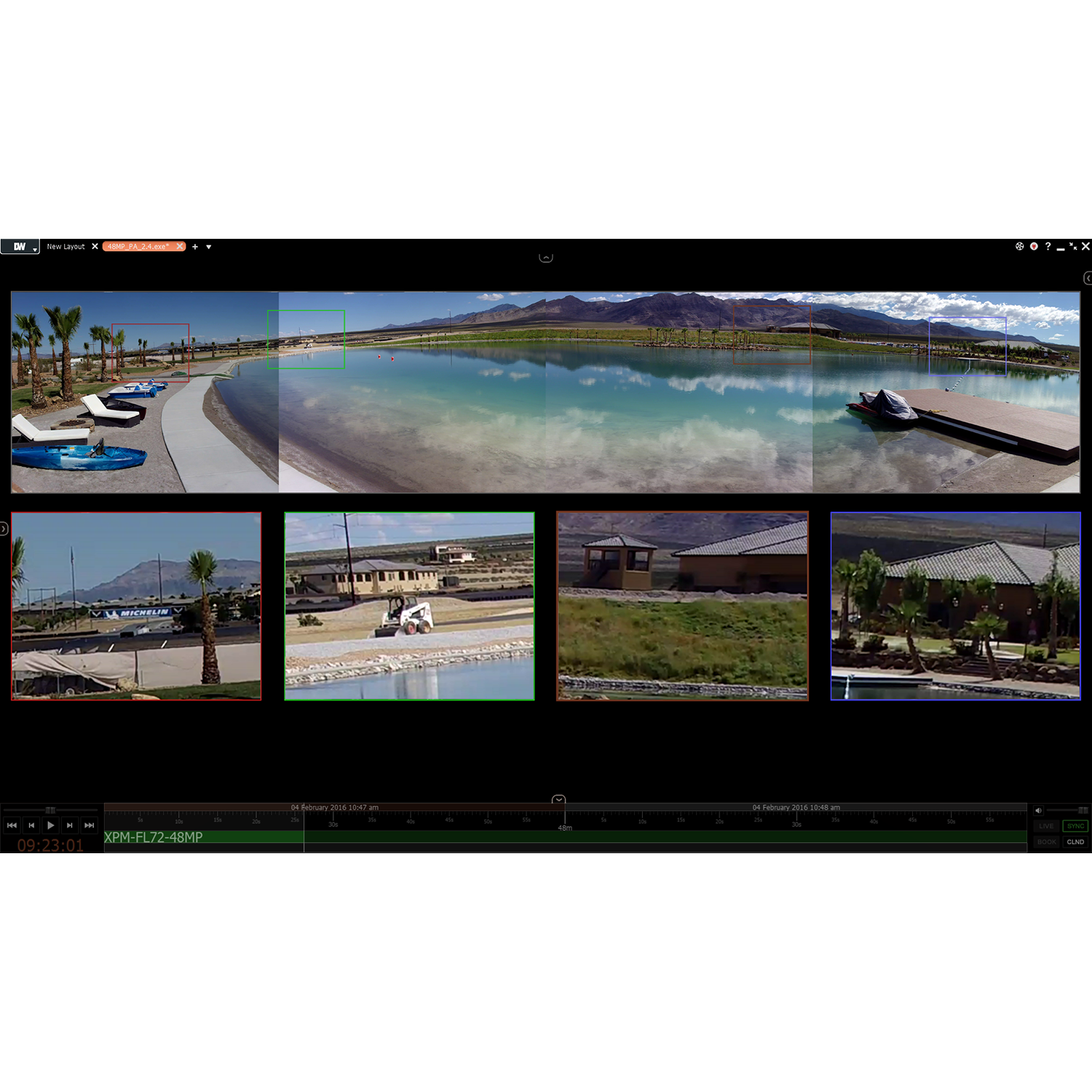

- Easy Image Alignment and Stitching
- Advanced 1.0Ghz Dual Core Video Processors
- Smart DNR 3D Digital Noise Reduction
- True Day/Night with Mechanical IR Cut Filter
- Auto Gain Control (AGC)
- Backlight Compensation (BLC)
- Auto White Balance (AWB)
- Motion Detection
- Web Server Built-in
- PoE+ High Power and DC12V
- NDAA/TAA compliant
- IP66 Certified Weather and Tamper Resistant
IMAGE | |
| Image sensor | 4x 1/2.3” CMOS |
| Total pixels | 4000(H) x 3000(V) |
| Minimum scene illumination | 0.5 lux (color) |
| 0.1 lux (B&W) | |
| S/N ratio | 50dB |
| Maximum resolution | 48MP (4x 12MP) |
LENS | |
| Focal length | 4x 7.2mm |
| Lens type | Fixed lens |
| Field of view (FoV) | 48MP mode: 48° HFOV per image, 185° total HFOV |
| 32MP mode: 46° HFOV per image, 180° total HFOV | |
OPERATIONAL | |
| Shutter mode | Auto, manual, slow shutter |
| Shutter speed | 1/25 ~ 1/10000 Sec |
| Slow Shutter | 1/7.5 ~ 1/32000 |
| Auto gain control | Auto |
| Day / night | Auto, day (color), night (B/W) |
| Smart DNR™ 3D digital noise reduction | Off, low, middle, high |
| White balance | Auto, indoor, outdoor, manual |
| Mirror and flip | Yes |
| Backlight compensation (BLC) | On, off |
NETWORK | |
| LAN | 1000Base-T (1Gbps) |
| Video compression type | H.264 |
| Resolution | Up to 16000 x 3000 |
| Frame rate | 48MP: 15fps per sensor |
| 32MP: 30fps per sensor | |
| Video bitrate | 4Mbps/8Mbps/12Mbps |
| Bitrate control | Multi Streaming CBR/VBR at H.264 (Controllable frame rate and Bandwidth) |
| Streaming capability | 1 main high resolution, 1 low resolution streams |
| IP | IPv4 |
| Protocol | TCP/IP, DHCP, UDP, RTSP,NTP, RTP,Zeroconf, UpnP, Telnet |
| Web viewer | OS: Windows® 7, Windows® 8, Windows® 10 Browser: IE, Chrome, Firefox |
| Video management software | DW Spectrum® IPVMS |
ENVIRONMENTAL | |
| Operating temperature | -40°F ~ 122°F (-40°C ~ 50°C) |
| Operating humidity | Less than 80% (non-condensing) |
| IP rating | IP66 certified weather and tamper resistant |
| Other certifications | FCC, CE, ROHS |
ELECTRICAL | |
| Power requirement | DC12V, PoE+ IEEE 802.3at PoE+ (High power PoE injector included) |
| Power consumption | 12VDC: 22.5W PoE+: 25.5W |
MECHANICAL | |
| Material | Aluminum vandal housing, polycarbonate lens cover |
| Dimensions | 7.5" x 4.25" (190 x 108mm) |
| Weight | 4.4 lbs (2kg) |
MINIMUM CLIENT REQUIREMENTS | |
| NOTE: DW Spectrum® IPVMS client must run a a separate system than the recording one | NOTE: DW Spectrum® IPVMS client must run a a separate system than the recording one |
| Processor | Intel® Core™ i5 4th generation processor or higher |
| RAM | 16GB |
| Network | 1Gbps |
| Graphics card | nVidia GeForce® 1050 or comparable |
MINIMUM SERVER REQUIREMENTS | |
| NOTE: Blackjack® servers supporting the DWC-PZV2M72T: DW-BJER2UxT, DW-BJER3UxT, DW-BJER4UxT | NOTE: Blackjack® servers supporting the DWC-PZV2M72T: DW-BJER2UxT, DW-BJER3UxT, DW-BJER4UxT |
| Processor | Intel® Core™ i7 4th generation processor or higher |
| RAM | 16GB |
| Network | 1Gbps |
| Hard drive | Enterprise level HDD |
