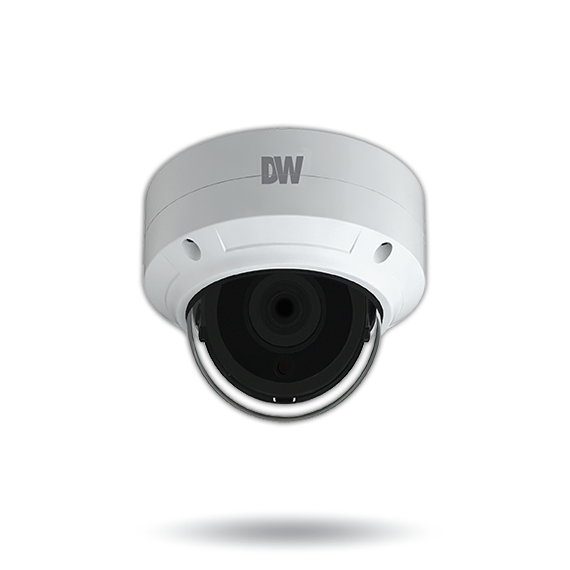

Digital Watchdog - DWC-V8553TIR - Star-Light UHDoC 5MP vandal dome camera with 2.8mm fixed lens and IR
Part number:
DWC-V8553TIR
Price:
5MP Universal HD over Coax cameras deliver crystal-clear images and support HD-Analog, HD-TVI and HD-CVI signals and analog signals up to 960H. The fixed lens IK10 impact resistant vandal dome cameras are IP66 rated and can be controlled via the same coax cable using UTC. All DW Universal HD over Coax cameras are engineered to work with our VMAX A1 Plus HD over Coax DVRs using your existing coax infrastructure for a cost effective, high resolution surveillance solution.
Features:
- Universal HD over Coax technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
- 5MP 1/2.7" image sensor at 20fps / 4MP at real-time 30fps
- 2.8mm fixed lens
- Digital Wide Dynamic Range (D-WDR)
- OSD control via Coaxial (UTC)
- 100' range IR
- 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
IMAGE | |
| Image sensor | 5MP 1/2.7" CMOS |
| Active pixels | 2592 (H) x 1944 (V) |
| Scanning system | CMOS line-by-line |
| Frequency | 60Hz / 50Hz |
| Signal technology | Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support |
| Resolution | 5MP: 2560 x 1936 @ 20fps 4MP: 2560 x 1440 @ 30fps |
| Minimum scene illumination | 0.01 lux (color) |
| 0 lux (B&W) | |
| Video output | HD-Analog, HD-TVI, HD-CVI 5MP @ 20fps, 4MP @ 30fps, Analog up to 960H |
LENS | |
| Focal length | 2.8mm |
| Lens type | Fixed lens |
| Field of view (FoV) | 91° |
| IR distance | 100ft range |
OPERATIONAL | |
| Shutter mode | Auto, manual |
| Shutter speed | 1/60s - 1/100,000s |
| Backlight | Yes |
| Wide dynamic range (WDR) | D-WDR |
| 3D digital noise reduction | Digital noise reduction |
| White balance | Yes |
| Day / night | Auto, day (color), night (B/W) |
| Mirror / flip | Yes |
| Auto gain control | Auto |
| Sharpness | Yes |
| Up the Coax (UTC) camera control | UTC camera control |
ENVIRONMENTAL | |
| Operating temperature | -22°F ~ 122°F (-30°C ~ 50°C) |
| Operating humidity | 10 ~ 90% RH (non–condensing)
|
| IP rating | IP66 environmental-rated dust-tight and water-resistant |
| IK rating | IK 10-rated impact-resistant |
| Other certifications | FCC, CE, ROHS |
ELECTRICAL | |
| Power requirement | DC12V only |
| Power consumption | LED on: <4W |
| LED off: <1W | |
MECHANICAL | |
| Material | Metal vandal housing, polycarbonate dome |
| Dimensions | 3.54" x 4.59" (90 x 116.7 mm) |
| Weight | 1.33 lbs (0.605 kg) |
