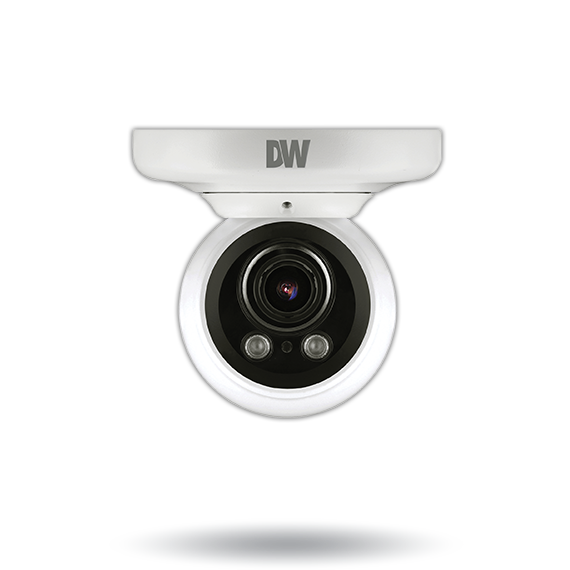

Digital Watchdog - DWC-VA883WTIR - Star-Light Plus 4K UHDoC Vandal Turret Camera with a 3.6-10mm Vari-focal Lens and IR
Product Overview
The DWC-VA883WTIR is a 4K UHDoC™ vandal turret camera featuring a 3.6~10mm motorized zoom lens with auto-focus. It utilizes Universal HD over Coax® technology to support HD-Analog, HD-TVI, HD-CVI, and legacy CVBS signals. Equipped with Star-Light Plus™ for color imaging in near-total darkness and True WDR (120dB), it delivers 4K video at 15 fps. The IP67/IK10-rated turret design provides 360° panning, 90° tilt, and Smart IR™ up to 80 feet, ensuring durable, high-resolution surveillance in any environment.
Key Configuration
- • Image sensor: 8MP 1/1.8" CMOS; active pixels: 3864 × 2176; max resolution: 3840 × 2160 (4K)
- • Lens: 3.6~10mm vari-focal p-iris with motorized zoom and auto-focus; FOV: 98.4° (wide) to 45.7° (tele)
- • IR distance: 80 ft range; minimum illumination: 0.09 lux color, 0 lux B/W; Star-Light sense-up: off to ×32 (disabled at 4K)
- • Video output: 4K @ 15 fps, 4MP/1440p @ 30 fps, 2.1MP/1080p @ 30 fps; 2nd CVBS output for video testing
- • Power: DC12V/24VAC dual voltage; power consumption: DC12V – 5.5W (LED off), 9.0W (LED on); AC24V – 5.1W (LED off), 8.0W (LED on)
Key Features
Key features are Universal HD over Coax® technology for seamless integration with existing analog infrastructure. It combines Star-Light Plus™ and 120dB True WDR for superior imaging in extreme lighting, while its dome-free design enables a full 90° tilt and 360° pan. With OSD control via UTC, dual-voltage support (24VAC/12VDC), and a rugged IP67/IK10 rating, it is optimized for use with VMAX® A1 4K DVRs.
Technical Context
The internal synchronization and a 55dB S/N ratio, with auto-shutter speeds up to 1/30,000s. Its aluminum vandal-resistant housing is FCC, CE, and RoHS certified, ensuring reliable operation from -4°F to 122°F.
Installation Notes
Measures 4.92" × 4.8" and weighs 1.58 lbs, featuring a rugged IP67/IK10 rating for waterproof and impact resistance. Its dome-free design facilitates easy maintenance and allows for a 90° tilt with 360° pan. Complete with a CVBS test output and a 5-year warranty, it is built for long-term durability and simplified installation.
IMAGE | |
| Image sensor | 8MP 1/1.8" CMOS |
| Active pixels | 3864(H) x 2176(V) |
| Scanning system | Progressive scan |
| Frequency | 60Hz / 50Hz |
| Signal technology | Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI to 4K and CVBS at 960H |
| Synchronization | Internal |
| Resolution | Max 3840 x 2160 |
| Minimum scene illumination | 0.09 lux (color) |
| 0 lux (B/W) | |
| S/N ratio | 55dB |
| Video output | 4K @ 15fps 4MP/1440p @ 30fps 2.1MP/1080p @ 30fps |
| 2nd Video output | CVBS output for video testing |
LENS | |
| Focal length | 3.6 ~ 10mm |
| Lens type | Vari-focal p-iris lens with motorized zoom and auto-focus |
| Field of view (FoV) | 98.4 - 45.7° |
| IR distance | 80ft range |
OPERATIONAL | |
| Shutter mode | Auto |
| Shutter speed | 1/30-1/30,000 |
| Backlight | Yes |
| Star-Light (sense-up) | Off-x32 (disabled at 4K) |
| Wide dynamic range (WDR) | True WDR, off, on |
| Wide dynamic range (WDR) dB | 120dB |
| Smart DNR™ 3D digital noise reduction | 3D/2D DNR |
| White balance | Yes |
| Highlight masking exposure (HME) | Yes |
| Dynamic range compression (DRC) | Yes |
| Day / night | Auto, day (color), night (B/W) |
| Mirror / flip | Yes |
| Auto gain control | Max 60dB |
| Motion detection | Yes |
| Privacy zones | Yes |
| Sharpness | Yes |
| Gamma | 0.45 |
| De-fog | Yes |
| RS485 / UTP built-in | UTC |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| IP rating | IP67 rated |
| IK rating | IK10-rated impact resistant |
| Other certifications | FCC, CE, ROHS |
ELECTRICAL | |
| Power requirement | DC12V/24VAC dual voltage |
| Power consumption | DC12V (LED off): 5.517W, 460mA DC12V (LED on): 8.98W, 748mA |
| AC24V (LED off): 5.06W, 358mA AC24V (LED on): 8.03W, 552mA | |
MECHANICAL | |
| Material | Aluminum vandal ball housing |
| Dimensions | 4.92" x 4.8" (125 x 122 mm) |
| Weight | 1.58lbs (0.72kg) |
| Warranty | 5 year warranty |
