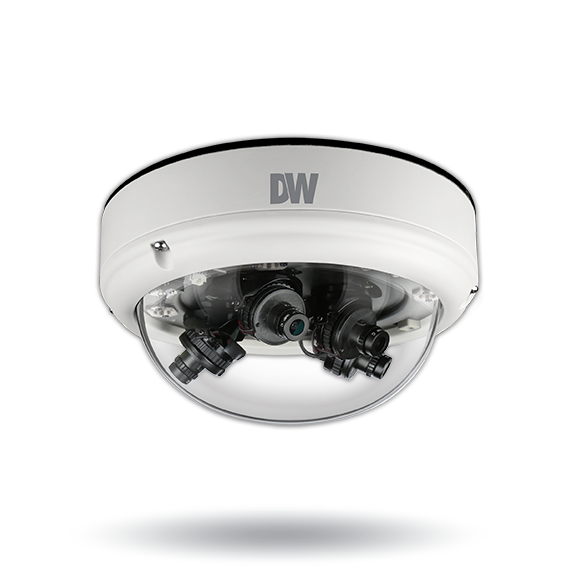

Digital Watchdog - DWC-VS753WT4444 - Star-Light Flex 8MP user-configurable multi-sensor vandal dome camera with 2.8mm, 4.0mm, 6.0mm and 8.0mm fixed lens options
Part number:
DWC-VS753WT4444
Price:
STAR-LIGHT Flex 8 Megapixel Multi-Sensor High Definition Analog cameras transmit crystal-clear 1080p images over coaxial cable with complete sensor position and field-of-view customization. The cameras reduce installation time and complexity by offering four different lens modules, each individually configurable and independent, easily positioned on a secure magnetic track and adjustable using a 3-axis gimbal.
Features:
- Analog high definition (HD-Analog) HD over Coax Technology
- Four cameras in one installation
- 4x 2.1MP/1080p 1/3" image sensors
- Flexible sensor positioning with magnets
- 8MP resolution at 30fps (4x 2.1MP/1080p)
- Customizable 2.8mm, 4.0mm, 6.0mm and 8.0mm fixed lens options
- Star-Light super low light technology
- True Wide Dynamic Range (WDR)
- True day/night mechanical IR cut filter
- OSD control via coaxial (UTC)
- Easy icon driven OSD menu with built-in joystick
- Secondary video-BNC output
- Smart DNR 3D digital noise reduction
- De-Fog extreme weather image compensation
- Highlight masking exposure (HME)
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- RS-485 built-in
- Auto sensing 24VAC/12VDC with line lock
- IP66 environmental-rated dust-tight and water-resistant
- 5 year warranty
IMAGE | |
| Image sensor | 4x 2.1MP 1/3” CMOS |
| Active pixels | 4x 1944 (H) x 1092 (V) |
| Scanning system | Progressive scan |
| Frequency | 60Hz / 50Hz |
| Signal technology | HD over Coax® technology with HD-Analog signal support |
| Synchronization | Internal |
| Resolution | 8 megapixel (4x 1920x1080 sensors) |
| Minimum scene illumination | 0.06 lux (color) |
| 0.01 lux (B/W) | |
| S/N ratio | 55dB |
| Video output | HD analog (4x 1080p at 30fps) |
| Alarm output | 4 alarm outputs |
LENS | |
| Focal length | 2.8mm, 4.0mm, 6.0mm, 8.0mm combination options |
| Lens type | Fixed lens |
OPERATIONAL | |
| Operational | x4 (below specs are per sensor) |
| Shutter speed | 1/30-1/30,000 |
| Backlight | On, off |
| Star-Light (sense-up) | Off, x2 – x32 |
| Wide dynamic range (WDR) | True WDR, On, Off |
| Wide Dynamic Range (WDR) dB | 100dB |
| Digital noise reduction (DNR) | Off, low, middle, high |
| White balance | Auto / auto-ex / preset / manual |
| Day / night | Auto, day (color), night (B/W) |
| Mirror / flip | Yes |
| Auto gain control | Max 60dB |
| Motion detection | 15 motion zones per camera, total 60 motion zones |
| Privacy zones | 24 privacy zones per camera, total 96 privacy zones |
| Sharpness | 0 ~ 10 |
| Gamma | 0.5 |
| RS485 / UTP built-in | Pelco D / A-PC |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| IP rating | IP66 certified weather and tamper-resistant |
| Other certifications | FCC, CE, ROHS |
ELECTRICAL | |
| Power requirement | DC12V/AC24V dual voltage |
| Power consumption | DC12V: 8.36W, 696mA |
| AC24V: 8.36W, 348mA | |
MECHANICAL | |
| Material | Aluminum vandal outdoor housing, polycarbonate dome |
| Dimensions | 7.54" x 3.5" (191.6 x 89.5 mm) |
| Weight | 4.4lbs (2kg) |
