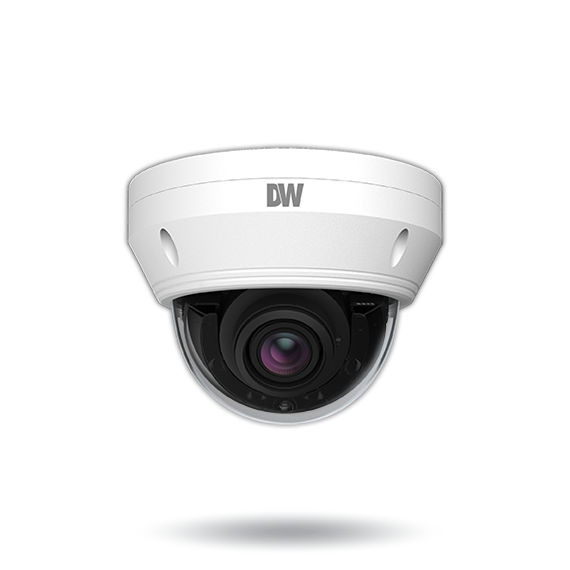

Digital Watchdog - DWC-VSDG04Mi - MEGApix 4MP Vandal Dome IP Camera with a Vari-focal Lens and IR (Not eligible for DW Double Down )
Part number:
DWC-VSDG04Mi
Price:

These MEGApix IP cameras are NDAA compliant and deliver crystalclear images at 4MP resolution and real-time 30fps. The vandal dome camera features a 2.8~12mm vari-focal lens with motorized zoom in an IP67-rated, IK10 impact-resistant housing. Added intelligence includes line crossing, perimeter intrusion and video tampering detection. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market



Features:

  • 4MP 1/3" image sensor at real-time 30fps
  • Vari-focal lens with motorized zoom and autofocus for complete remote lens control and focused image any time
  • True Wide Dynamic Range (WDR) for clear images in challenging light
  • Simultaneous streaming and multiple codec options for smart bandwidth management
  • 164' Smart IR with intelligent camera sync for clear B/W images with no need for external light
  • Line crossing video analytics
  • Perimeter intrusion video analytics
  • Video tampering with scene-change detection video analytics
  • Video tampering with video-blur detection video analytics
  • Video tampering with abnormal color detection video analytics
  • Smart DNR 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
  • Privacy zones cover sensitive areas in the camera's field of view.
  • Backlight compensation (BLC)
  • Two-way audio with a built-in microphone for direct communication between the monitoring station and the camera's location
  • Local SD card slot for local recording in case of network loss
  • Web server built-in for easy camera management from any browser
  • PoE and DC12V for single cable simplified installation
Image sensor4MP 1/3" CMOS sensor (x4)
Maximum resolution4MP
Minimum Scene Illumination in color0.0 lux (B/W), 0.005 lux (color)
Total Pixels2560 (H) x 1440 (V)
LENS
Advanced Lens FeaturesAuto focus, Motorized zoom
Focal Length2.8mm ~ 12mm
Horizontal Field of View (HFOV)92°~31°
IR Distance164' range Smart IR™
Lens TypeVari-focal Lens
I/O
Audio compressionG.711A / U
I/O Audio in/out*Cameras provide a line level audio. The use of amplified microphones and speakers is recommended., 1 input, 1 microphone built-in
OPERATIONAL
3D digital noise reductionSmart DNR™ 3D Digital Noise Reduction
Auto gain controlAuto
Camera AnalyticsLine Crossing, Perimeter Intrusion, video Tampering Detection (Scene Change, Video Blur, Abnormal Color Detection)
Day and nightAuto day/night, Day (color), Night (B/W)
De-fogYes
Memory slotMicro SD/SDHC/SDXC class 10 card (card not included), Up to 1TB micro SD / FAT32
Mirror/flipYes
Motion DetectionYes
Operational NotificationsEmail, FTP server
Privacy Zones8 programmable privacy masks
SharpnessYes
Shutter ModeAuto, Manual
Shutter Speed1/30 ~ 1/100000
White BalanceYes
Wide Dynamic Range (WDR)True WDR 120dB
NETWORK
Bitrate ControlMulti-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
IPIPv4, IPv6
LAN802.3 compliance 10/100 LAN
Network resolution4MP, 3MP,2.1MP/1080P, 720P, D1, 480×240, CIF (60Hz: 1 ~ 30fps; 50Hz: 1~25fps)
Network Web ViewerMicrosoft Edge® browser, Windows® OS
Protocol802.1x, DDNS, DHCP, FTP, HTTP, HTTPs, ICMP, IGMP, NTP, ONVIF, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, UDP, UPnP
SecurityDigest authemtication (ID/PW), IP filtering, MAC filtering
Stream SpeedUp to 30fps at all resolutions
Streaming CapabilityDual-stream at different rates and resolutions
Video Bitrate64Kbps~8Mbps
Video Compression TypeH.264, H.265, MJPEG
Video Management SoftwareAny ONVIF conformant CMS, DW Spectrum® IPVMS
Environmental Operating Humidity0-95% RH (non–condensing)
Environmental Operating Temperature-22°F ~ 140°F (-30°C ~ 60°C)

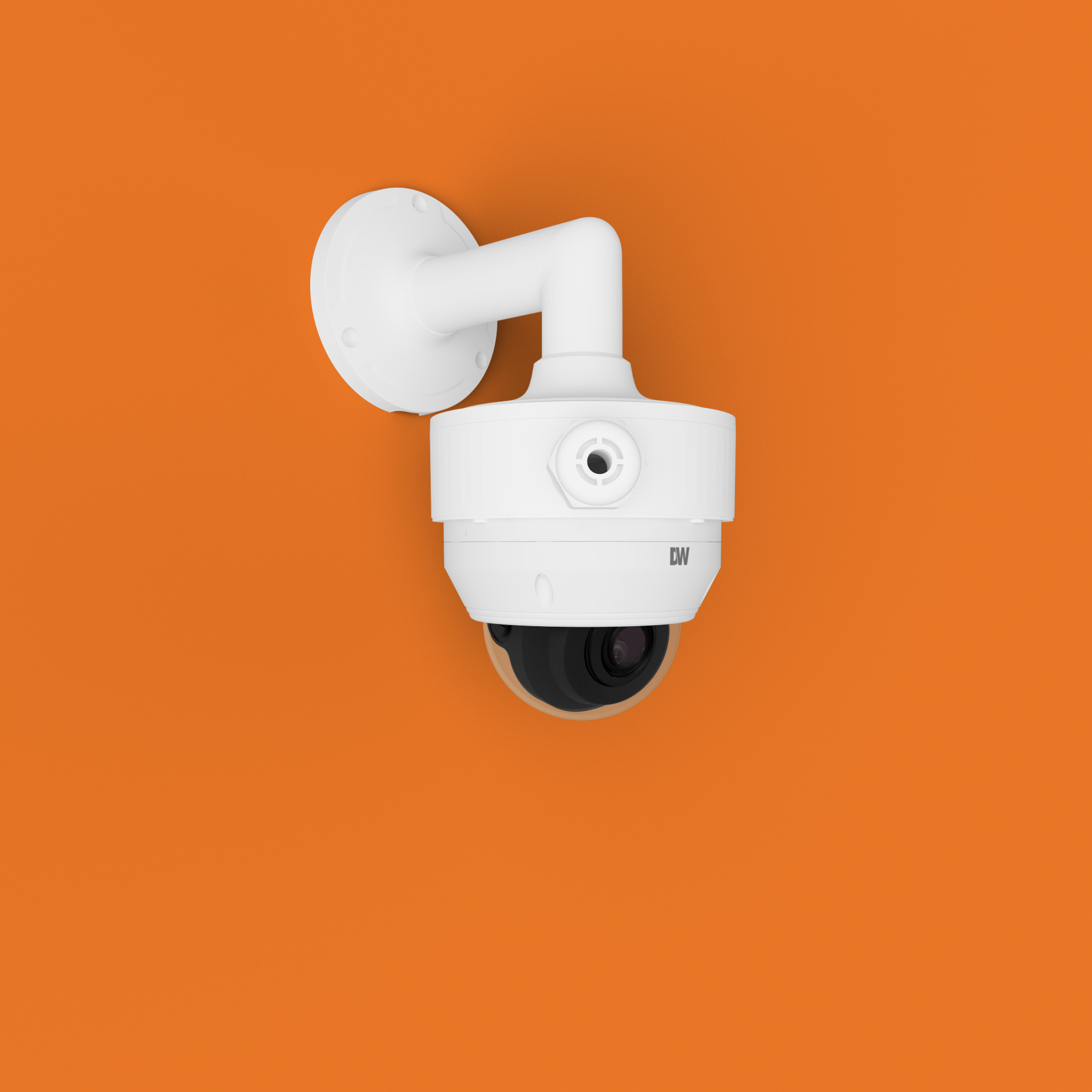

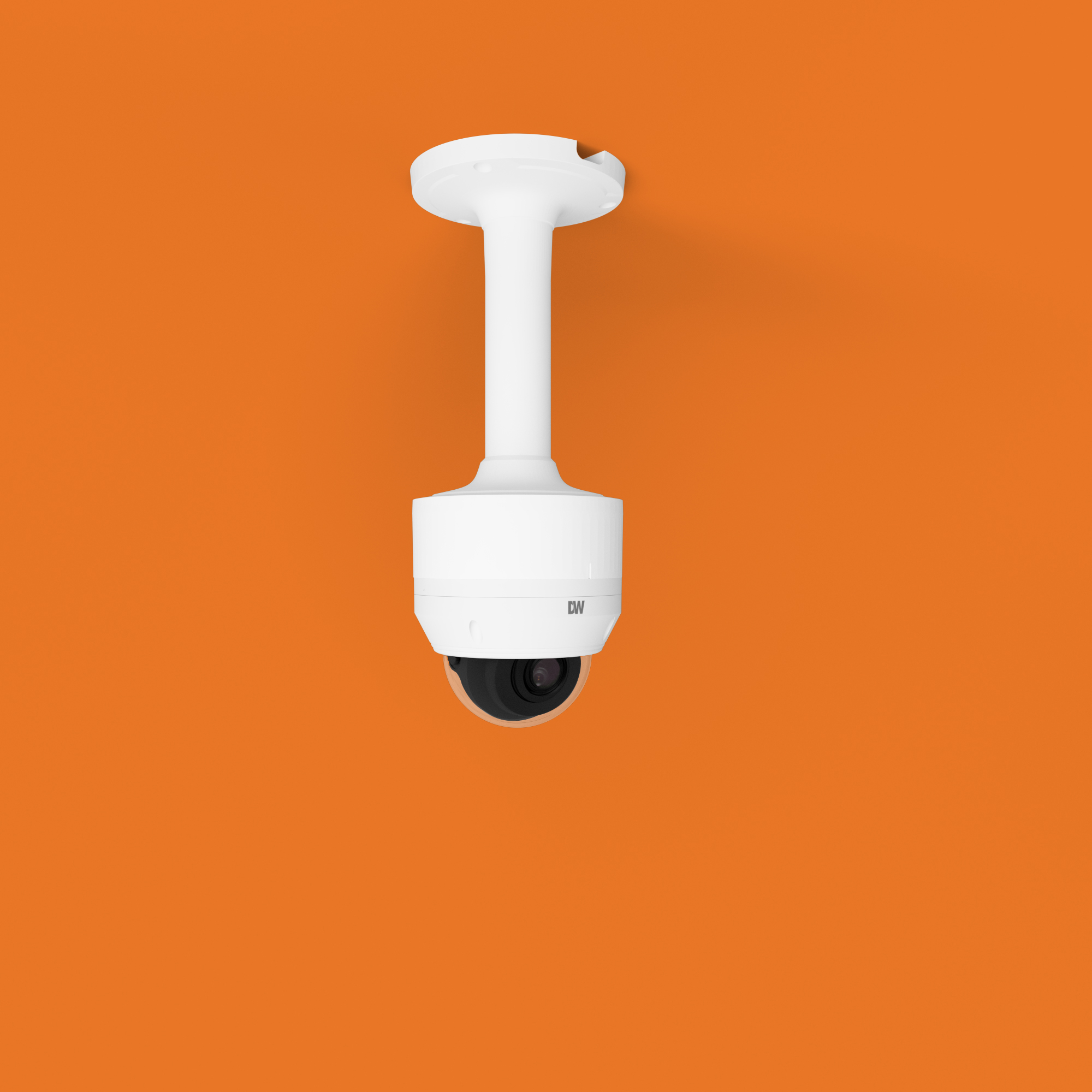

Mounting Accessories (Required/Optional)Optional. Sold separately
MECHANICAL
Camera Dimensions (H X W X D)5.55" x 3.93" (141 x 100 mm)
Camera Weight1.98 lbs (0.9kg)
HousingVandal Dome
IK ratingIK10 Rated
IP ratingWeather Resistant (IP67)
MaterialsAluminum die-casting
ELECTRICAL
Power ConsumptionDC12V: max 7.5W, 625mA, PoE: max 7.5W
Power RequirementsAdapter not included, PoE
GENERAL
Warranty5 Year Warranty
