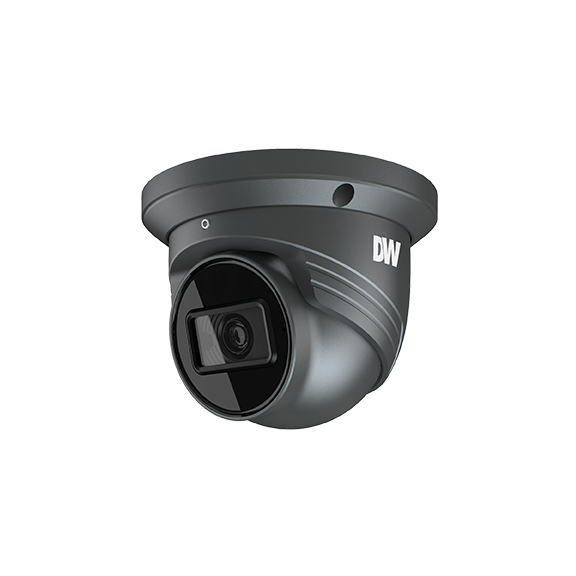

These MEGApix IP cameras are NDAA compliant and deliver crystal-clear images at 4MP resolution and real-time 30fps. The IP67-rated turret camera features a 2.8mm fixed lens and a 360° camera gimbal for absolute view adjustment. Added intelligence includes line crossing, perimeter intrusion and video tampering detection. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Line crossing
Once a pre-defined line is crossed from either direction, an event notification will be sent.
Perimeter intrusion
Once a pre-defined area is set, any crossing of the lines towards the area, out of the area, or both, will trigger an alarm.
Video tampering detection – abnormal color detection
When the camera’s color reproduction is changed, an event notification will be sent.
Video tampering detection – scene change
When the camera is moved, and the Field of View (FoV) is different, an event notification will be sent.
Video tampering detection – video blur
When a sudden blur or loss in visibility is detected, an event notification will be sent.
Smart IR
Smart IR adjusts the image for IR cameras to prevent excessive illumination on objects that are in the front of the scene and offers a clear image in B/W without any loss of detail.
True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.
H.265 codec support
High-Efficiency video codec standards deliver 25% to 50% better data compression while maintaining video quality.
Features:
- 4MP 1/3" image sensor at real-time 30fps
- 2.8mm fixed lens
- True Wide Dynamic Range (WDR) for clear images in challenging light
- Simultaneous streaming and multiple codec options for smart bandwidth management
- 100' Smart IR with intelligent camera sync for clear B/W images with no need for external light
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene-change detection video analytics
- Video tampering with video-blur detection video analytics
- Video tampering with abnormal color detection video analytics
- White and black housing options available
- Smart DNR 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
- Privacy zones cover sensitive areas in the camera's field of view.
- Backlight compensation (BLC)
- Built-in microphone and audio input for direct communication between the monitoring station and the camera's location
- Local SD card slot for local recording in case of network loss
- Web server built-in for easy camera management from any browser
- PoE and DC12V for single cable simplified installation
- NDAA compliant for federal and government projects
- IP67-rated camera housing built to last
- IK10-rated housing, IK03-rated glass cover.
- 5 year warranty
| Image | |
| Image sensor | 4MP 1/3" CMOS sensor |
| Maximum resolution | 4MP |
| Minimum Scene Illumination in color | 0.0 lux (B/W) 0.005 lux (color) |
| Total Pixels | 2560 (H) x 1440 (V) |
| Lens | |
| Focal Length | 2.8mm |
| Horizontal Field of View (HFOV) | 94° |
| Illumination Distance | 100' range Smart IR™ |
| Lens Type | Fixed Lens |
| Vertical Field of View (VFOV) | 50° |
| I/O | |
| Audio compression | G.711A / U |
| I/O Audio in/out | *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended. 1 input 1 microphone built-in |
| Operational | |
| 3D digital noise reduction | Smart DNR™ 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Camera Analytics | Line Crossing Perimeter Intrusion video Tampering Detection (Scene Change, Video Blur, Abnormal Color Detection) |
| Day and night | Auto day/night Day (color) Night (B/W) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included) Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Email FTP server |
| Privacy Zones | 8 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Auto Manual |
| Shutter Speed | 1/30 ~ 1/100000 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| IP | IPv4 IPv6 |
| LAN | 802.3 compliance 10/100 LAN |
| Network resolution | 4MP, 3MP,2.1MP/1080P, 720P, D1, 480×240, CIF (60Hz: 1 ~ 30fps; 50Hz: 1~25fps) |
| Network Web Viewer | Microsoft Edge® browser Windows OS |
| Protocol | 802.1x DDNS DHCP FTP HTTP HTTPs ICMP IGMP NTP PPPoE QoS RTCP RTP RTSP SMTP SNMP UDP uPNP |
| Security | Digest authentication (ID/PW) IP filtering MAC filtering |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 64Kbps~8Mbps |
| Video Compression Type | H.264 H.265 MJPEG |
| Video Management Software | DW Spectrum® ExacqVision Technologies Milestone Systems |
| Environmental | |
| Compliance |    |
| Environmental Operating Humidity | 0-95% RH (non–condensing) |
| Environmental Operating Temperature | -22°F ~ 140°F (-30°C ~ 60°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | 4.25" x 3.77" (108 x 96 mm) |
| Camera Weight | 1.01 lbs (0.46 kg) |
| Housing | Turret |
| Housing Color | Black |
| IK rating | IK10-rated housing, IK03-rated glass cover. |
| IP rating | Weather Resistant (IP67) |
| Materials | Aluminum die-casting |
| Electrical | |
| Power Consumption | DC12V: max 5W, 416.6mA PoE: max 5W |
| Power Requirements | Adapter not included PoE |
| General | |
| Warranty | 5 Year Warranty |
