Digital Watchdog - DWC-XSBA05LiPC1 - 5 MP Network IP CloudCam Bullet Camera, 6-50mm Lens
• Simplified Deployment: Pre-loaded software and automatic licensing make setup fast and hassle-free.
• Cost-Efficient Surveillance: Serverless architecture and smart recording reduce infrastructure and storage costs.
• Serverless Edge AI: Built-in DW Spectrum® VMS and 1TB onboard storage eliminate the need for external servers, enabling plug-and-play deployment.
• Advanced ALPR & MMCR: Captures license plates and identifies vehicle make, model, and color at speeds up to 75mph using AI-powered recognition.
• 5MP Sensor @ 30fps: Delivers high-resolution, real-time video for accurate identification of fast-moving vehicles.
• True WDR & Smart IR™: Ensures clear images in challenging lighting conditions, including glare and headlights.
• True WDR & Smart IR™: Ensures clear images in challenging lighting conditions, including glare and headlights.
• Cold Start Capability: Operates in extreme environments down to -40°F with IP67 and IK10-rated housing.
• Reliable Performance: Designed for harsh environments with rugged construction and a 5-year warranty
| Image | |
| Active Pixels | 2592 (H) x 1944 (V) |
| Frequency | 50Hz |
| Image sensor | 5MP 1/2.8" CMOS sensor Star-Light Plus™ sensor |
| Maximum resolution | 5MP |
| Minimum Scene Illumination in color | 0.0 lux (B/W) 0.10 lux (color) |
| Scanning System | Progressive scan |
| Test Video Output | Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio |
| Total Pixels | 2704(H) X 2104(V) |
| Stream speed | |
| Local server recording | 1TB local memory for recording |
| Number of DW Spectrum® CaaS™ licenses included | 1 DW Spectrum® CaaS™ license included |
| Lens | |
| Advanced Lens Features | Auto focus Motorized zoom P-iris |
| Focal Length | 6mm ~ 50mm |
| Horizontal Field of View (HFOV) | 40.8° ~ 6.9° |
| Illumination Distance | 130' range Smart IR™ |
| Lens Type | Vari-focal Lens |
| Vertical Field of View (VFOV) | 5.2° ~ 30.2° |
| I/O | |
| Audio compression | G.711 |
| Event triggers | Illegal login Motion Alarm Network disconnection Schedule Sensor detection Temperature anomaly |
| I/O Alarm in/out | 1 input 1 output |
| I/O Audio in/out | 1 input (1.0Vms, 3K ohm) 1 output |
| Intelligent Video Analytics | |
| Advanced video analytics | AI-based object tracking |
| Automatic license plate recognition (ALPR) | Optical character recognition captures and reads vehicle license plates as well as vehicle's make, model and color |
| Analytics filters | Automatic Number Plate Recognition (ANPR) Zones and lines, tamper, metadata, intrusion, line crossing, counting, counting lines, appear, disappear, stopped, enter, exit, direction, tailgating, dwell, logical rules |
| Automatic number-plate recognition (ANPR) | Optical character recognition captures and reads vehicle license plates |
| License plate capture range | Day: 23 - 165ft (7 - 50m) Night: 23 - 131ft (7 - 40m) |
| Supported Countries | Europe [Front view]: Albania, Austria, Belgium, Bosnia and Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Italy, Ireland, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, United Kingdom, Vatican City State North America [Front view]: USA, Canada, Mexico Oceania [Front view]: Australia, New Zealand |
| Vehicle speed range | 25 - 75mph |
| Operational | |
| 3D digital noise reduction | Smart DNR™ 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Day and night | Auto day/night Day (color) Night (B/W) |
| De-fog | Yes |
| Make, Model and Color (MMCR) | Classify vehicles, make, model and color across numerous brands |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Alarm output activation FTP server |
| Privacy Zones | 16 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Anti-Flicker Auto Manual Slow Shutter |
| Shutter Speed | 1/15 ~ 1/32000 |
| Slow Shutter Speed | Off x10 x2 x3 x5 x6 x7.5 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.265 (controllable frame rate and bandwidth) |
| IP | IPv4 |
| LAN | RJ45 (10/100Base-T) |
| Network resolution | H.264: 2592x1944, 2560x1440, 1920x1080, 1280x720, 800x600, 704x576, 704x480, 640x480, 640x360, 352x288, 352x240 H.265: 2592x1944, 2560x1440, 1920x1080, 1280x720, 800x600, 704x576, 704x480, 640x480, 640x360, 352x288, 352x240 MJPEG: 1920x1080, 1280x720, 800x600, 768x432, 704x576, 704x480, 640x480, 640x360, 352x288, 352x240 |
| Network Web Viewer | Google Chrome® browser Linux® OS Mac® OS Microsoft Edge® browser Mozilla Firefox® browser Safari® browser Windows OS |
| Protocol | DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) |
| Security | 802.1x Digest authentication (ID/PW) HTTPS (TLS) IP filtering |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 100Kbps ~ 25Mbps, multi-rate for preview and recording |
| Video Compression Type | H.264 H.265 MJPEG |
| Video Management Software | Any ONVIF conformant CMS DW Spectrum® |
| Environmental | |
| Compliance | CE FCC NDAA Comp ONVIF TAA Compliance UL Listing |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Environmental Operating Temperature | -40°F ~ 122°F (-40°C ~ 50°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | *Dimensions based on the position of the sun shield cover 12.2" x 3.81" (310 x 97mm) |
| Camera Weight | 2.64 lbs (1.2 kg) |
| Housing | Bullet LPR |
| Housing Color | White |
| IK rating | IK10 Rated |
| IP rating | Weather Resistant (IP67) |
| Materials | Aluminum die-casting |
| Electrical | |
| American wire gauge (AWG) | 20M Cable type #18 |
| Power Consumption | DC12V: max 13.2W, 1.1A PoE: 14.4W, 0.3A |
| Power Requirements | Adapter not included PoE |
| General | |
| Warranty | 5 Year Warranty |

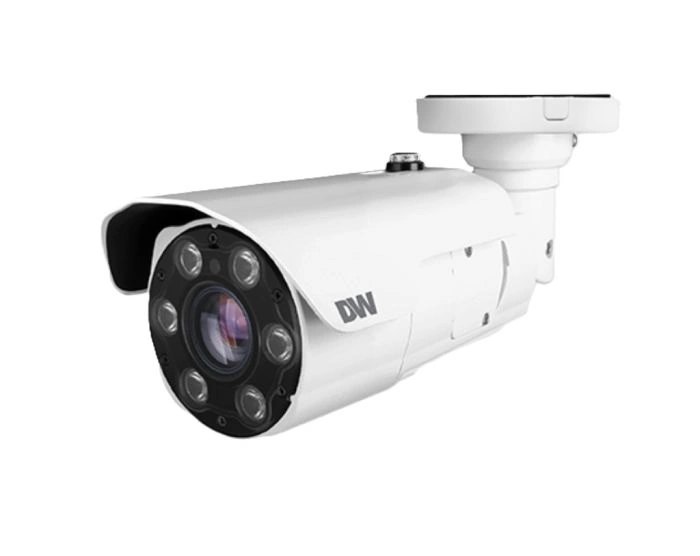

The MEGApix Ai CloudCam Weatherproof ALPR Bullet features a 5-megapixel 1/2.8-inch image sensor with a frame rate of 30 fps. It comes with 1 TB of storage and a DW Spectrum IPVMS server installed. The Ai Deep Learning technology enables the MMCR to classify vehicles by make, model, and colour across numerous brands. The ANPR optical character recognition technology can capture and read vehicle licence plates at speeds of up to 75 mph. The camera is equipped with a 6–50 mm varifocal motorised zoom lens with autofocus and a P-Iris lens. It has a 130-foot Smart IR range and supports triple codecs (H.265, H.264, and MJPEG). The camera also features Smart DNR, AGC, and AWB, as well as programmable privacy zones. It has a two-way audio feature and an alarm input and relay output. The built-in web server allows for remote access. The camera can operate in temperatures as low as -40°F (-40°C) and has a micro SD/SDHC/SDXC Class 10 card slot (card not included). It is ONVIF Profile S compliant. S, IP67. IK10, PoE+ Class 4 and DC 12 V, NDAA, TAA and UL. 5-year warranty.
