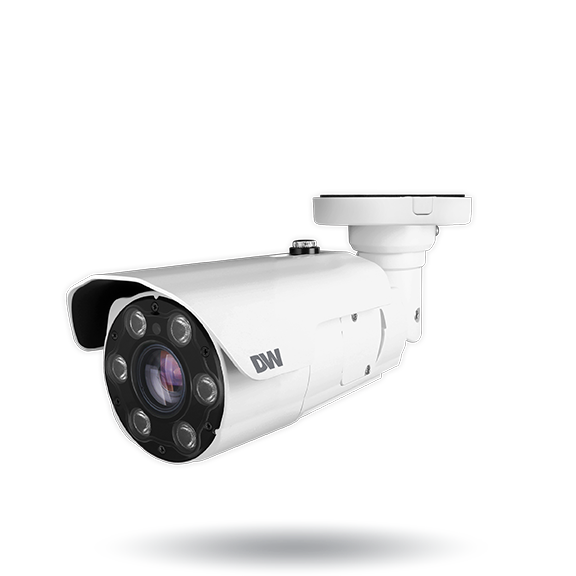

MEGApix Ai ANPR IP camera

This MEGApix Ai ANPR IP camera uses the Ai engine to detect and extract the numbers and letters in license plates at up to 75mph at 95% accuracy, converting the pixels to usable digital data.

High-resolution image with 8x optical zoom

DW’s Ai cameras deliver 5MP images in real-time at 30fps to accurately identify fast-moving vehicles and capture license plates. The Camera also supports up to 8x optical zoom, ideal for narrow field-of-view applications that focus on the vehicles’ license plates.

Hardware specialized for license plate captures

The ANPR and MMCR cameras are built specifically for numeric license plate capture. With high-resolution, long-range IR LEDs and 6-50mm lens, the cameras are ideal for recognizing the characteristics of vehicles, models, and license plate details at any lighting condition, both on color and B/W.

Image enhancement features for challenging lighting

DW’s ANPR and MMCR cameras are quipped with the latest image enhancement capabilities, reducing glare and harsh light that can interfere with the licesen plate’s details. The results are clean and clear images with 95% accuracy at capturing license plates.

Easy setup (no manual analytics calibration)

DW’s Ai allows operators to choose what to detect and where; with a user-friendly and straightforward UI, users can set up multiple scenarios specific to their monitoring needs without complex calibration.

Optimized Ai for the edge

MEGApix Ai's analytics engine is especially designed for the edge, working on the camera side to substantially reduce bandwidth consumption and accelerate response times.

Ambarella CV22 and CV25 chips with CVflow

Ambarella’s CV22 and CV25 chips combine image processing, real-time 30fps 4K and 5MP video encoding and CVflow architecture to provide the deep neural network (DNN) processing required for the next generation of intelligent IP cameras.

Ai Analytics and deep learning

DW Ai solutions include all the Intelligent Video Analytics and advanced Video Content Analysis detection capabilities of the Ai engine. In addition, Ai servers empower users with deep learning objects and people tracking and color filters.

Star-Light Plus color in darkness technology

Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

Features

• 5MP sensor at real-time 30fps
• Star-Light Plus color in near-total darkness technology
• AI Deep Learning object detection
• Create up to 40 separate detection zones.
• Easy setup with no analytics calibration
• Seamless integration and control with DW Spectrum IPVMS
• Reduce false alarms with multiple detection zones and logical rules.
• Increase your recording storage with smart recording and no false alarms.
• ANPR optical character recognition captures and reads vehicle license plates at up to 75mph speeds
• Long-range vari-focal p-iris lens with motorized zoom and autofocus for complete remote lens control and focused image any time
• True Wide Dynamic Range (WDR) for clear images in challenging light
• Simultaneous streaming and multiple codec options for smart bandwidth management
• Cold Start -40°F (-40°C), allowing the camera to power up in extremely cold environments
• 130' Smart IR with intelligent camera sync for clear B/W images with no need for external light
• Smart DNR 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
• Privacy zones cover sensitive areas in the camera's field of view.
• Two-way audio for direct communication between the monitoring station and the camera's location
• Local SD card slot for local recording in case of network loss
• Alarm sensor input and relay output for access control integration
• Web server built-in for easy camera management from any browser
• High-power PoE and DC12V for single cable simplified installation
• NDAA/TAA compliant for federal and government projects
• IP67- and IK10-rated camera housing built to last
• 5 year warranty
