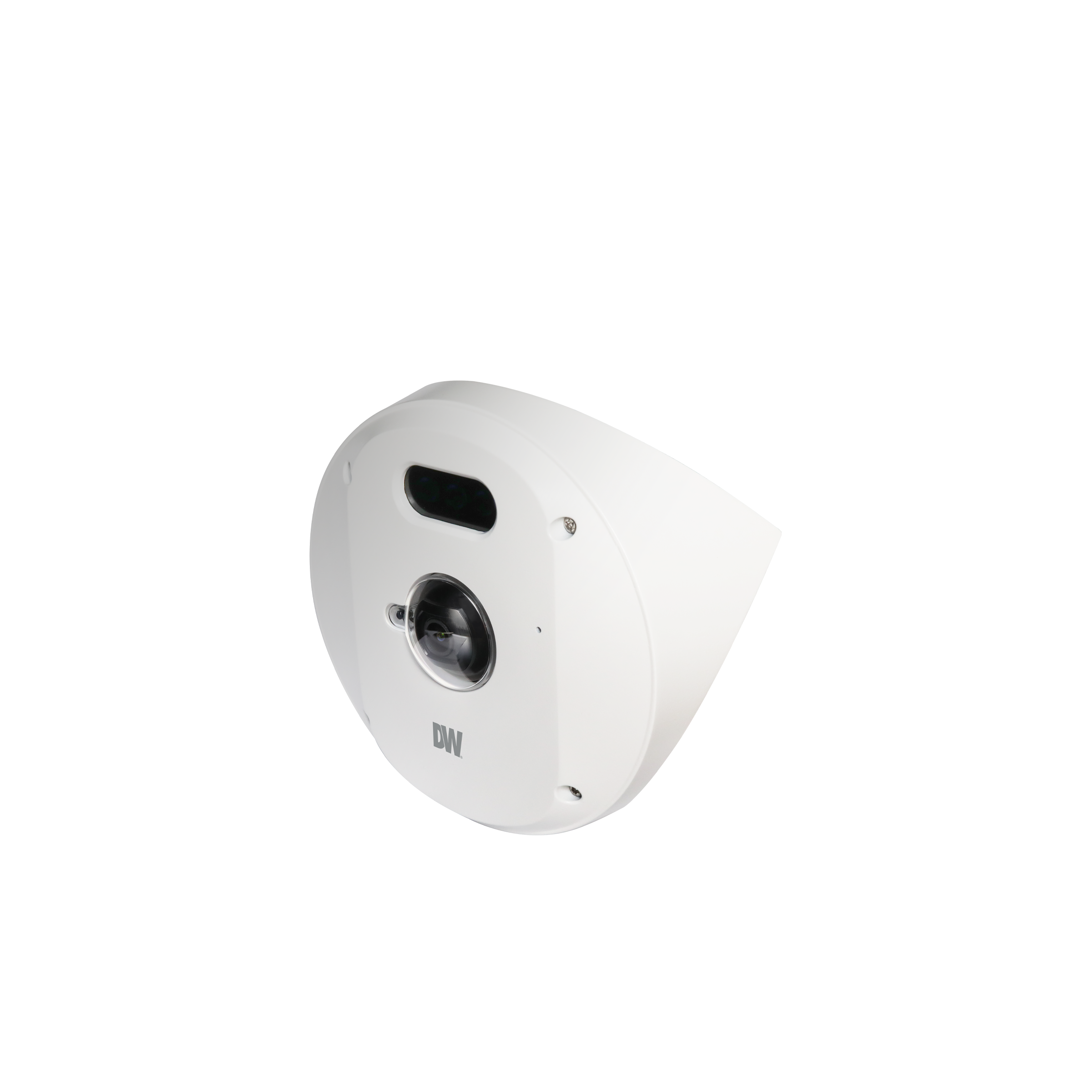

Digital Watchdog - DWC-XSCA05Bi - 5MP MEGApix Ai Corner Camera Star-Light Plus Sensor, 2.26mm Fixed Lens
• 5MP sensor at real-time 30fps
• Star-Light Plus™ color in near-total darkness technology.
• AI Deep Learning object detection.
• Seamless integration and control with DW Spectrum.
• Reduce false alarms and increase storage efficiency with multiple detection zones and logical rules.
• Mount directly to a ceiling and wall corner
• 2.26mm ultra-wide view lens for edge-to-edge image clarity without pixel loss
• 100' Smart IR™ with intelligent camera sync for clear B/W images with no need for external light
• Two-way audio with a built-in microphone for direct communication between the monitoring station and the camera's location.
• IP67- and IK10-rated camera housing built to last
| Image & Sensor | |
|---|---|
| Active Pixels | 2592 (H) x 1944 (V) |
| Frequency | 50Hz |
| Image sensor | 5MP 1/2.8" CMOS sensor Star-Light Plus™ sensor |
| Maximum resolution | 5MP |
| Minimum Scene Illumination in color | 0.0 lux (B/W) 0.05 lux (color) |
| Total Pixels | 2608(H) X 1984(V) |
| Lens | |
| Focal Length | 2.26mm |
| Horizontal Field of View (HFOV) | 124° |
| Illumination Distance | 100' range Smart IR™ |
| Lens Type | Fixed Lens |
| Vertical Field of View (VFOV) | 94° |
| I/O | |
| Event triggers | Illegal login Motion Alarm Network disconnection Schedule Sensor detection Temperature anomaly |
| I/O Alarm in/out | 1 input 1 output |
| I/O Audio in/out | 1 audio input selectable at a time 1 input (1.0Vms, 3K ohm) 1 microphone built-in 1 output |
| Intelligent Video Analytics | |
| Analytics filters | Zones and lines, tamper, metadata, intrusion, line crossing, counting, counting lines, appear, disappear, stopped, enter, exit, direction, tailgating, dwell, logical rules |
| Operational | |
| 3D digital noise reduction | Smart DNR™ 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Day and night | Auto day/night Day (color) Night (B/W) |
| De-fog | Yes |
| LPR Capture Range | Corner mounted Wall-Mounted |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included) Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Alarm output activation FTP server SD card recording |
| Privacy Zones | 16 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Anti-Flicker Auto Manual Slow Shutter |
| Shutter Speed | 1/15 ~ 1/32000 |
| Slow Shutter Speed | Off x10 x2 x3 x4 x5 x6 x7.5 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.265 (controllable frame rate and bandwidth) |
| IP | IPv4 |
| LAN | 1000Base-T (1Gbps) |
| Network resolution | H.264: 2592x1944, 2560x1440, 1920x1080, 1280x720, 800x600, 704x576, 704x480, 640x480, 640x360, 352x288, 352x240 H.265: 2592x1944, 2560x1440, 1920x1080, 1280x720, 800x600, 704x576, 704x480, 640x480, 640x360, 352x288, 352x240 MJPEG: 1920x1080, 1280x720, 800x600, 768x432, 704x576, 704x480, 640x480, 640x360, 352x288, 352x240 |
| Network Web Viewer | Google Chrome® browser Linux® OS Mac® OS Microsoft Edge® browser Mozilla Firefox® browser Safari® browser Windows OS |
| Protocol | DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) |
| Security | 802.1x Digest authentication (ID/PW) HTTPS (TLS) IP filtering |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Triple Streaming (3rd stream MJPEG only) |
| Video Bitrate | 100Kbps ~ 25Mbps, multi-rate for preview and recording |
| Video Compression Type | H.264 H.265 MJPEG |
| Video Management Software | Any ONVIF conformant CMS DW Spectrum® |
| Environmental | |
| Compliance | CE FCC NDAA Comp ONVIF TAA Compliance UL Listing |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Environmental Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Mechanical | |
| Camera Dimensions (H X W X D) | 7.55" x 3.9" (192 x 99.3mm) |
| Camera Weight | 3.08 lbs (1.4 kg) |
| Housing Color | White |
| IK rating | IK10 Rated |
| IP rating | Weather Resistant (IP67) |
| Materials | Aluminum die-casting |
| Electrical | |
| American wire gauge (AWG) | 70M Cable type #18 |
| Power Consumption | PoE: max 8.0W |
| Power Requirements | Adapter not included PoE |
| General | |
| Warranty | 5 Year Warranty |
This NDAA/TAA-compliant, 5MP corner-mount camera combines discreet installation with powerful edge AI object identification. Its robust IP67/IK10 housing and optimised IR design ensure clear, reflection-free video in real time, making it ideal for high-security interior and exterior corners.
