TRENDNET - TI-M6024 - DIN Rail 24V 60W Power Supply for TI-G50, TI-G62, TI-G80, TI-F11SFP

Name: TRENDNET - TI-M6024 - DIN Rail 24V 60W Power Supply for TI-G50, TI-G62, TI-G80, TI-F11SFP
Brand: Trendnet
SKU: TI-M6024

Part number:

TI-M6024

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

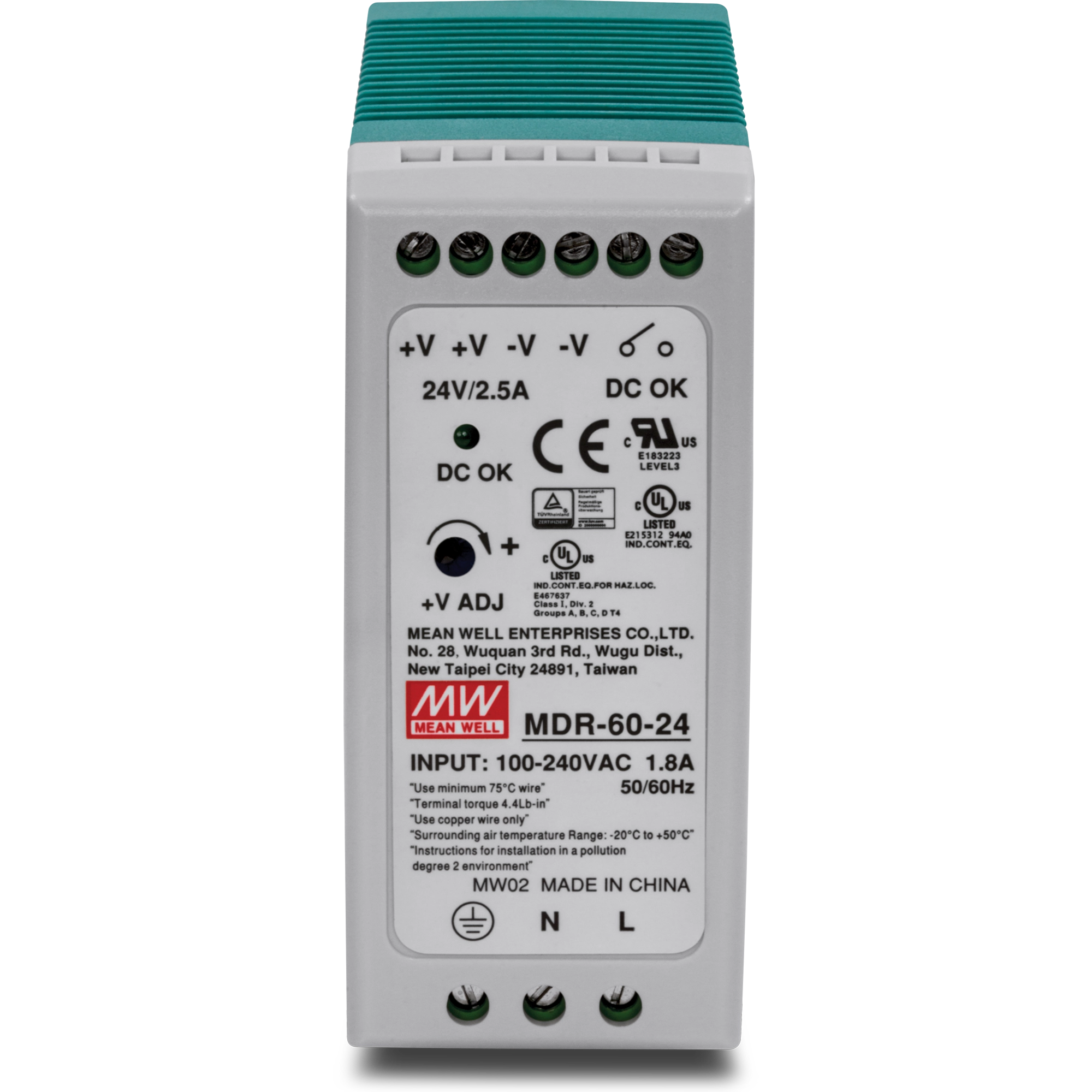

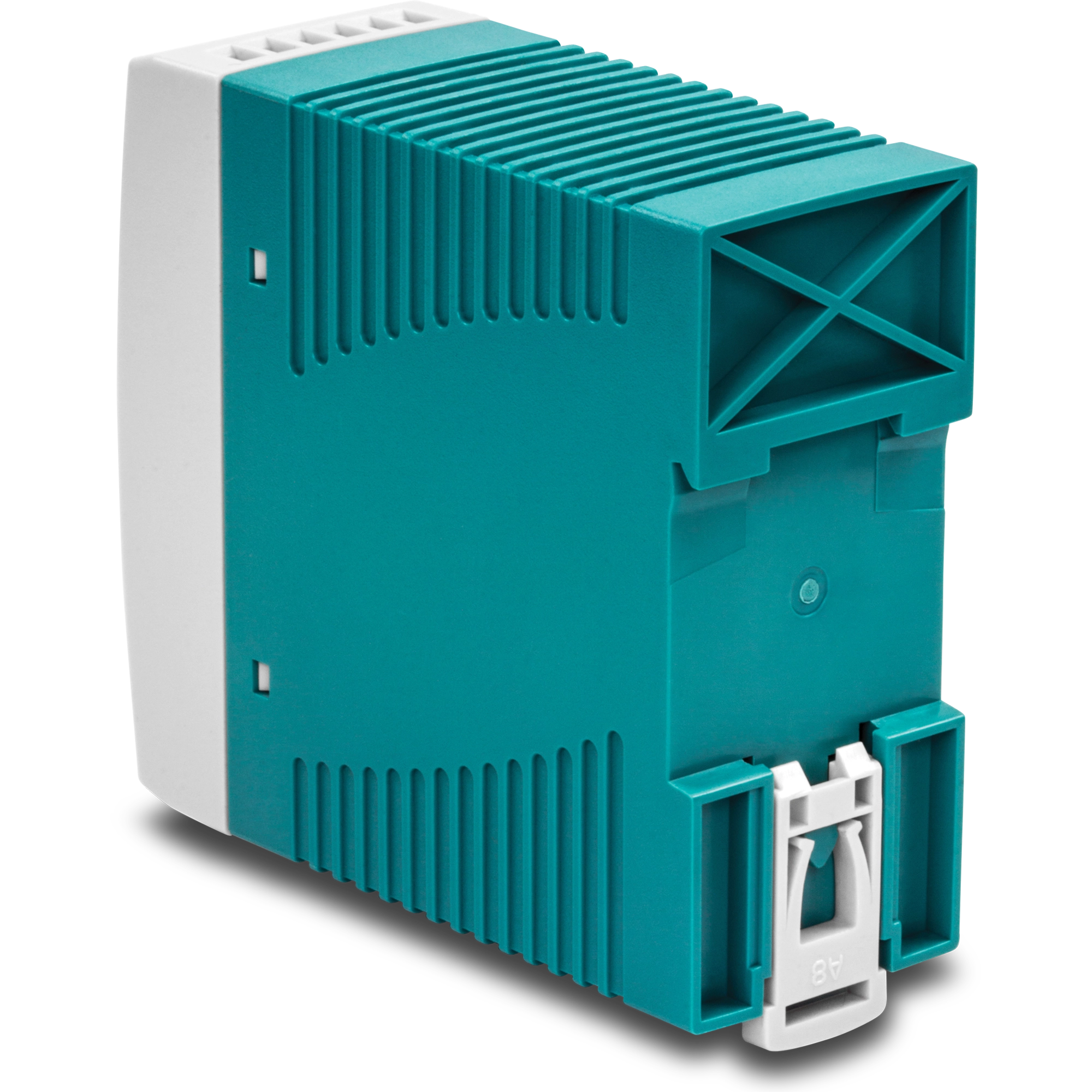

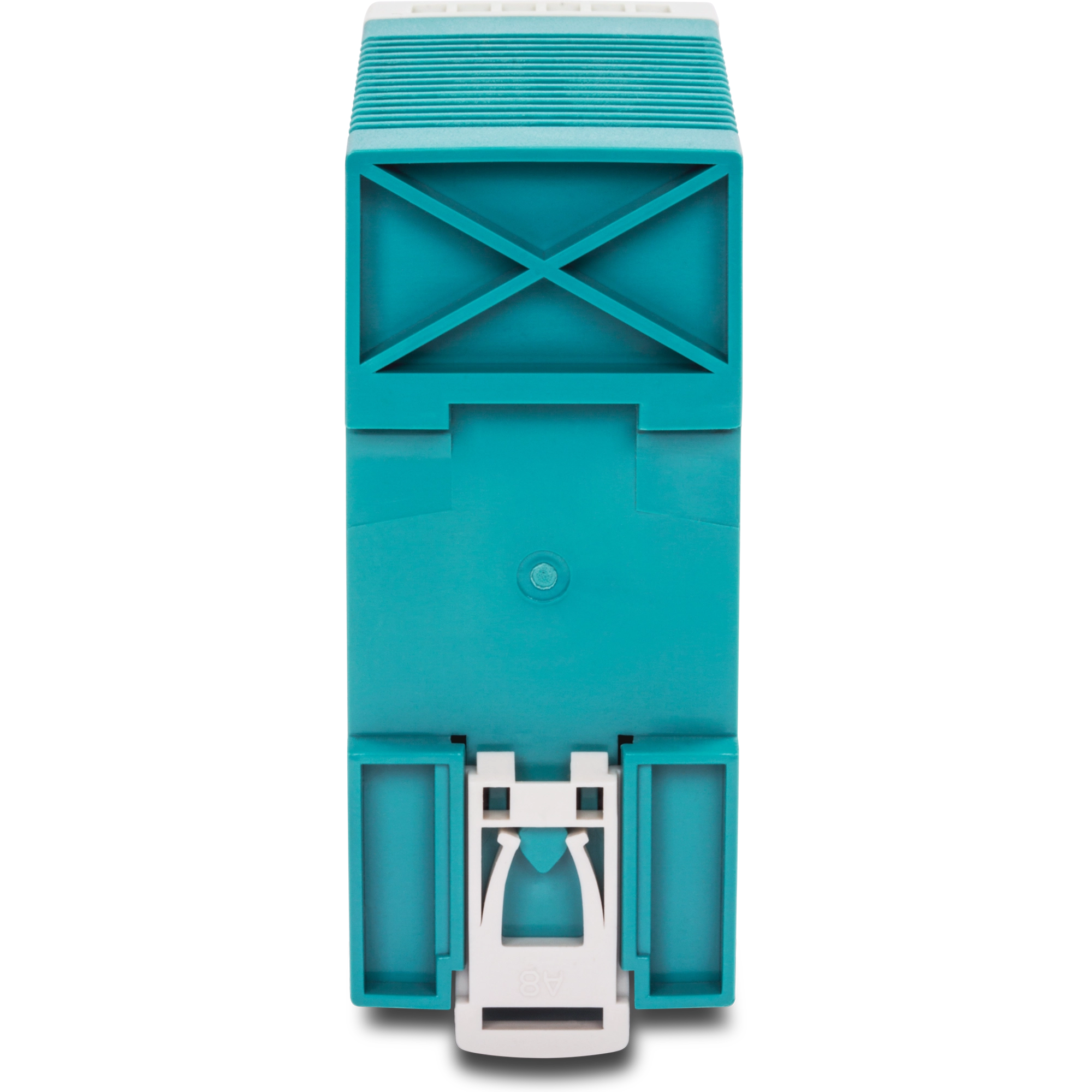

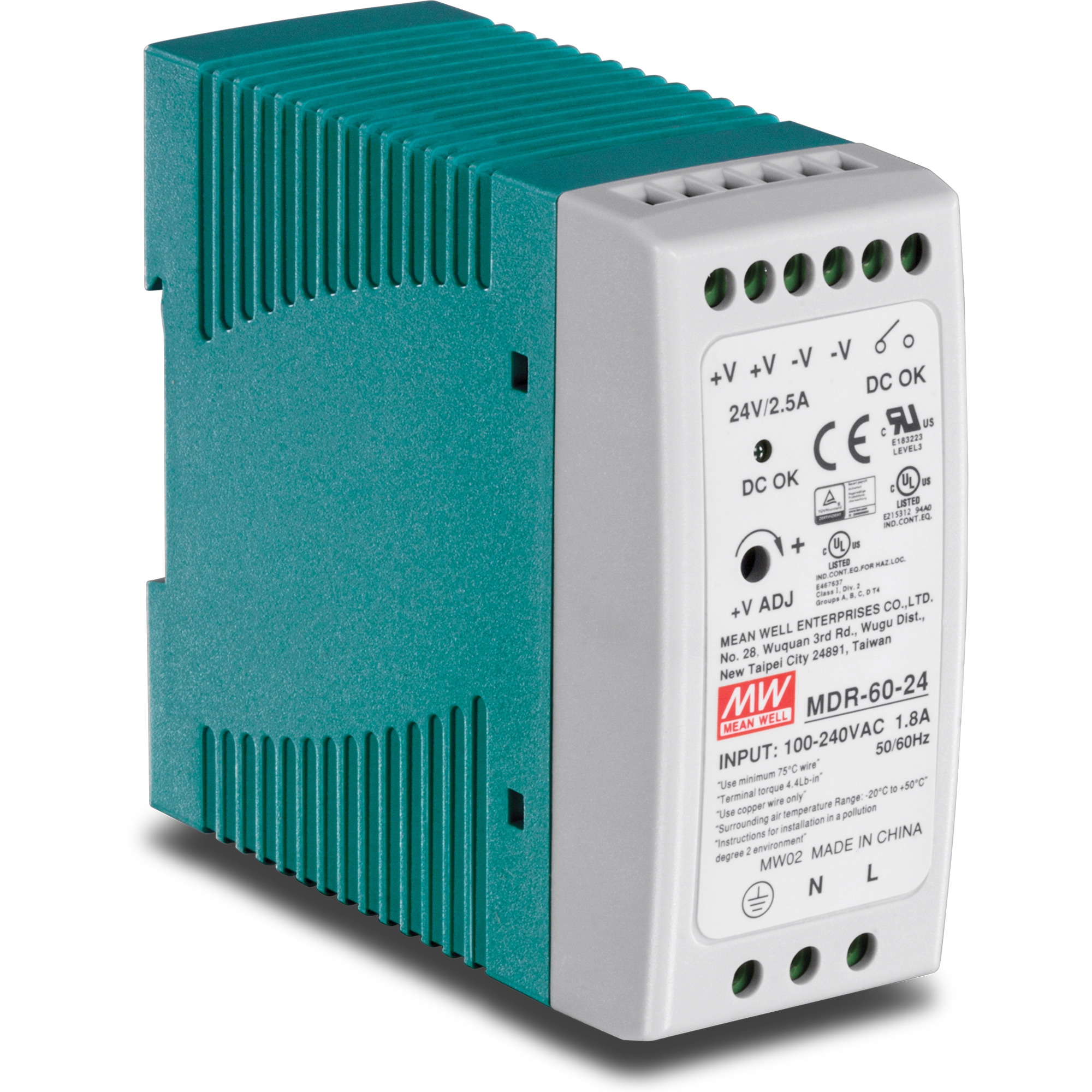

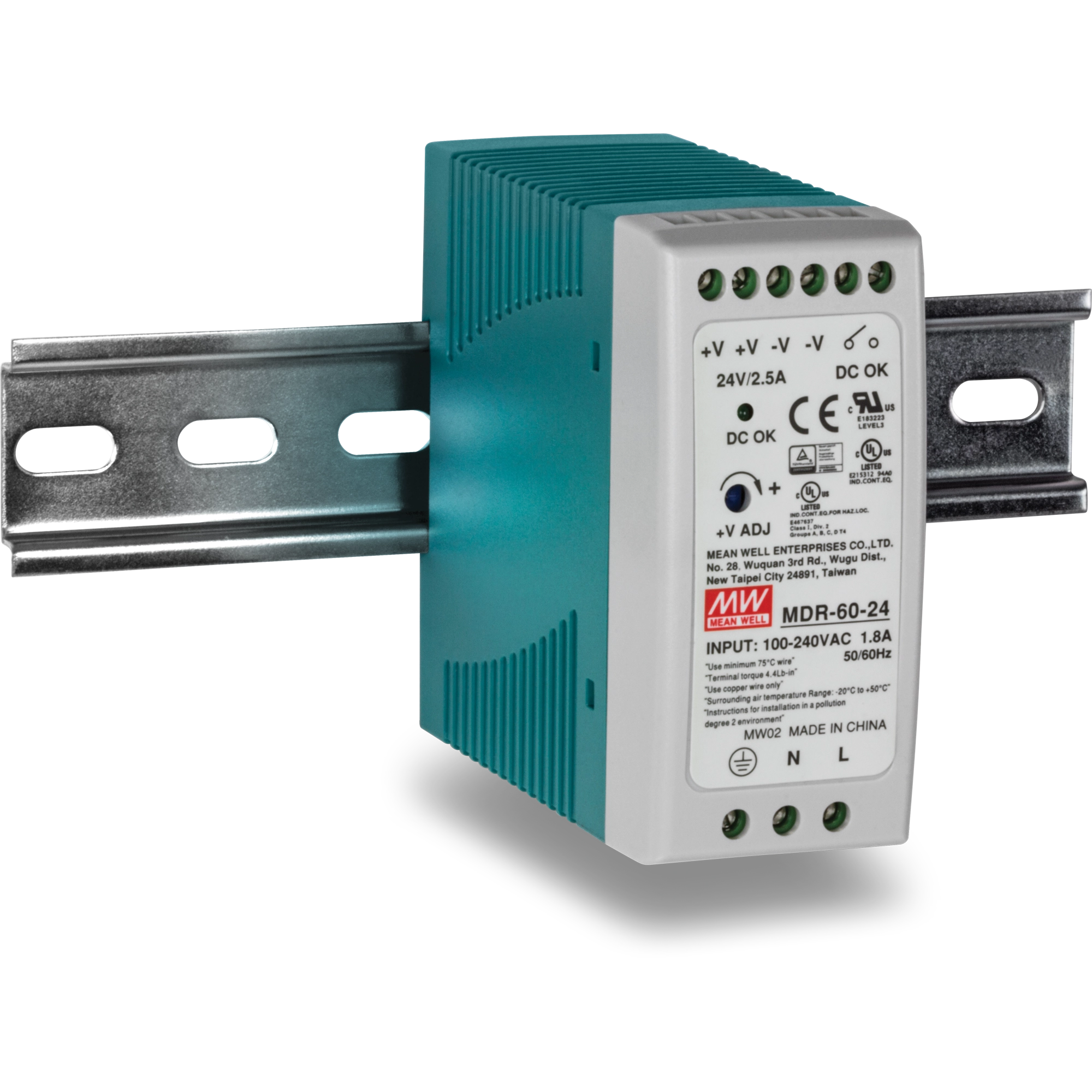

TRENDnet's 60 W Single Output Industrial DIN-Rail Power Supply, model TI-M6024 (Mean Well MDR-60-24), supplies up to 60 Watts of power to industrial PoE equipment such as switches, network cameras, and WiFi access points. This power supply comes with an integrated DIN-rail mount and overload current protection.

Features:

Industrial power supply with integrated DIN-rail mount
Provides up to 60 Watts of power (24 V, 2.5 A)
Universal AC input
Short circuit/overload/over voltage protection
UL 508 approved
100% full load burn-in test
Extreme -20 to 70 °C (-4 to 158 °F) operating temperature range
NDAA / TAA compliant

Technical Specifications
Interface	Input: 100-240 V AC, 50/60 Hz, 1.8 A 120-370 V DC Output: 60 Watts, 24 V, 2.5 A DIN rail: TS-35/7.5 or 15
Housing	Metal case DIN-rail mount LED indicator confirms power to the unit
Special Features	DC OK relay contact Short circuit/overload/over voltage protection Protection type: shut down and repower
Operating Temperature	- 20 to 70 °C (- 4 to 158 °F)
Operating Humidity	Max. 90 % non-condensing 2,992,000 hours
Dimensions	40 x 100 x 90 mm (1.6 x 3.9 x 3.5 in.)
Weight	300 g (10.6 oz.)
Certifications	CE UL 508 UL 60950-1 CB 60950-1 TUV EN60950-1 Class I, Div. 2 hazardous locations T4
Warranty	1 year

Name

Description

Size

Downloads

File

Datasheet

1.4mb
