TRENDNET - TI-S12048 - DIN Rail 48V 120W Power Supply for TI-PG541
Part number:
TI-S12048
Price:

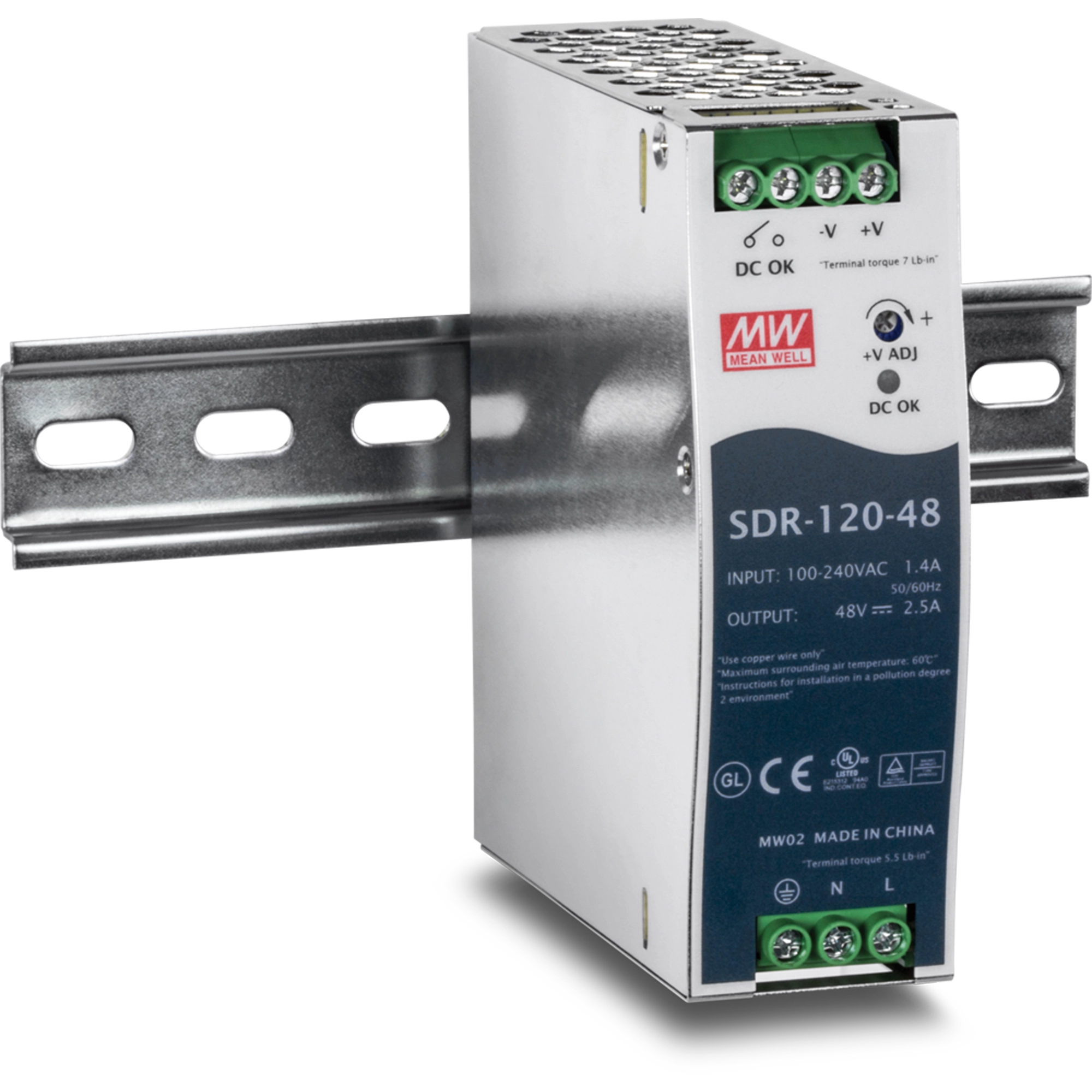

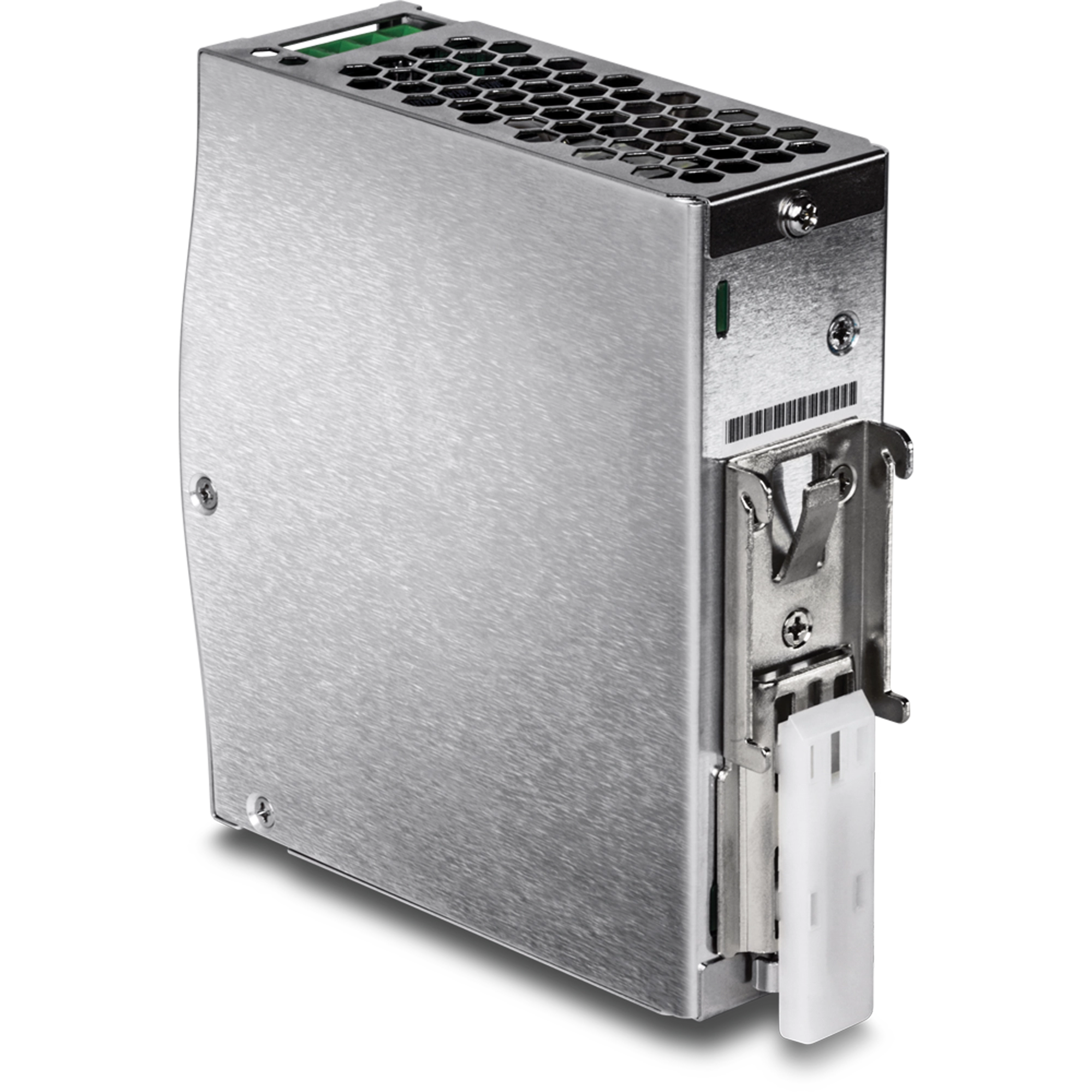

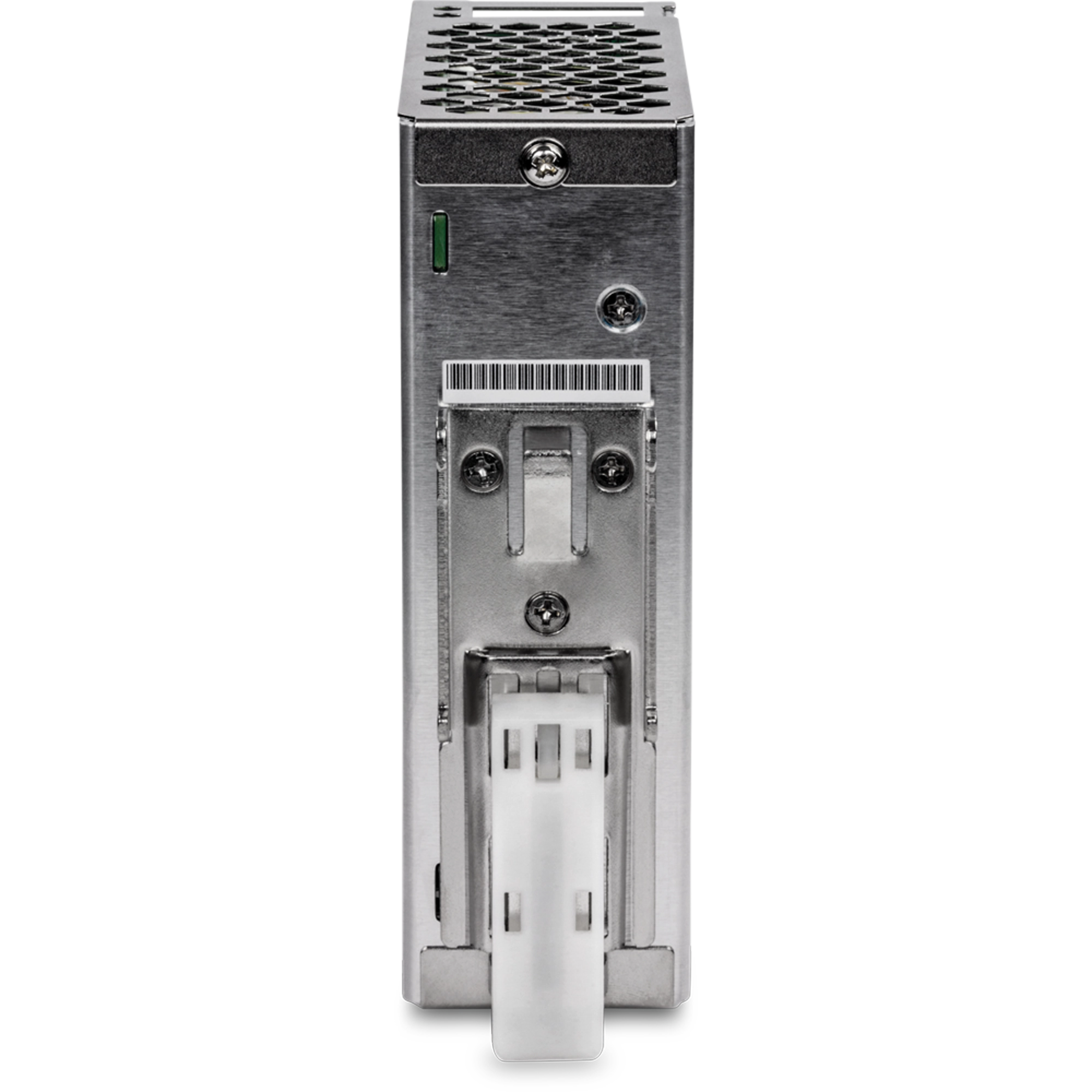

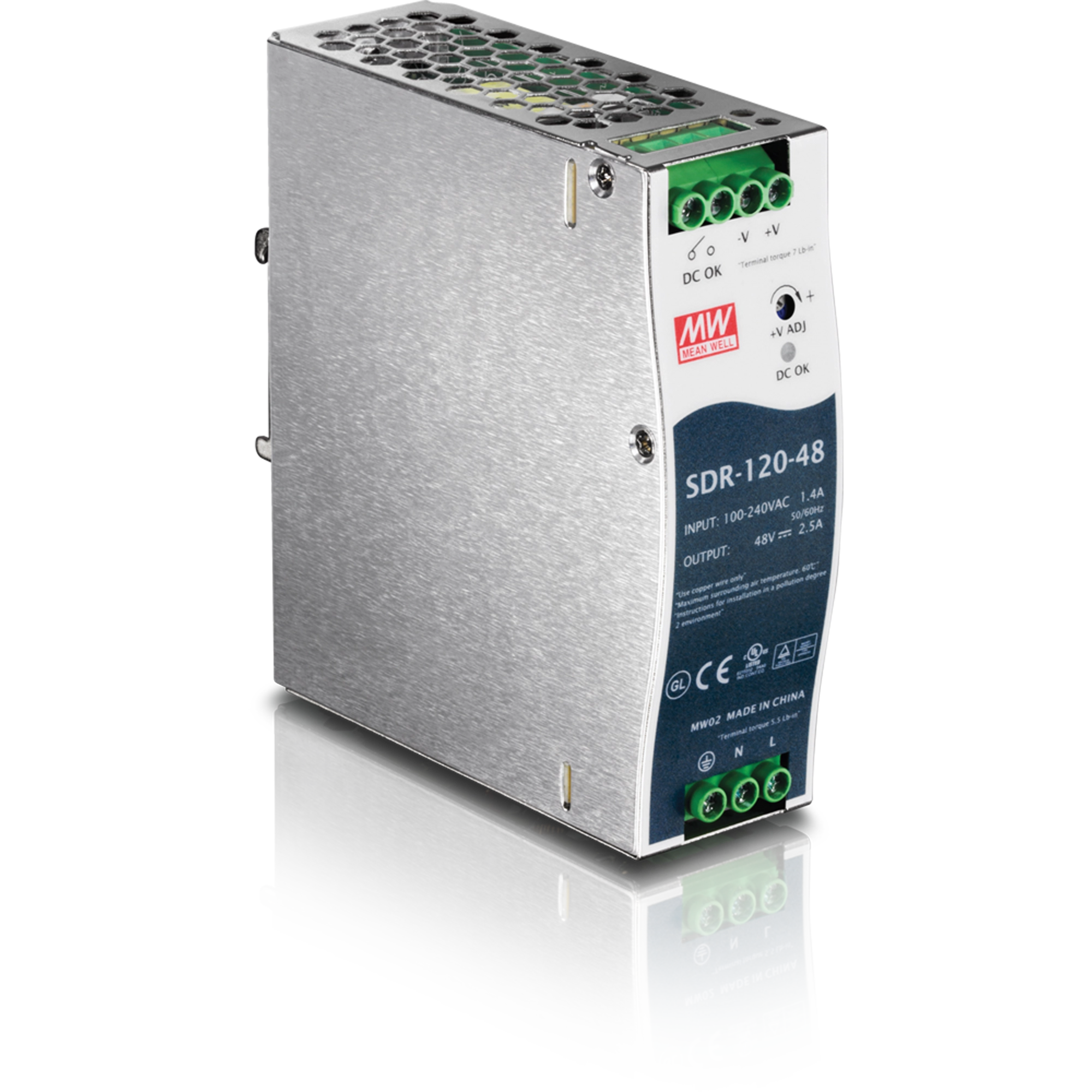

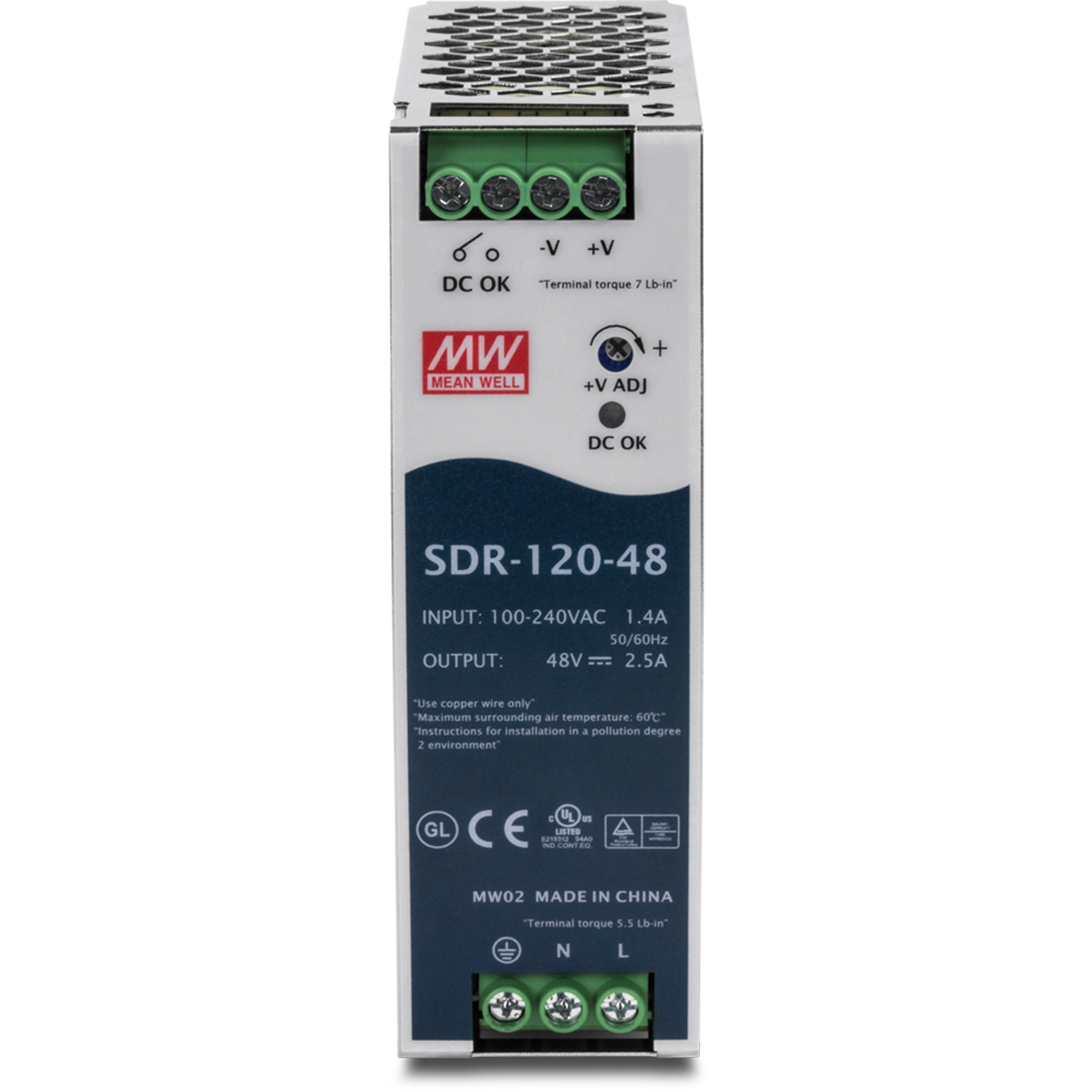

TRENDnet's high efficiency 120 W Single Output Industrial DIN-Rail Power Supply, model TI-S12048 (Mean Well SDR-120-48), supplies up to 120 Watts (48 V, 2.5 A) of power to industrial PoE equipment such as switches, network cameras, and WiFi access points. This power supply comes with active PFC, an integrated DIN-rail mount, and overload current protection.


Features:

  • Industrial power supply with integrated DIN-rail mount
  • Provides up to 120 Watts of power (48 V, 2.5 A)
  • Built-in active PFC (PF > 0.93)
  • Short circuit/overload/over voltage/over temperature protection
  • High efficiency (91%) design
  • UL 508 approved
  • 100 % full load burn-in test
  • Extreme -25 to 70 °C (-13 to 158 °F) operating temperature range
  • NDAA / TAA compliant
Technical Specifications
Interface
  • Input: 100-240 V AC, 50/60 Hz, 1.8 A 125-370 V DC
  • Output: 120 Watts, 48 V, 2.5 A
  • DIN-rail: TS-35/7.5 or 15
Housing
  • Metal case
  • DIN-rail mount
  • LED indicator confirms power to the unit
Special Features
  • DC OK relay contact
  • 150% peak load capacity
  • Short circuit/overload/over voltage/over temperature protection
  • Protection type: shut down and repower
Operating Temperature
  • - 25 to 70 °C (- 13 to 158 °F)
  • Max. 95 % non-condensing
MTBF
  • 2,899,000 hours
Dimensions
  • 40 x 125 x 114 mm (1.6 x 4.9 x 4.5 in.)
Weight
  • 670 g (23.6 oz.)
Certifications (Mean Well)
  • CE
  • UL 508CB 60950-1
  • TUV EN60950-1
Warranty
  • 1 year
