TRENDNET - TI-S24048 - DIN Rail 48V 240W Power Supply for TI-PG80
Part number:
TI-S24048
Price:

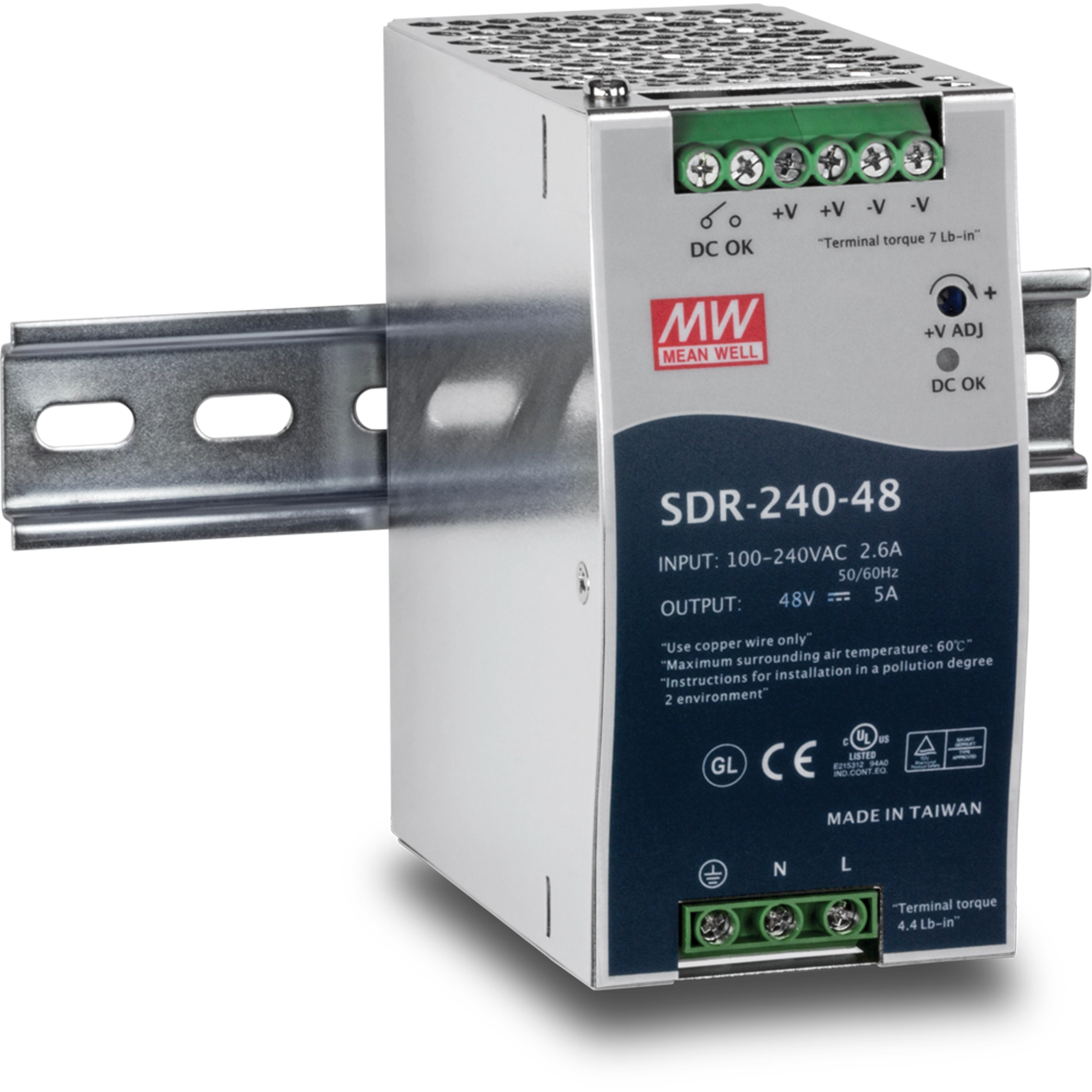

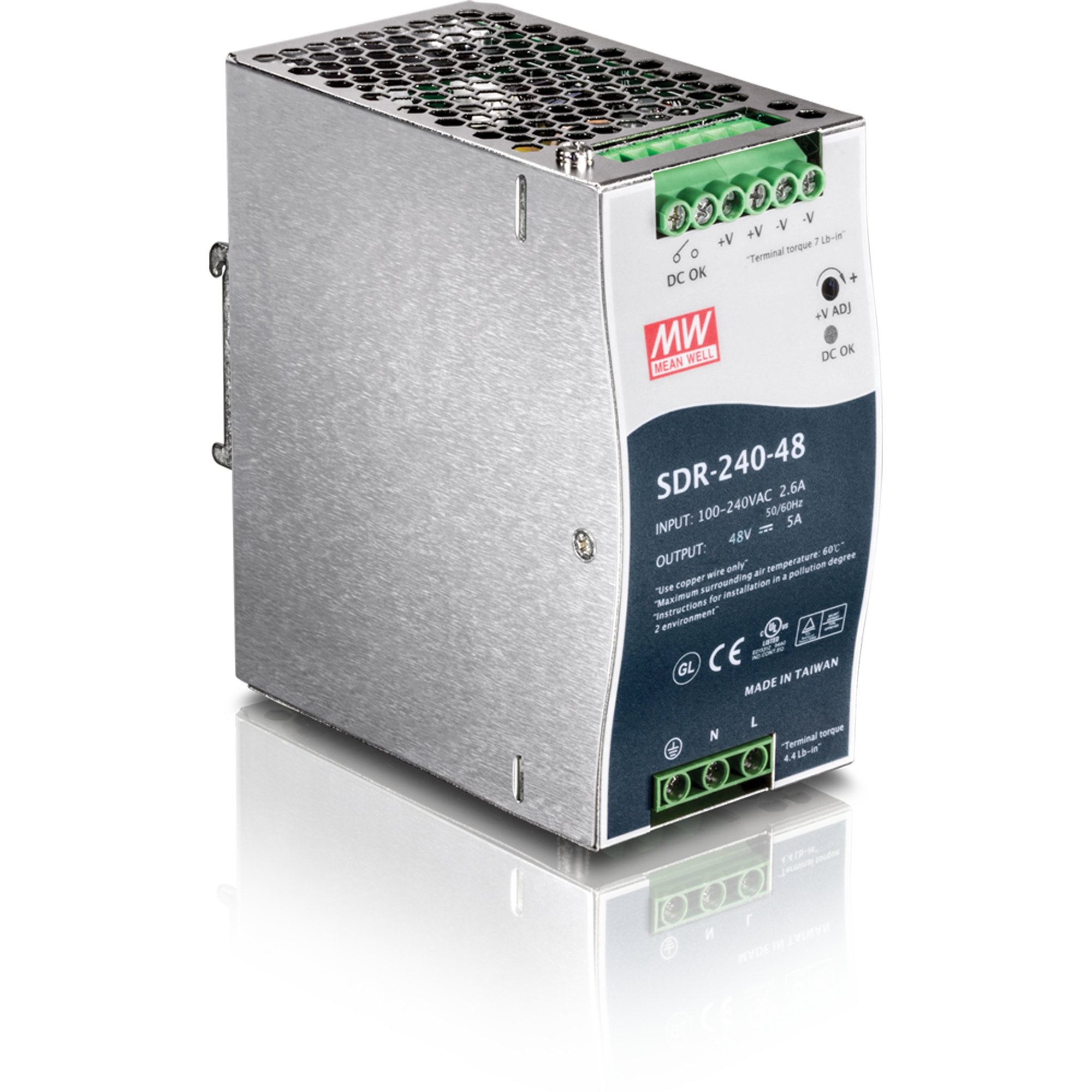

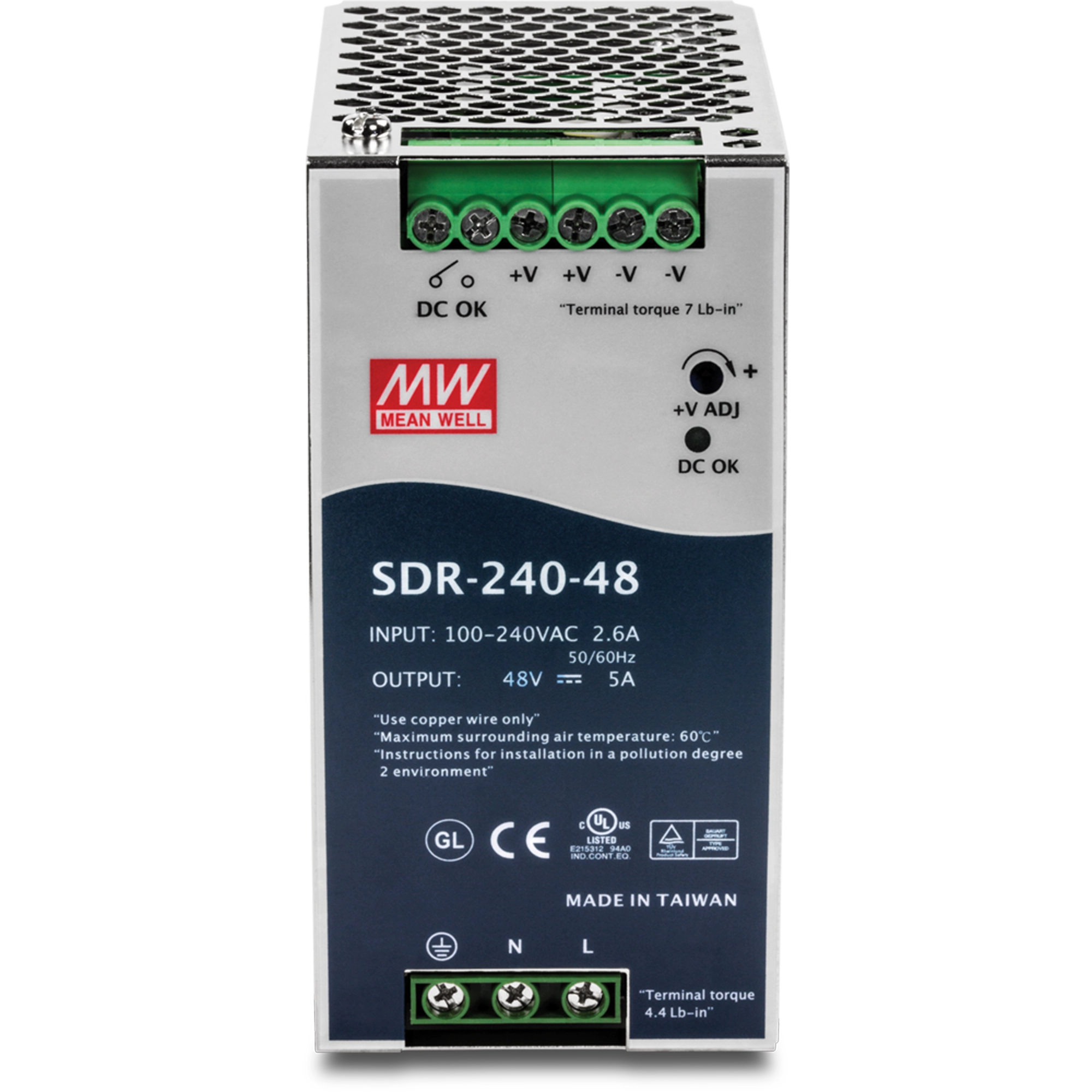

TRENDnet's high efficiency 240 W Single Output Industrial DIN-Rail Power Supply, model TI-S24048 (Mean Well SDR-240-48), supplies up to 240 Watts (48 V, 5 A) of power to industrial PoE equipment such as switches, network cameras, and WiFi access points. This power supply comes with active PFC, an integrated DIN-rail mount, and overload current protection.


Features:

  • Industrial power supply with integrated DIN-rail mount
  • Provides up to 240 Watts of power (48 V, 5 A)
  • Built-in active PFC (PF > 0.93)
  • Short circuit/overload/over voltage/over temperature protection
  • High efficiency (94%) design
  • UL 508 approved
  • 100 % full load burn-in test
  • Extreme -25 to 70 °C (-13 to 158 °F) operating temperature range
  • NDAA / TAA compliant
Technical Specifications
Interface
  • Input: 100-240 V AC, 50/60 Hz, 1.8 A 125-370 V DC
  • Output: 240 Watts, 48 V, 5 A
  • DIN-rail: TS-35/7.5 or 15
Housing
  • Metal case
  • DIN-rail mount
  • LED indicator confirms power to the unit
Special Features
  • DC OK relay contact
  • 150% peak load capacity
  • Short circuit/overload/over voltage/over temperature protection
  • Protection type: shut down and repower
Operating Temperature
  • - 25 to 70 °C (- 13 to 158 °F)
  • Max. 95 % non-condensing
MTBF
  • 1,693,000 hours
Dimensions
  • 63 x 125 x 114 mm (2.4 x 4.9 x 4.5 in.)
Weight
  • 1.03 kg (2.3 lbs.)
Certifications (Mean Well)
  • CE
  • UL 508CB 60950-1
  • TUV EN60950-1
Warranty
  • 1 year
