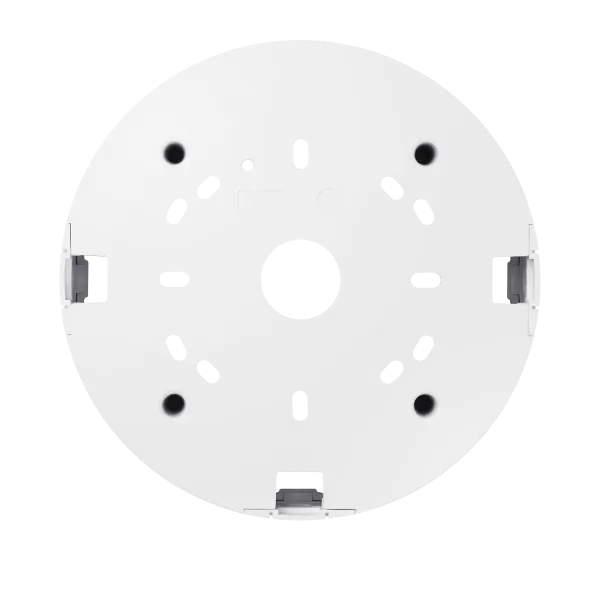

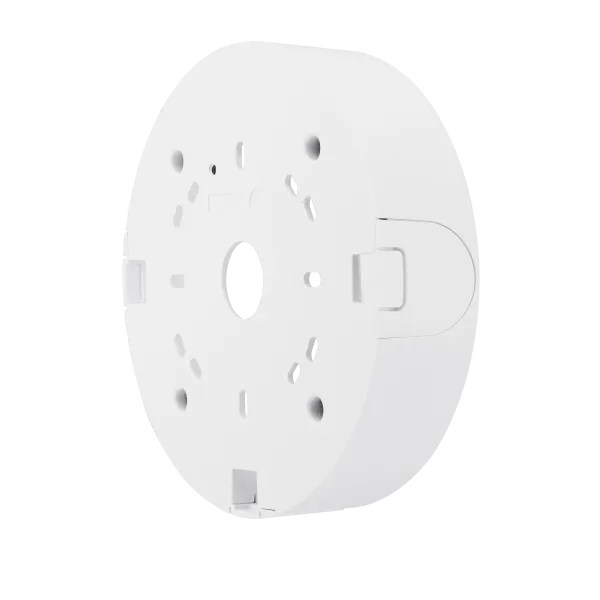

Hanwha - SBV-160BW - Dome Back Box
Part number:
SBV-160BW
Price:
White Back Box, Compatible with: XNF-9010RV/RVM, and all indoor X-Plus cameras (XND)
| Environmental | |
| Operationg Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 100% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 100% RH |
| Mechanical | |
| Color | White |
| Material | Aluminum |
| RAL code | RAL9003 |
| Product dimensions / weight | Ø162.8x40.0mm(6.41x1.57"), 360g(0.79 lb) |
| Conduit hole | 19.1mm (3/4") (M25) |
| Supported products | XNF-9010RV/RVM, XND-9082RV, XND-8082RV, XND-6081RV/6081REV, XND-8081RV/8081ERV, PND-A9081RV ※ For further compatible models, please visit our website or use Toolbox |
