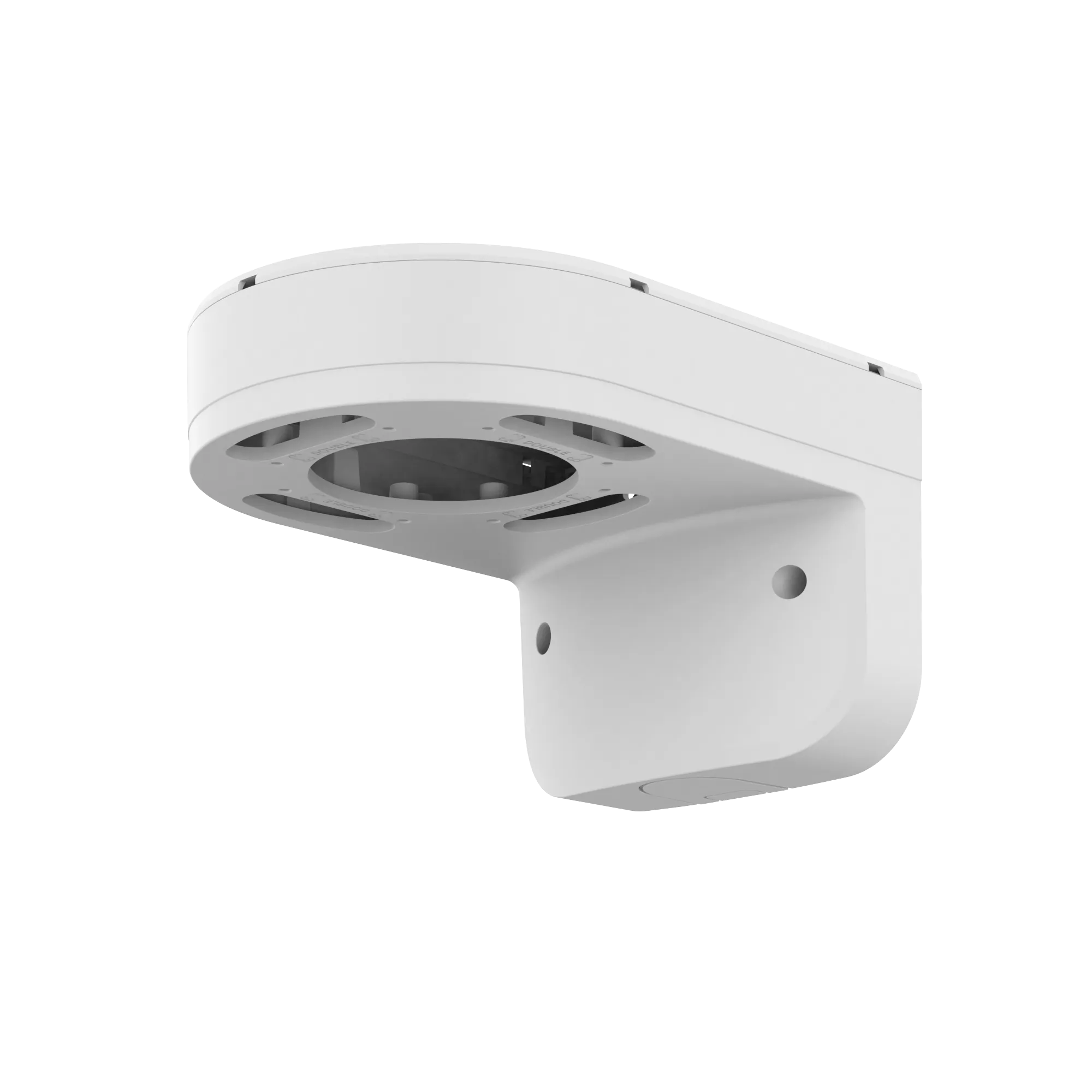

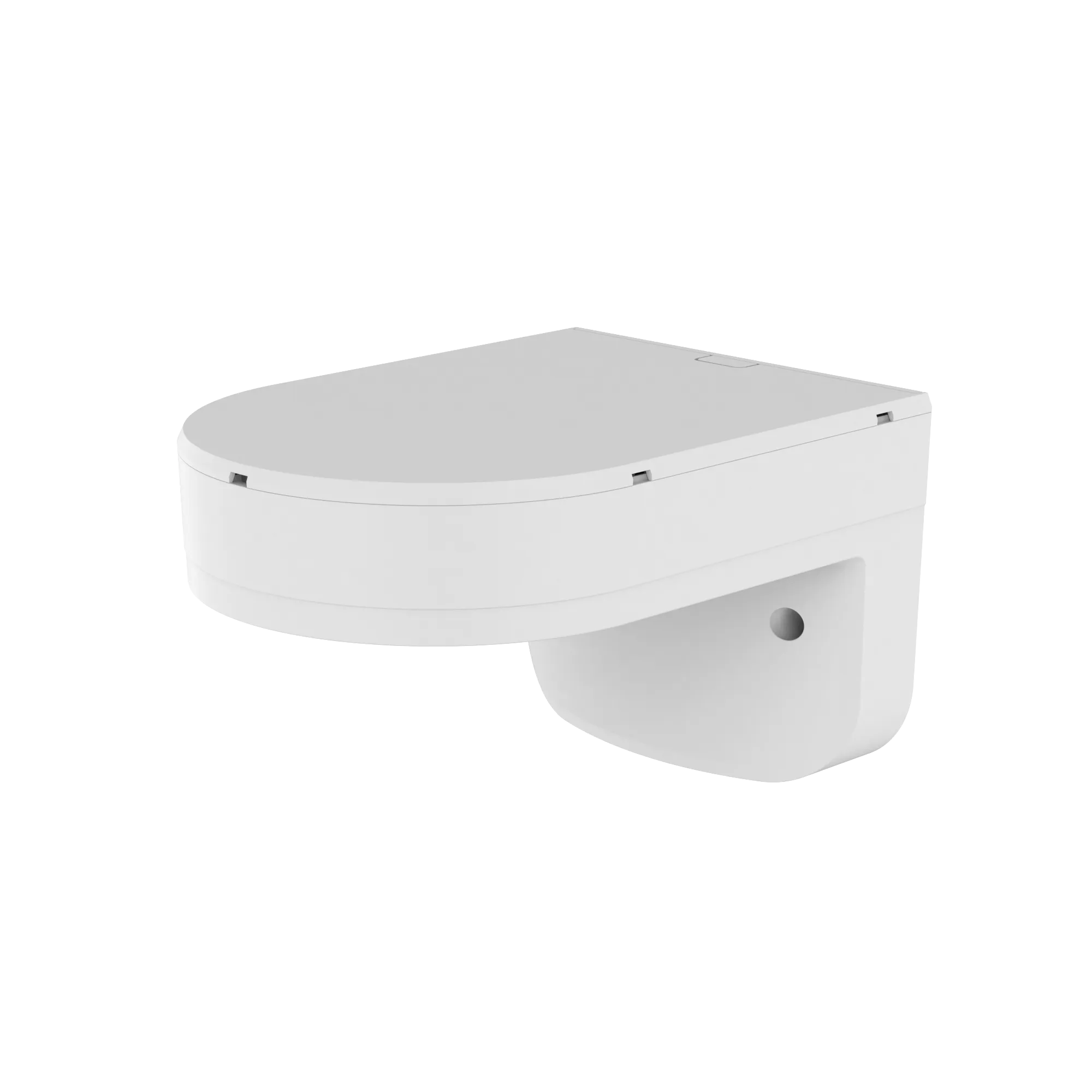

Hanwha - SBP-140WMW - Wall and Pole Mount
Part number:
SBP-140WMW
Price:

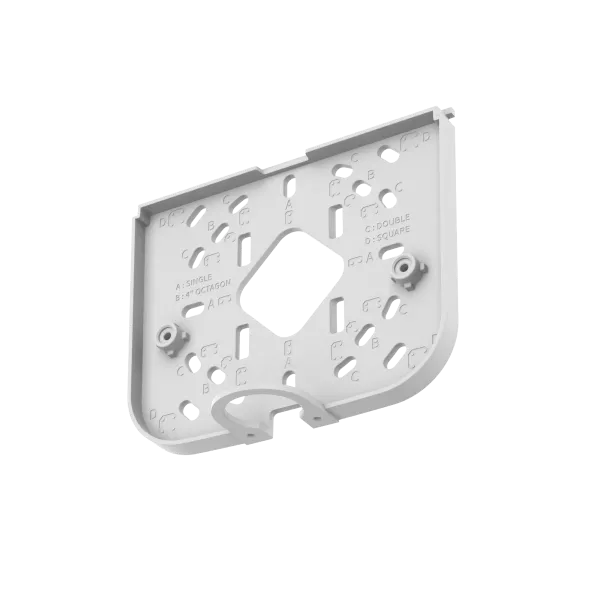

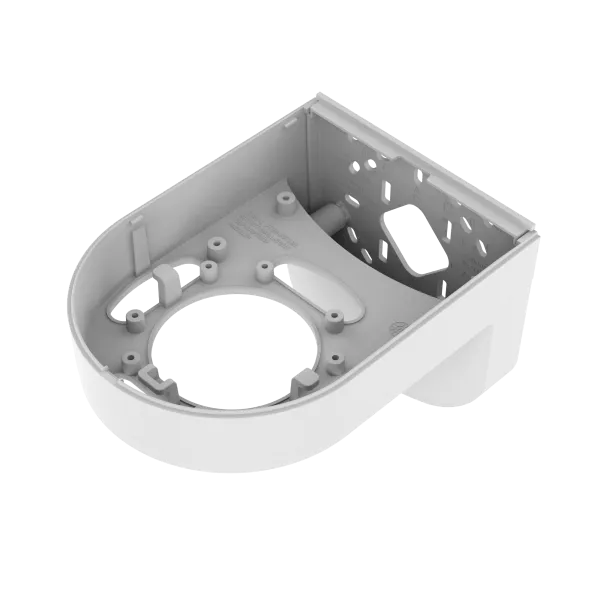

The Hanwha SBP-140WMW is a commercial-grade, heavy-duty wall and pole mount bracket kit designed for QNV-C8083R and QNV-C9083R series cameras. It features an integrated junction box base that simplifies surface-run conduit routing and ensures a weather-sealed enclosure for secure cable management. The kit includes a dedicated mounting plate that supports direct installation onto single, double, 4" octagon, and square gangboxes. For pole-mount applications, it is compatible with optional SBP-150S or SBP-060S stainless steel straps (sold separately).
| Material | Aluminum |
| Finish | White |
| Dimensions | 5.91" × 6.22" × 10.45" (150.0 × 158.0 × 265.5 mm) |
| Weight | 3.53 lbs (1.6 kg) |
| Load Capacity | Up to 11.02 lbs (5 kg) |
| Conduit Interface | Integrated 3/4" NPT side and bottom conduit knockouts |
Name
Description
Size
Downloads
File
Manual
2mb
File
Compliant Product List
0.8mb
