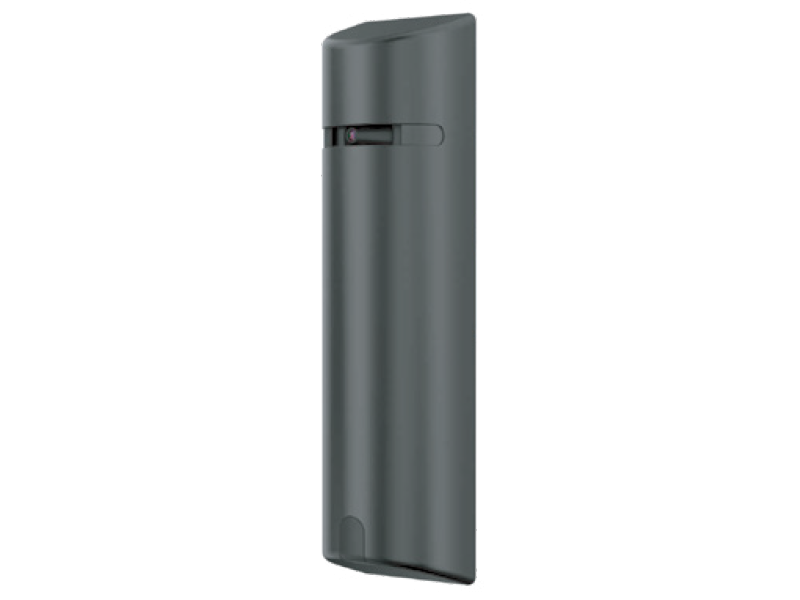

Hanwha - SLA-T4680D - Door Jamb head with a 4.6mm lens, compatible with XNB-6001 (not included) 8m (26 feet) cable, black color
Part number:
SLA-T4680D
Price:
Door Jamb head with a 4.6mm lens, compatible with XNB-6001 (not included) 8m (26 feet) cable, black color.
Features:
- Compatible with XNB-6001 not included
- 2 Megapixel (1920 x 1080) resolution
- 4.6mm pinhole lens
- 0.06Lux@F2.5
- 8m cable
- Easy installation
- Flexible planning ± 30 degrees
- Multiple housing color options to match the door jamb
- Hidden security screw for discrete look
- Includes lens & housing
| VIDEO | |
| Imaging Device | 1/2.8" 2M CMOS |
| Total Pixels | 1,945(H) x 1,109(V) 2.16M |
| Effective Pixels | 1,945(H) x 1,097(V) 2.13M |
| Scanning System | Progressive Scan |
| Min. Illumination | Color : 0.06Lux (F2.5) | B/W: 0.06Lux (F2.5) |
| S / N Ratio | 50dB |
| Wide Dynamic Range | 120dB |
| Day & Night | Electrical |
| LENS | |
| Focal Length (Zoom Ratio) | 4.6mm |
| Max. Aperture | F2.5 |
| Angular Field of | H : 73° / V : 39° / D : 85° |
| Min. Object Distance | 0.98ft (0.3m) |
| Lens Type | |
| Mount Type | RJ12 connected with main unit |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) /Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) /Less than 90% RH |
| MECHANICAL | |||||||||||||||||
| Color / Material |
| ||||||||||||||||
| Dimensions (WxHxD) |
| ||||||||||||||||
| Weight | 0.68 lb (310g) |
