Product Overview

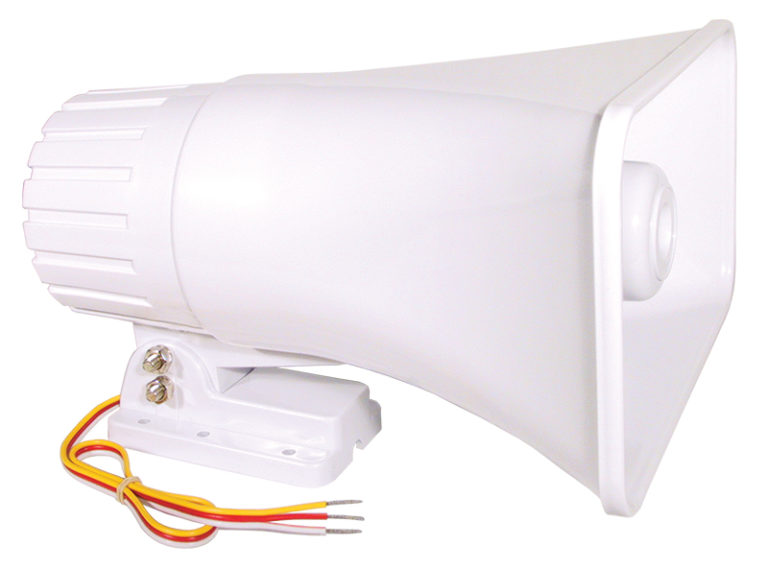

ELK self-contained horn siren rated at 30 watts with two selectable tones: yelp and steady. Pre-wired for easy installation, it is suitable for interior or exterior use. UL-listed with a lifetime limited warranty.
Key Configuration
- • Power rating: 30 watts
- • Tones: yelp and steady (two-tone selectable)
- • Type: self-contained horn siren
- • Installation: pre-wired for easy installation
- • Mounting: easy to mount; interior or exterior use
| Operating Voltage | 12 Volts DC |
| Sound Level | 122 db @ 1 meter, 13.8vdc |
| Current Draw | 1A @ 13.8vdc |
| Operating Temperature Range | 4° to 140° F (-20° to 60° C) |
| Size | 8" x 4.7" x 9.6 deep" (200mm x 120mm x 245mm) |
| Color | White |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
