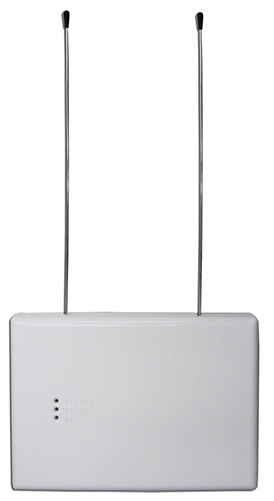

The ELK-M1XRFEG is a Wireless (RF) Receiver and Input Expander for use with the ELK-M1 and ELK-M1EZ8 Controls. The receiver connects to the four (4) wire data (keypad) bus of the control and integrates in much the same way as a M1XIN hardware zone expander except that a single M1XRF can handle up to 144 wireless zones (e.g. transmitter sensors or points).

The M1XRFEG receiver is a dual (2) antenna, phase diversity design capable of long range wireless coverage. It is compatible with ELK's 319 Series Wireless Sensors, as well as other 319.5MHz sensors (Interlogix format).

Features:

• Adds up to 144 individual wireless zones (sensors/points)
• Operates from the 4 wire RS485 Data Bus
• Additional Receivers (up to 9) may be Connected to a single M1 or M1EZ8 Control for redundancy or greater coverage
• Flash Memory for Updating of operating Firmware

What's Included:

• M1 Wireless Receiver 319.5MHz One-Way Sensors
• Plastic Housing
• 2 Antenna
• 4 #6 Plastic Anchors
• 4 # 6 Pan Head Sheet Metal Screws
• Instructions
