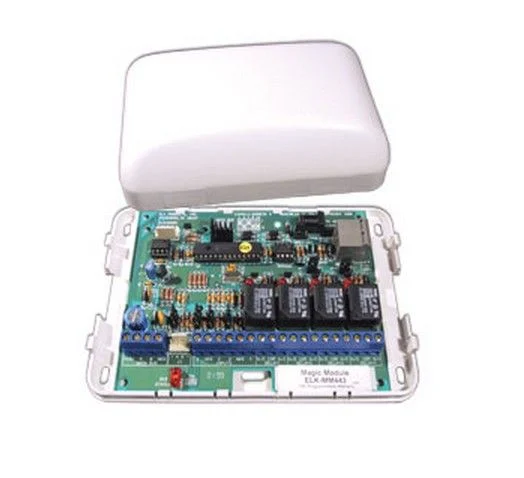

ELK - MM443 - Magic Module Programmable Controller, 4 Inputs/4 Outputs

Product Overview

The ELK MM443 Magic Module is a programmable controller designed for automation, security, timing, and door control applications. It provides four configurable inputs, four relay outputs, RS-485 networking, X-10 Power Line Carrier support, and PC-based programming stored in non-volatile EEPROM memory.

Key Configuration

Programmable controller with four analog or digital inputs and four relay outputs; supports up to 16,384 program bytes using SIMPLE programming language; includes four counters and four timers; networks with PCs and other ELK-MM443 units over RS-485 communication.

Key Features

• Four inputs support analog or digital signal applications
• Four relay outputs can also be configured as transistor open-collector outputs
• Timers range from 1/10 second to over 255 hours for precise control scheduling
• RS-485 networking supports scalable connection with PCs and other MM443 units
• Non-volatile EEPROM memory retains programmed commands during power loss

Technical Context

The MM443 uses SIMPLE programming language and provides 16,384 program bytes for creating control logic. It supports X-10 Power Line Carrier devices, analog MM443-to-MM443 communication, preset dim commands, and Dallas iButton TouchKey identification when paired with optional interfaces.

Installation Notes

The controller can be mounted in single-gang or double-gang electrical boxes, on optional DIN rail, or in 4-inch SnapTrack using the PCB mounting option. Programming is performed from a personal computer and stored in EEPROM memory.
