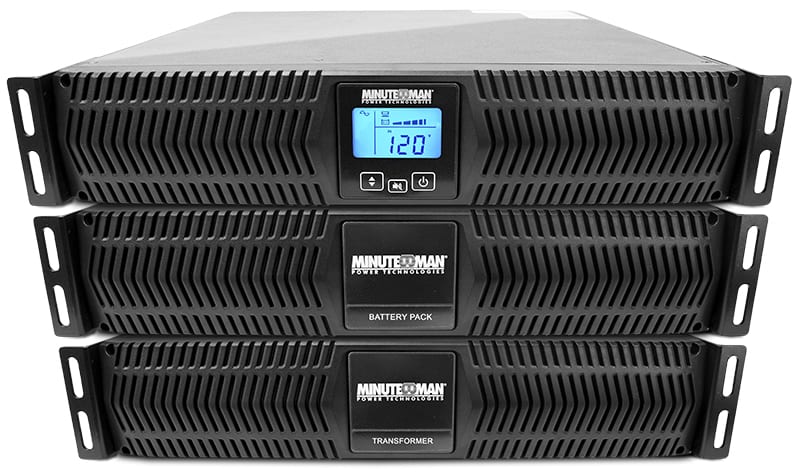

Endeavor Series: optional transformer module for ED8200RTXL Online UPS, rackmount/tower, stepdown from 208/240V to 120V with 6,889W maximum capacity at 120VAC output, hardwire input and output connections only, requires a control module (ED8000RT-CU) and battery pack (BP240RTXL)

Mission critical applications demand the best power quality – Endeavor 5-10kVA systems deliver it in versatile, easily configurable packages that can be tailored to your specific needs.

• User-friendly LCD Display:
  Minuteman’s familiar LCD interface provides real-time status and control of the unit
• Easy order model numbers:
  No more individual modules for ordering
• Expands the Endeavor product family:
  Models up to 10kVA in a rack/tower format allows paralleled systems up to 20kVA in capacity
• Output receptacle configurations on some models:
  All dual-voltage output models will have standard receptacle configurations
• All 5/6kVA models include an L6-30P/pigtail power cord

Digital Signal Processor

• Reduced number of components in the UPS also reduces the potential for defects or malfunctions
• Digital Signal Processor, (DSP), combines many components into a single processor, increasing the reliability of the UPS and reducing any downtime potential
• Helps ensure stable, quality power and long life span

High Output Power Factor

• All models feature an output power factor of 0.9 which increases the Watt capacity of the units
• Larger capacities in a smaller UPS VA rating can reduce the overall cost of the UPS solution for a specific load requirement

Output T.H.D.

• Endeavor units maintain an output AC signal within 2% of a true sine wave pattern (Total Harmonic Distortion)
• Prevents equipment damage from internal heat build up on sensitive connected equipment

Overload Capacity

• Sudden spikes can occur when supporting IT infrastructure, industrial equipment, security installations or any electrically-driven load
• Endeavor UPSs are designed to support such situations with the ability to absorb up to 150% of its rated load for up to 30 seconds
• Allows the UPS to be sized for maximum capacity without worry of overload and shutdown, providing cost-savings

Independent Battery Bypass

• An independent battery circuit allows the Endeavor UPS to operate in Normal Mode, even with weak, dead, or defective batteries
• Endeavor UPSs monitor internal battery status at regular intervals; If the UPS detects weak or bad batteries, it will engage an audio alarm and also any preconfigured electronic notifications
• Normal AC output will be maintained as long as utility power is supplied within the UPS’ nominal input range
• The UPS will have a constant 120/208/240V signal and protection from any dangerous spikes or surges while allowing time to replace batteries without having to shut down connected equipment

Optional 240V Output

• Endeavor units can be configured from the factory for use with 240V input and output applications for an additional charge
• Include ED-240VAC with Endeavor 5-10 order for 240V configuration
• For more information about this option, please contact your Minuteman representative
