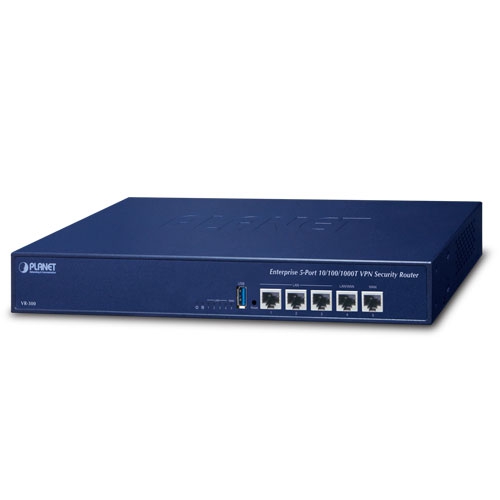

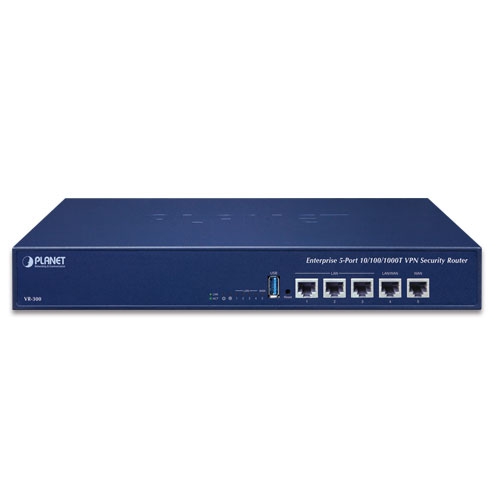

Planet - VR-300 - Enterprise 5-Port 10/100/1000T VPN Security Router (Dual-WAN Failover and Load Balancing)
Part number:
VR-300
Price:
Enterprise 5-Port 10/100/1000T VPN Security Router (Dual-WAN Failover and Load Balancing, Cyber Security, SPI Firewall, IPv4/IPv6 Filtering, Content Filtering, DoS Attack Prevention, Port Range Forwarding, SSL VPN and robust hybrid VPN (IPSec/GRE/PPTP/L2TP), IPv6, SNMP, PLANET Easy-DDNS, High Availability, AP Controller, Captive Portal, RADIUS, SD-WAN, supports CloudViewer app and MQTT)
Features:
- Powerful VPN Security Solution
- Wi-Fi Deployments and Authentication with Simplified Management
- Centralized Remote Control of Managed APs
- Ideal High-Availability VPN Security Router Solution for SMBs
- Excellent Ability in Threat Defense
- Cybersecurity Network Solution to Minimize Security Risks
- Improving Network Efficiency
Highlights
- Dual-WAN failover and Dual-WAN load balancing
- SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
- Stateful Packet Inspection (SPI) firewall and content filtering
- Blocks DoS/DDOS attack, port range forwarding
- High Availability, AP Controller, Captive Portal and RADIUS
- IPv6, SNMP, PLANET DDNS and Universal Network Management System
Hardware
- 5 10/100/1000BASE-T RJ45 ports
- 1 undefined Ethernet port (LAN/WAN) for Dual-WAN function
- 1 USB 3.0 port for system configuration backup and restore
- Reset button and Fanless design
- Desktop installation or rack mounting
IP Routing Feature
- Static Route
- Dynamic Route
- OSPF
Firewall Security
- Cybersecurity
- Stateful Packet Inspection (SPI) firewall
- Blocks DoS/DDoS attack
- Content Filtering
- MAC Filtering and IP Filtering
- NAT ALGs (Application Layer Gateway)
- Blocks SYN/ICMP Flooding
VPN Features
- IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN)
- Max. Connection Tunnel Entries: 60 VPN tunnels,
- Encryption methods: DES, 3DES, AES, AES-128/192/256
- Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512
Networking
- Outbound load balancing
- Failover for dual-WAN
- High Availability
- Captive Portal
- RADIUS Server/Client
- Static IP/PPPoE/DHCP client for WAN
- DHCP server/NTP client for LAN
- Protocols: TCP/IP, UDP, ARP, IPv4, IPv6
- Port forwarding, QoS, DMZ, IGMP, UPnP, SNMPv1,v2c, v3
- MAC address clone
- DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP
Others
- Setup wizard
- Dashboard for real-time system overview
- Supported access by HTTP or HTTPS
- Auto reboot
- PLANET Smart Discovery utility/UNI-NMS supported
| Hardware Specifications | |
|---|---|
| Ethernet | 5 10/100/1000BASE-T RJ45 Ethernet ports including 3 LAN ports (Port-1 to Port-3) 1 LAN/WAN port (Port-4) 1 WAN port (Port-5) |
| USB Port | 1 USB 3.0 port for system configuration backup and restore |
| Reset Button | Reset to factory default |
| Thermal Fan | Fanless |
| LED Indicators | PWR (Green) Internet (Green) LAN/WAN (Green) |
| Installation | Desktop installation or rack mounting |
| Power Requirements | 100-240V AC, 1A max. |
| Power Consumption | 13W max. |
| Weight | 1.4kg |
| Dimensions (W x D x H) | 330 x 155 x 43.5 mm |
| Enclosure | Metal |
| Security Service | |
| Firewall Security | Cybersecurity Stateful Packet Inspection (SPI) DoS/DDoS Attack Defense |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323, TFTP |
| NAT | Port forwarding DMZ Host UPnP |
| Content Filtering | MAC filtering IP filtering Web filtering |
| Bandwidth Management | Outbound load balancing Failover for dual-WAN QoS (Quality of Service) |
| Networking | |
| Operation Mode | Routing mode |
| Routing Protocol | Static Route, Dynamic Route (RIP), OSPF |
| VLAN | 802.1q Tag-based, Port-based, Multi-VLAN |
| Multicast | IGMP Proxy |
| NAT Throughput | Max. 900Mbps |
| Outbound Load Balancing | Supported algorithms: Weight |
| Protocol | IPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, PPPoE, SNMPv1/v2c/v3, |
| Key Features | HA (High Availability) Captive Portal RADIUS Server/Client AP Control |
| VPN | |
| VPN Function | IPSec/Remote Server (Net-to-Net, Host-to-Net) GRE PPTP Server L2TP Server SSL Server/Client (Open VPN) |
| VPN Tunnels | Max. 60 |
| VPN Throughput | Max. 60Mbps |
| Encryption Methods | DES, 3DES, AES or AES-128/192/256 encrypting |
| Authentication Methods | MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm |
| Management | |
| Basic Management Interfaces | Web browser SNMP v1, v2c PLANET Smart Discovery utility/UNI-NMS supported |
| Secure Management Interfaces | SSHv2, TLSv1.2, SNMP v3 |
| System Log | System Event Log |
| Others | Setup wizard Dashboard System Status/Service Statistics Connections Status Auto reboot Diagnostics |
| Standards Conformance | |
| Regulatory Compliance | CE, FCC |
| Environment Specifications | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
