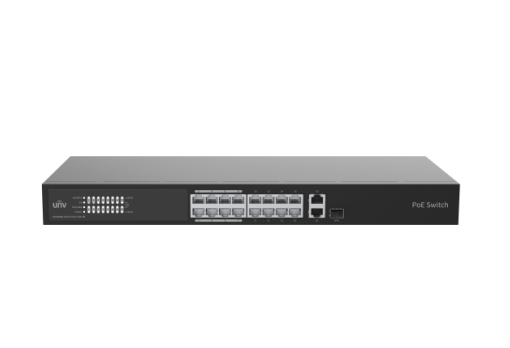

Uniview - NSW3000-16T1GT1GC-LPOE-IN - Ethernet 16 Port 150W Cloud Managed Ethernet Low Power PoE Switch
Part number:
NSW3000-16T1GT1GC-LPOE-IN
Price:
Cloud Managed Ethernet PoE Switch
Features:
- Supports unified configuration, management, and search on the software, convenient for rapid operation and maintenance of multiple devices; supports automatically discovering the connected video devices and generating a network topology on the software.
- Supports Web login, and device configuration and management on the Web interface; supports visiting the cloud by scanning the QR code, and allows to view the device status in real time on the app, and remotely restart the PoE power supply.
- Supports PoE power supply and allows to view the power; allows to enable or disable PoE power supply for the powered device; allows up to 250m power supply using a standard network cable.
- Supports the extend mode for up to 250m communication range and 10Mbps full-duplex port rate.
- Allows to report port abnormal alarms to the software for realtime monitoring.
- Supports port priority. The packets received by the priority port will be forwarded first and the priority port will be powered first when the PoE power supply is full.
- All metal casing, secure and reliable.
| Item | NSW3000-16T1GT1GC-POE-IN |
| Service port | 16 x 10/100Mbps POE port (RJ45) + 1 x Gigabit port (RJ45)+ 1 x Gigabit Combo |
| Switching capacity | 7.2Gbps |
| Packet forwarding rate | 5.36Mpps |
| Packet buffer | 4Mbit |
| MAC | 16K |
| Weight | 2.1kg |
| Power supply | AC 100V to 240V, 50/60Hz |
| PoE standard | IEEE802.3af/at |
| PoE power | Maximum total power: 250W Maximum PoE power for single port: 30W |
| PoE power supply mode | Mode A, 1/2+, 3/6- Mode B, 4/5+, 7/8- |
| Priority ports | 1 to 8 |
| Priority QoS | Forwards the packets from the first eight priority ports in the event of data congestion |
| Fan | 1 |
| Dimensions (W×D×H) | 440mm x 189.8mm x 44mm |
| Operating temperature | 0°C to 40°C |
| Operating humidity | 10% to 90% RH, noncondensing |
| Storage temperature | -40°C to 70°C |
| Storage humidity | 5% to 90% RH, noncondensing |
| Indicator | Power: Steady on: Normal power input Off: Abnormal power input |
| PoE: Off: The PoE port is not supplying power Steady on: The PoE port is supplying power normally | |
| Link/Act: Off: Disconnected to the port On: Connected to the port Blinking: Transmitting data | |
| MAX: Off: The total PoE power is less than 80% of the total power of the device Steady on: The total PoE power is higher than 85% of the total power of the device |
Software
| Service | NSW3000-16T1GT1GC-POE-IN | NSW3000-24T1GT1GC-POE-IN |
| Ethernet | Supports full duplex, half duplex, and auto-negotiation working modes | |
| Supports port auto-negotiation rate | ||
| Supports port priority flow control. | ||
| Supports a link aggregation group (consist of two uplink ports) | ||
| Supports port flow statistics | ||
| Supports enabling/disabling ports | ||
| System | Allows to view the device name, device model, serial number, current version, IP address, MAC address, DNS, operation time, etc. | |
| Allows to edit and manage the IP address and device name | ||
| Supports single-user management, user authentication, and password modification | ||
| Supports manual time configuration and NTP | ||
| Allows to view other switches information on the same network, up to 32 switches | ||
| Allows to view the connected video devices information, up to 64 devices | ||
| VLAN | Supports both access and trunk modes; allows up to 32 VLANs with IDs from 1 to 4095 | |
| MAC | Support (up to 16K) | |
| Supports clearing the dynamic MAC address | ||
| Port loopback detection | Support | |
| QoS | Supports port rate limitation | |
| Supports broadcast storm control | ||
| PoE | Allows to view PoE status and power | |
| Allows to enable/disable PoE power supply | ||
| Security | Supports port isolation (only for the downlink ports) | |
| Supports locking login IP address, up to 64 addresses can be locked | ||
| Maintenance | Supports N:1 port mirroring | |
| Supports unified software configuration, management, and search | ||
| Supports discovering the connected video devices and generating a network topology on the software. | ||
| Supports device upgrade, factory settings restoration, configuration import, configuration export, logs export, and device restart on the software. | ||
