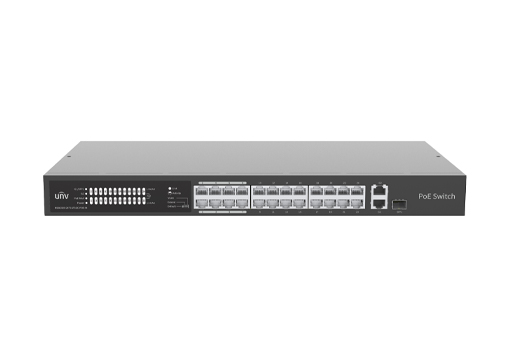

Uniview - NSW2020-24T1GT1GC-LPOE-IN - UNV Ethernet 24 Port 225W Low Power PoE Switch
Uniview - NSW2020-24T1GT1GC-LPOE-IN - UNV Ethernet 24 Port 225W Low Power PoE Switch
Uniview - NSW2020-24T1GT1GC-LPOE-IN - UNV Ethernet 24 Port 225W Low Power PoE Switch

Uniview - NSW2020-24T1GT1GC-LPOE-IN - UNV Ethernet 24 Port 225W Low Power PoE Switch

Part number:
NSW2020-24T1GT1GC-LPOE-IN
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

Ethernet 24 Port 225W Low Power PoE Switch



Features:

  • Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
  • Support port traffic control
  • Support for secure mode, all downlink ports can communicate only with uplink ports
  • Up to 250m transmission distance on surveillance mode
  • Support buffer optimization
  • All metal housing, safe and reliable
ModelNSW2020-24T1GT1GC-POE-IN
Ports24×100Mbps PoE ports (RJ45) + 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports
StandardsIEEE802.3,IEEE802.3u,IEEE802.3z, IEEE802.3ab, IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az
Switching capacity8.8Gbps
Forwarding performance6.55Mpps
Packet Buffer4Mbit
MAC16K
Dimensions (W×D×H)440*244.8*44mm
Weight2.93KG
Power supplyAC: 100-240V, 50/60Hz
PoE802.3at/af （4/5+，7/8-）
Max. PoE PowerMax capacity: 370W
Max capacity for single port: 30W
Prior Ports1~8
Cooling Fans1
Operating temperature0°C-40°C (32°F-104°F)
Operating humidity10%～90% (noncondensing)
Storage humidity5%～90% (noncondensing)
IndicatorPOWER:
Steady on: AC input is normal
Off: No AC input
PoE:
Off: No PoE power supply
Steady on: PoE power supply is normal
PoE-MAX：
off ：The POE power supply power of the whole machine is less than 80% of the specification
Steady on :  The POE power supply power of the whole machine is greater than 85% of the specification
LINK/ACT：
Off: No link
Steady on: Linked
Flashing: Transmitting data
Working ModeDefault(Normal mode) : All ports can communicate with each other.
VLAN(Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time.
Extend(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports.
Name
Description
Size
Downloads
File
Datasheet
0.6mb
