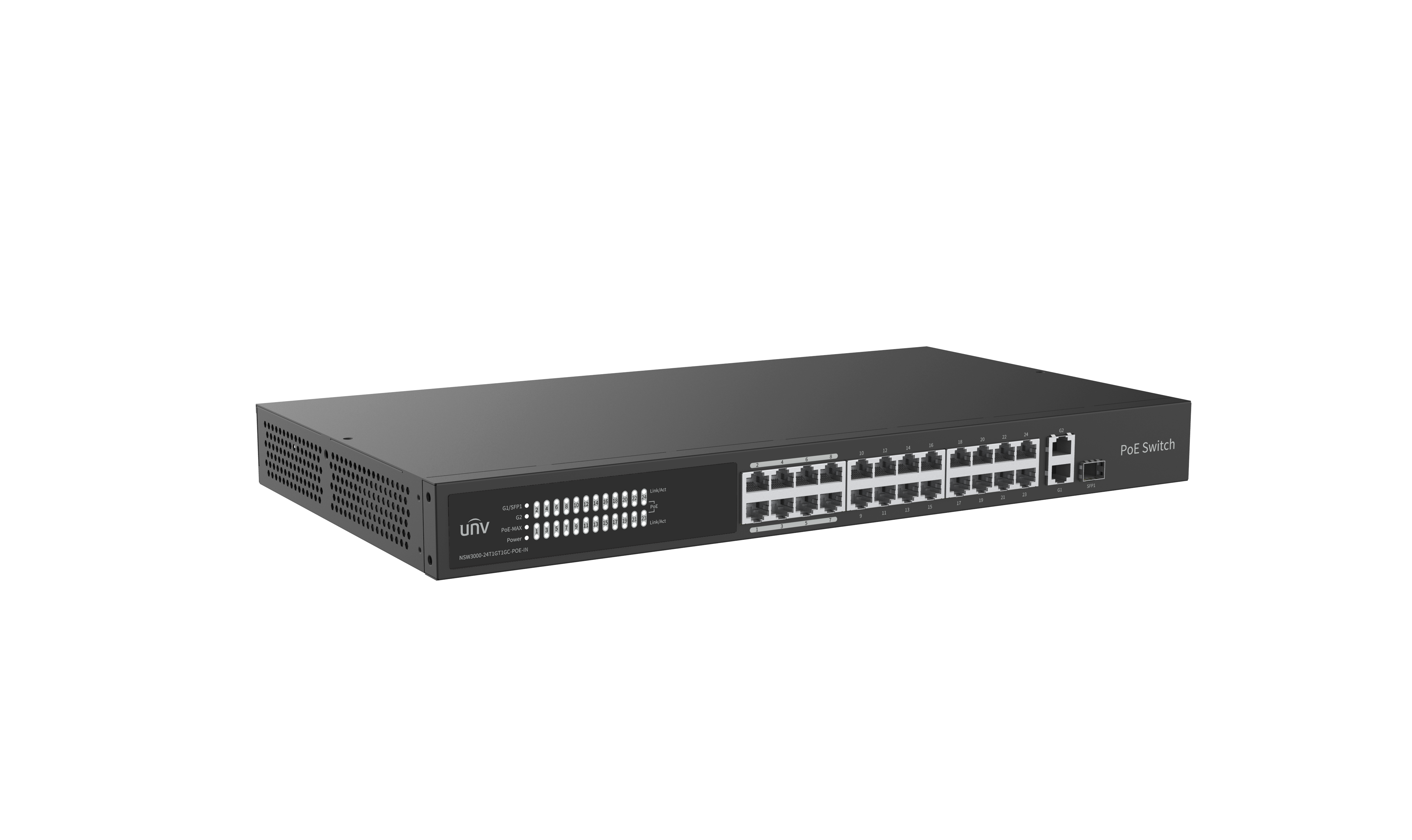

UNV - NSW3000-24T1GT1GC-POE-IN - Ethernet 24 Port 370W Cloud Managed Ethernet PoE Switch
Product Overview
Uniview NSW3000-24T1GT1GC-POE-IN is a 24-port 370W cloud managed Ethernet PoE switch with 24 × 10/100Mbps PoE ports, 1 × Gigabit RJ45 port, and 1 × Gigabit Combo port. It delivers a switching capacity of 8.8 Gbps and forwarding performance of 6.55 Mpps. The switch provides 370W total PoE budget with up to 30W per port, supporting IEEE 802.3af/at PoE standards, and features cloud management for unified configuration and remote operation.
Key Configuration
- • 24 × 10/100 Mbps PoE ports (RJ45) + 1 × Gigabit port (RJ45) + 1 × Gigabit Combo port
- • Switch capacity: 8.8 Gbps; forwarding rate: 6.55 Mpps
- • Total PoE power: 370W; per-port maximum: 30W
- • PoE modes: Mode A (1/2+, 3/6-) and Mode B (4/5+, 7/8-)
- • MAC address table: 16K; packet buffer: 4 Mbit
Key Features
• Cloud management: unified configuration, management, and search via software; automatic discovery of connected video devices with network topology generation; QR code scanning for app access with real-time device status and remote PoE power restart
• Extend mode: up to 250m communication range with 10 Mbps full-duplex port rate; up to 250m power supply via standard network cable
• Port priority: ports 1-8 receive power first when PoE budget is full; priority port packets forwarded first
• VLAN support: access and trunk modes; up to 32 VLANs with IDs 1-4095
• Port isolation (downlink ports only); login IP address locking (up to 64 addresses); loop detection; broadcast storm control; N:1 port mirroring
• All-metal casing
Technical Context
Standards: IEEE802.3, 802.3u, 802.3z, 802.3ab, 802.3x, 802.3af, 802.3at, 802.3az. Software features: full/half duplex and auto-negotiation; port auto-negotiation rate; port priority flow control; link aggregation (one group with two uplink ports); port flow statistics; port enable/disable. QoS: port rate limitation; broadcast storm control. MAC: supports clearing dynamic MAC addresses. System features: device name, model, serial number, version, IP, MAC, DNS, operation time viewable; single-user management with authentication and password modification; manual time or NTP configuration; view up to 32 other switches on same network; view up to 64 connected video devices. Port abnormal alarm reporting to software. Supports device upgrade, factory reset, configuration import/export, logs export, device restart.
Installation Notes
Dimensions (W × D × H): 440 × 244.8 × 44 mm; weight: 2.9 kg. Operating humidity: 10%–90% non-condensing; storage humidity: 5%–90% non-condensing. Max power: 385W; 1 cooling fan.
| NSW3000-24T1GT1GC-POE-IN | |
| Hardware Specification | |
| Ports Type | 24 x 10/100Mbps POE port (RJ45) + 1 x Gigabit port (RJ45) + 1 x Gigabit Combo |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az |
| Switching capacity | 8.8 Gbps |
| Forwarding performance | 6.55Mpps |
| Packet Buffer | 4 M bit |
| MAC | 16K |
| Weight | 2.9kg |
| Dimensions (W×D×H) | 440mm x 244.8mm x 44mm |
| Max.Power | 385W |
| Max.PoE Power | Maximum total power: 370W Maximum PoE power for single port: 30W Mode A, 1/2+, 3/6- Mode B, 4/5+, 7/8- |
| Prior Ports | 1 to 8 |
| Cooling Fans | 1 |
| Operating humidity | 10%～90% (non-condensing) |
| Storage Humidity | 5% to 90% RH, noncondensing |
| Software Specification | |
| Ethernet | Supports full duplex, half duplex, and auto-negotiation working modes. Supports port auto-negotiation rate. Supports port priority flow control. Supports a link aggregation group (consist of two uplink ports) Supports port flow statistics Supports enabling/disabling ports |
| VLAN | Supports both access and trunk modes; allows up to 32 VLANs with IDs from 1 to 4095 |
| MAC | Support (up to 16K). Supports clearing the dynamic MAC address |
| POE | Allows to view PoE status and power. Allows to enable/disable PoE power supply. |
| Loop Detection | Loop Detection |
| QoS | Supports port rate limitation. Supports broadcast storm control. |
| Security | Supports port isolation (only for the downlink ports). Supports locking login IP address, up to 64 addresses can be locked |
| Maintenance | Supports N:1 port mirroring. Supports unified software configuration, management, and search. Supports discovering the connected video devices and generating a network topology on the software. Supports device upgrade, factory settings restoration, configuration import, configuration export, logs export, and device restart on the software. |
| System | Allows to view the device name, device model, serial number, current version, IP address, MAC address, DNS, operation time, etc. Allows to edit and manage the IP address and device name Supports single-user management, user authentication, and password modification Supports manual time configuration and NTP Allows to view other switches information on the same network, up to 32 switches Allows to view the connected video devices information, up to 64 devices |
