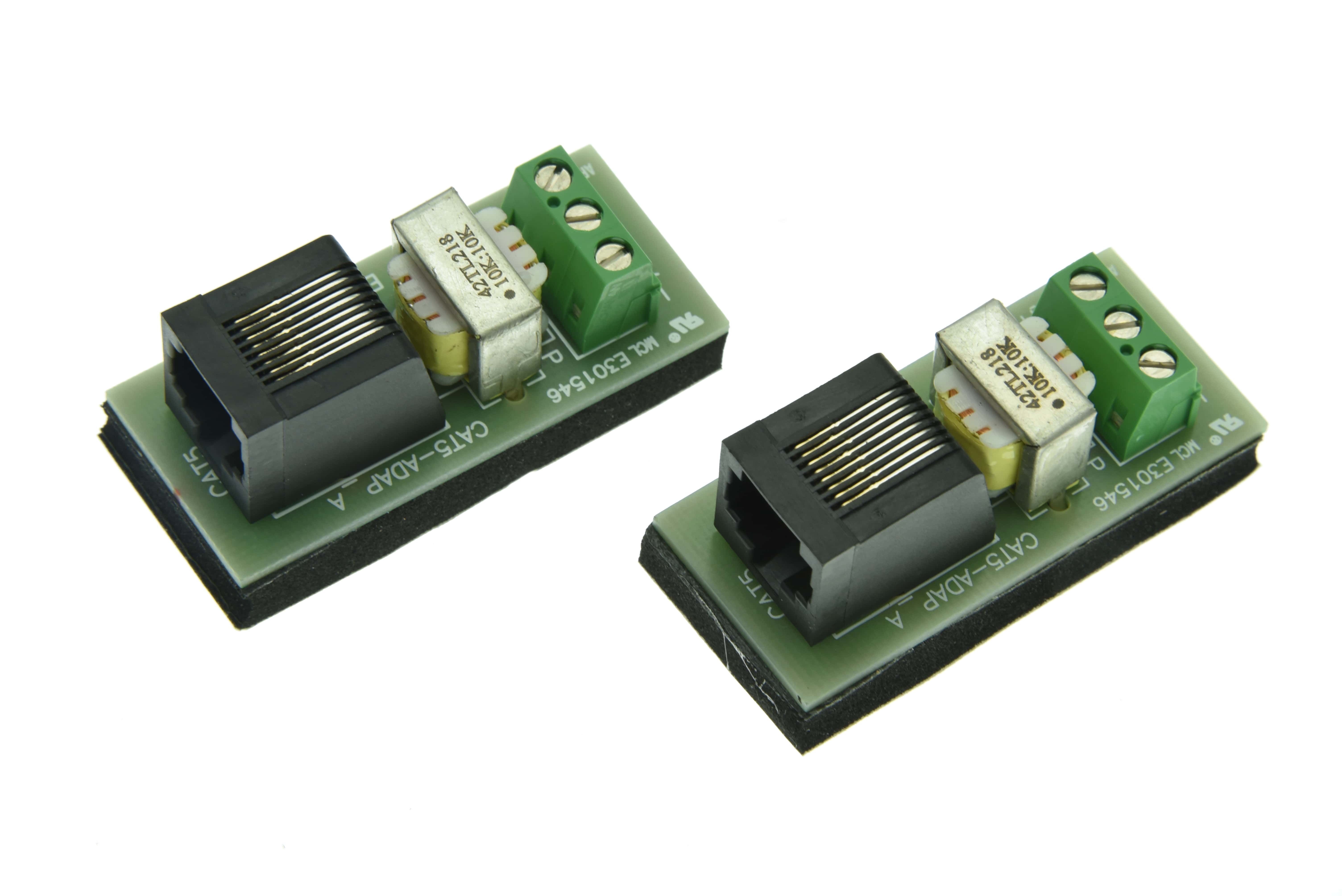

The CAT5-AD1 adaptor set is used to power up and transmit the audio signal from any ETS SM1 series microphone over CAT5/6 cable. Compatible with all ETS interface boxes and base stations.

Includes

• 2 ea. CAT5-AD1 adaptor
• Installation instructions

Wiring requirements

• Microphone and interface to CAT5- AD1 boards 2 conductor shielded #22, 100 feet max
• CAT5 cable run 1000 feet max

Features:

• RJ45 (8 conductor) female connector blocks.
• 3 position terminal blocks for microphone and interface connections.
• Converts SM1 series microphone signals to balanced audio at 10K Ohms impedance permitting the use of long distance CAT5 unshielded cable runs.
• Double stick tape mounting.
• Dimensions: L2.1 x W.94 x H.94
• Weight: .02kg
