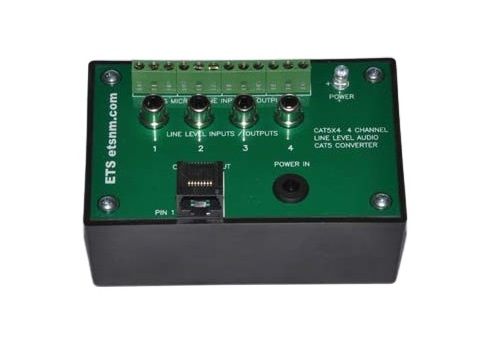

The CAT5X4 adaptor set is used to transmit the audio signal from up to 4 Sound Surveillance microphones (or any other line level sources using on board RCA connectors) down a single standard CAT5 cable. Microphones are powered by an AC adaptor located at the microphone side CAT5X4 adaptor. Compatible with all ETS interface boxes and base stations.

Includes:

• 2ea. 4 channel interface box
• 1ea. 12Vdc AC adaptor
• Installation instructions

Wiring requirements:

• 2 conductor shielded to microphones 500’ max.
• Max 1000’ CAT5 main cable run

Features:

• RJ45 (8 conductor) female connector block.
• Euro-style connectors for standard interface between the CAT5X4 and all Sound Surveillance microphones.
• RCA or 3.5mm audio inputs and for direct connection to DVRs or other equipment outputs
• Converts our standard unbalanced microphone signals (or any other line level signal) to balanced audio at 600 Ohms impedance permitting the use of CAT5 unshielded cable runs.
• Compatible with all SM1-X series microphones
• Max CAT5 cable run 1000 feet.
• Dimensions: L 4.3 x W 2.7 x H 1.6.
