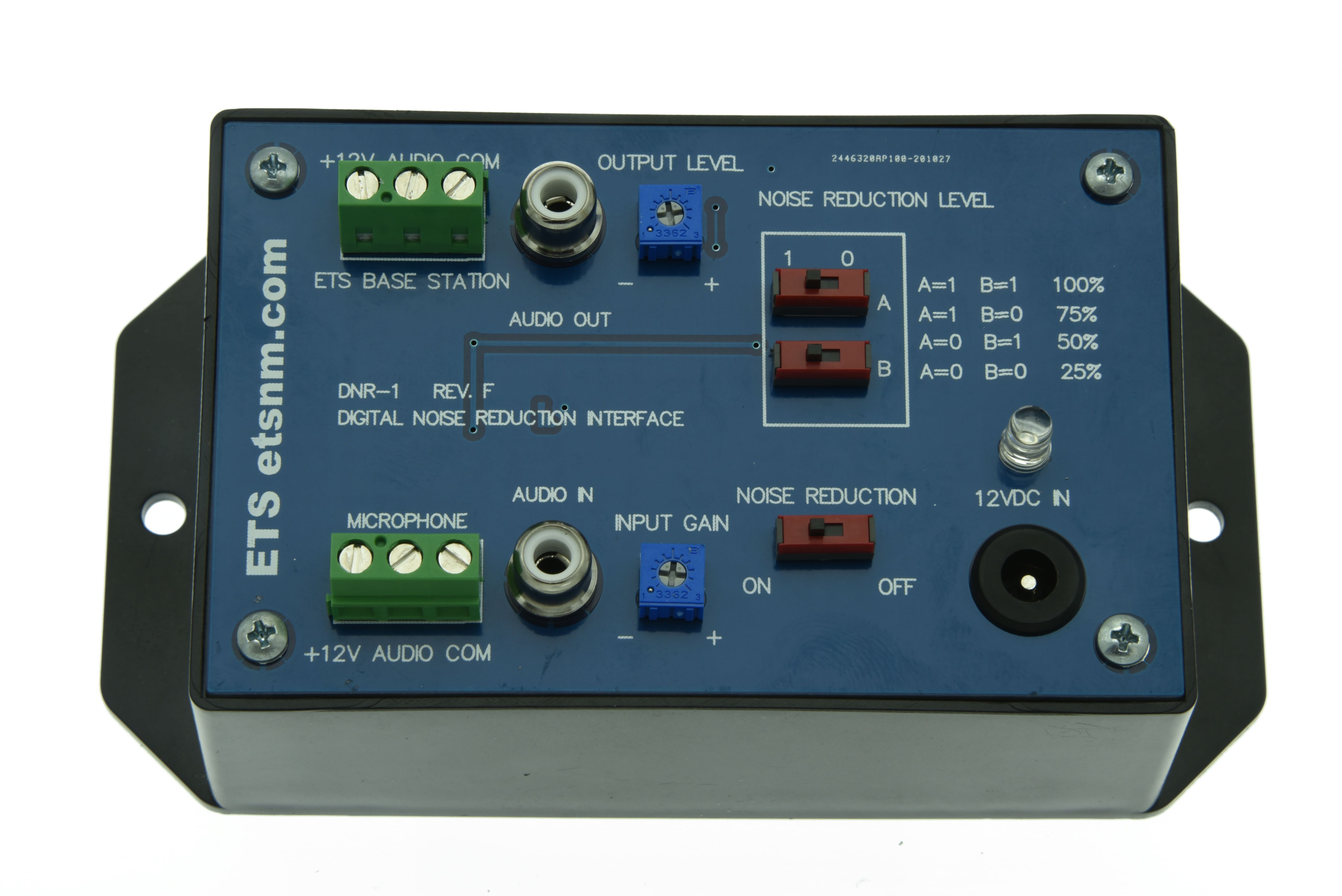

The DNR-1 is a DSP (Digital Signal Processor) based background noise reduction unit. It is designed to digitally screen out voice from other back ground sounds picked up by microphones. The DNR-1 is also effective in eliminating microphone pre-amplifier noise. The DNR-1is compatible with ETS microphones, base stations, other "line level" audio sources and connects directly to DVRs, IP cameras, etc.

Includes:

• DNR-1 Processor
• 15 Vdc 800ma AC adapter.
• 2 each 3’ RCA patch cord
• Installation instructions.

Options:

• Add –3.5MM or –FL (Flying Leads) to P/N for alternate output cables.

Wiring Requirements:

• Microphone cable run: Stranded 22- gauge, 2-conductor shielded cable. Distances up to 1000 feet.
• Outputs: Audio coaxial cable, 1000 feet max each.

Features:

• RCA acks for connection to DVRs etc.
• Adjustable input and output “line Level” level controls.
• ETS microphone or RCA line level input.
• ETS base station or RCA line level outputs.
• 3 position terminal block connections for ETS base station and microphone.
• 500-4Khz Frequency response
• Up to -40db noise reduction (depending on type of noise)
• LED power indicator.
• Power: 12 VDC @ 100mA
• Reverse polarity protected.
• PPTC fused.
• Temperature range –20 to 70C
• Black plastic ABS housing.
• Dimensions: L 5.3 x W 3.3 x H 1.6
• Weight .08kg
