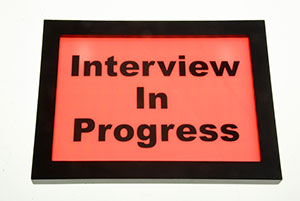

The IWS-6x8 is a low cost, high quality illuminated warning sign which operates from 12-24vdc. Custom lettering is Available at no extra charge. Specify -R for red background and -G for green background colors. Custom colors and frame sizes are available on request. Custom lettering and fonts are available at no extra charge.

Includes:

• IWS-6X8
• Installation instructions.

Options:

• IWS-6X8-R Red backlit
• IWS-6X8-G Green backlit

Power Cable Requirements:

• 12vdc, #18/2 wire, 50’ max
• 24vdc, #18/2 wire, 500’ max

Sample lettering:

"On Air" ,"Applause", "Armed"
"CT Scan in Use" ,"Live"
"CT Scan On" ,"MRI In Use"
"MRI On" ,"Do Not Enter"
"No Entry" ,"Room In Use"
"Recording" "X-ray on"
"Radio Silence" ,"Laser in Use"
"Laser On" ,"Mic ON" ,"Stand By"
"Secure" ,"Classified"
"Silence Please"

Features:

• 6x8 hardwood frame
• Black Vinyl lettering. Other colors available
• No charge for custom lettering or Font
• Red and green backlit color options. Custom
• colors available on special request.
• Bright 100 LED backlit array
• Internal buck switching voltage regulator
• Power consumption:
  12vdc@ 500ma
  24vdc@ 250ma
• Rear keyhole mounts for simplified installation.
• Reverse polarity protected
• 12” #18 red and black power connection leads
• Dimensions L5.8 x W6.8x H.65
• Operating Temperature 0-70C.
• Weight .23bs
