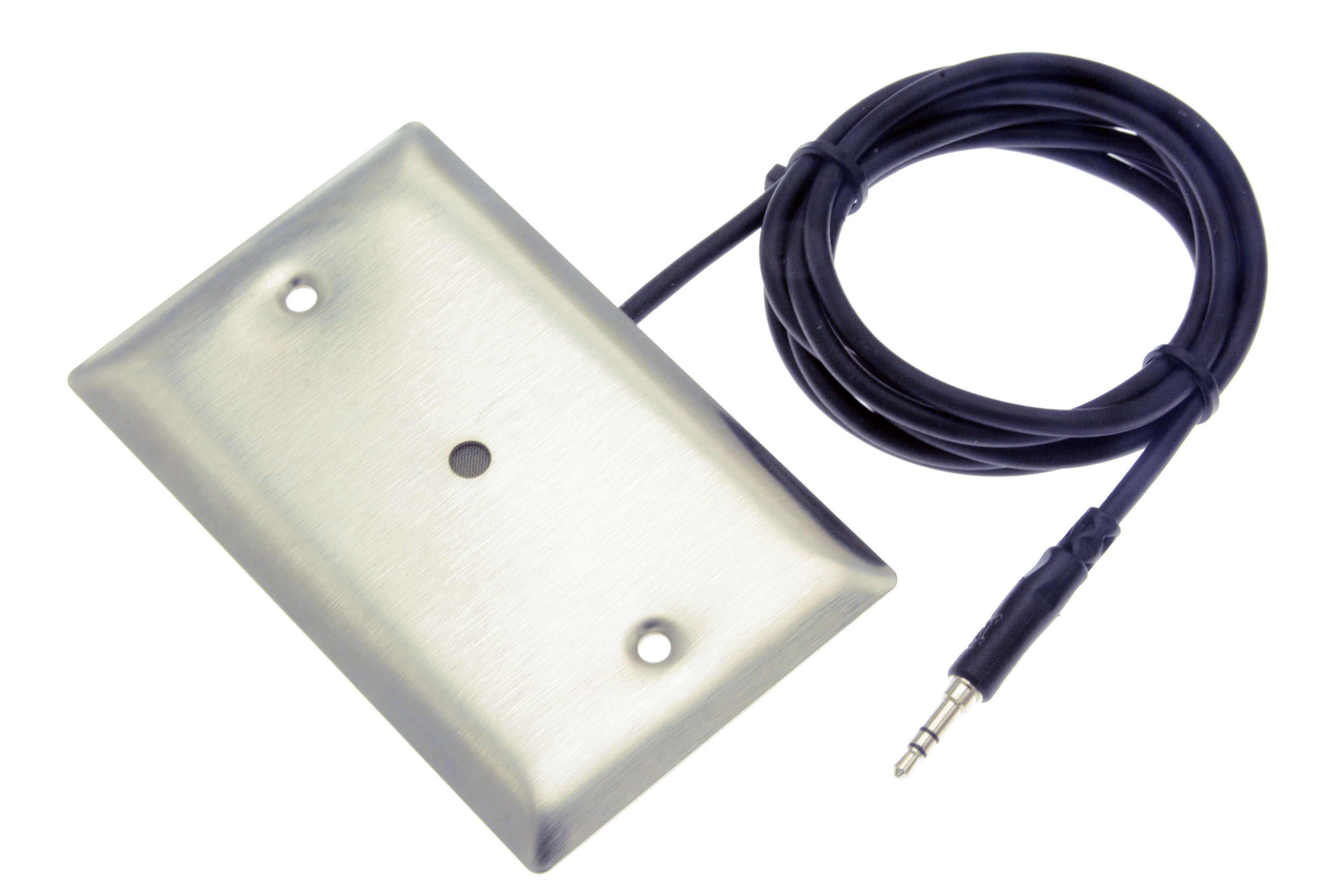

The ML1-SS is a low cost omni-directional electret microphone for use with IP cameras accepting microphone level input signals. (PC compatible input). The attached cord is 6' long and comes standard with a stereo 3.5mm connector on one end. Add -FL to the P/N for a flying lead output for connections to cameras with terminal blocks.

For use with IP cameras accepting microphone level inputs (the camera supplies power to ECM cartridge)

Features:

• Omni-directional pattern
• Max SPL 120db
• Frequency response: 50-16khz
• Sensitivity –43db
• -40db output (mic level)
• 2-10Vdc operation
• 2-5k Ohm load resistance
• S/N 60db
• 6’ standard length cable
• 3.5mm stereo connector
• Sainless steel single gang plate
• Operating temperature –30C to 70C
• Weight: 0.025 lbs

Includes:

• ML1-SS microphone.
• Warning label.
• Mounting Screws

Options:

• Cable lengths of up to 25’ are available.
  Add –XX to P/N where XX = number of feet
• Add –FL to P/N for flying lead output
• Add -LN to P/N for higher performance capsule
