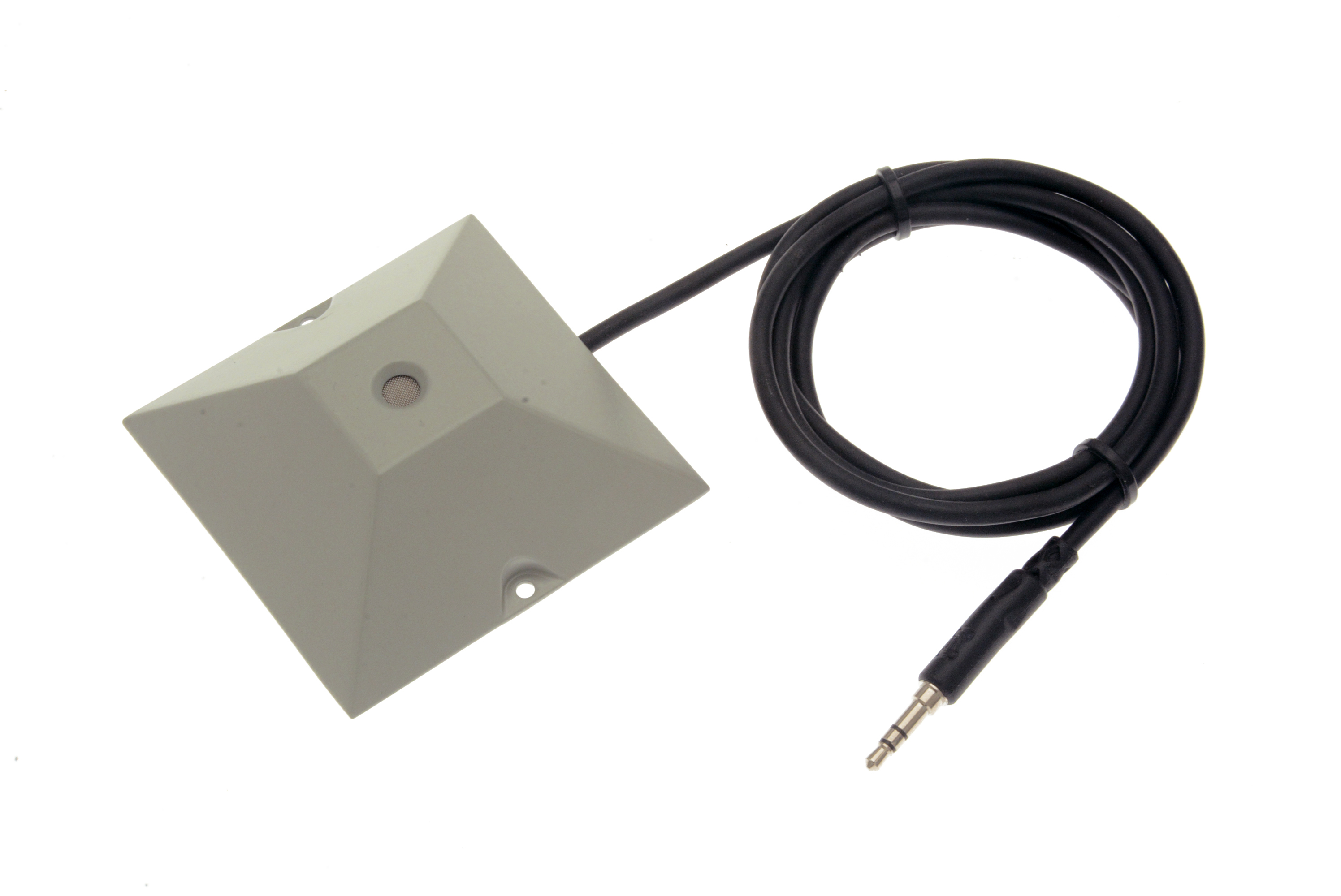

The ML1-WPCF is a low cost, IP67 rated, omni-directional electret microphone for use with IP cameras accepting microphone level input signals (PC compatible input). The attached cord is 6ft long and comes standard with a stereo 3.5mm connector on one end. Add –FL in the P/N for a flying lead output for connections to cameras with terminal blocks.

Note-camera must accept electret type microphone inputs (camera supplies power to ECM cartridge)

Features:

• Omni-directional pattern
• Max SPL 120db
• Frequency response: 50-16khz
• Sensitivity –43db
• -40dbm output (mic level)
• 2-10Vdc operation
• 2-5k Ohm load resistance
• S/N 60db
• 3.5mm stereo connector
• Aluminum housing
• IP67 rated
• Operating temperature –30 to 85C
• Weight: 0.10 lbs

Includes:

• ML1-WPCF microphone.
• Warning label (on request).

Options:

• Add -FL in P/N for flying lead output
• Add -LN to P/N for higher performance capsule: -28db sensitivity and 80db S/N ratio
