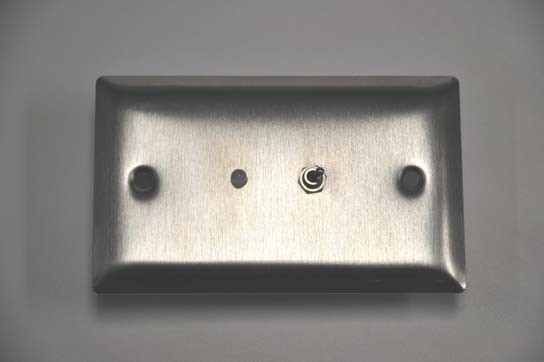

The MSP-1 is a flush mount, stainless steel, mute switch with an LED status indicator for use with ETS SM1 series microphones. The MSP-1 is typically used in interview or interrogation rooms when it is required that the microphone be turned off on occasion. The MSP-1 can be located anywhere along the cable run between the microphone and head end equipment.

Connects directly to our switcher / mixer / amplifiers or use one of our many interface products to make fast and clean connections to DVRs or remote monitoring equipment.

Includes:

• MSP-1 flush mount mute switch
• Mounting screws.
• Warning label.
• Installation instructions.

Wiring Requirements:

• 2 conductor shielded (with drain wire) 22 gauge stranded. Max cable length 1500’

Features:

• 3 position Euro-style connectors makes cable terminations fast and clean.
• Power: 12Vdc @ 10mA.
• Industrial temperature range –40 to 105C.
• Mute toggle switch
• Two color LED mute status indicator
• Stainless steel plate mounts flush or on a single gang electrical box.
• Dimensions: L 4.5” W 2.7” H 1.1”
• Weight .07lbs
