The PR2 combines the data outputs of 2 Weigand or Magstripe readers into a single output. The PR2 also distributes up to 2 LED / sounder outputs of the access control panel to both readers.

Includes:

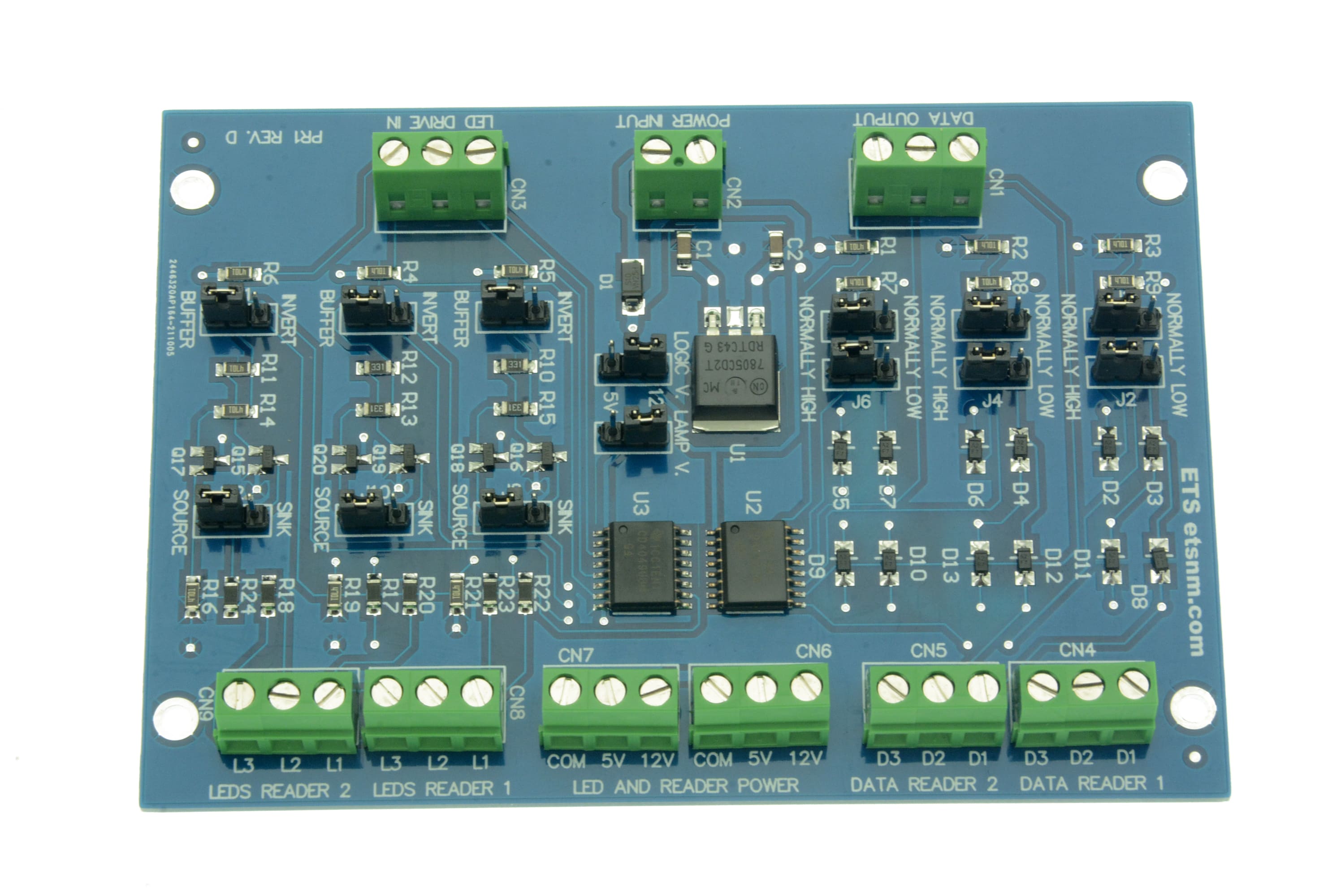

• PR2 2 Weigand or Magstripe reader combiner board
• Installation instructions

Features:

• Combines 2 Weigand or magstripe reader outputs into 1 output.
• Buffered single reader output data port
• 2 LED or sounder inputs and outputs
• Open Collector LED / sounder outputs
• Selectable 5v or 12v reader power
• Selectable inverted or buffered LED / sounder otputs
• Selectable sink or source LED / sounder outputs
• Terminal block connections
• Power: 12VDC @ 20mA.
• Reverse polarity protected.
• -40 to125C Temperature range
• Dimensions: W3.40 x L4.80 x H.75
• Weight .06lbs
