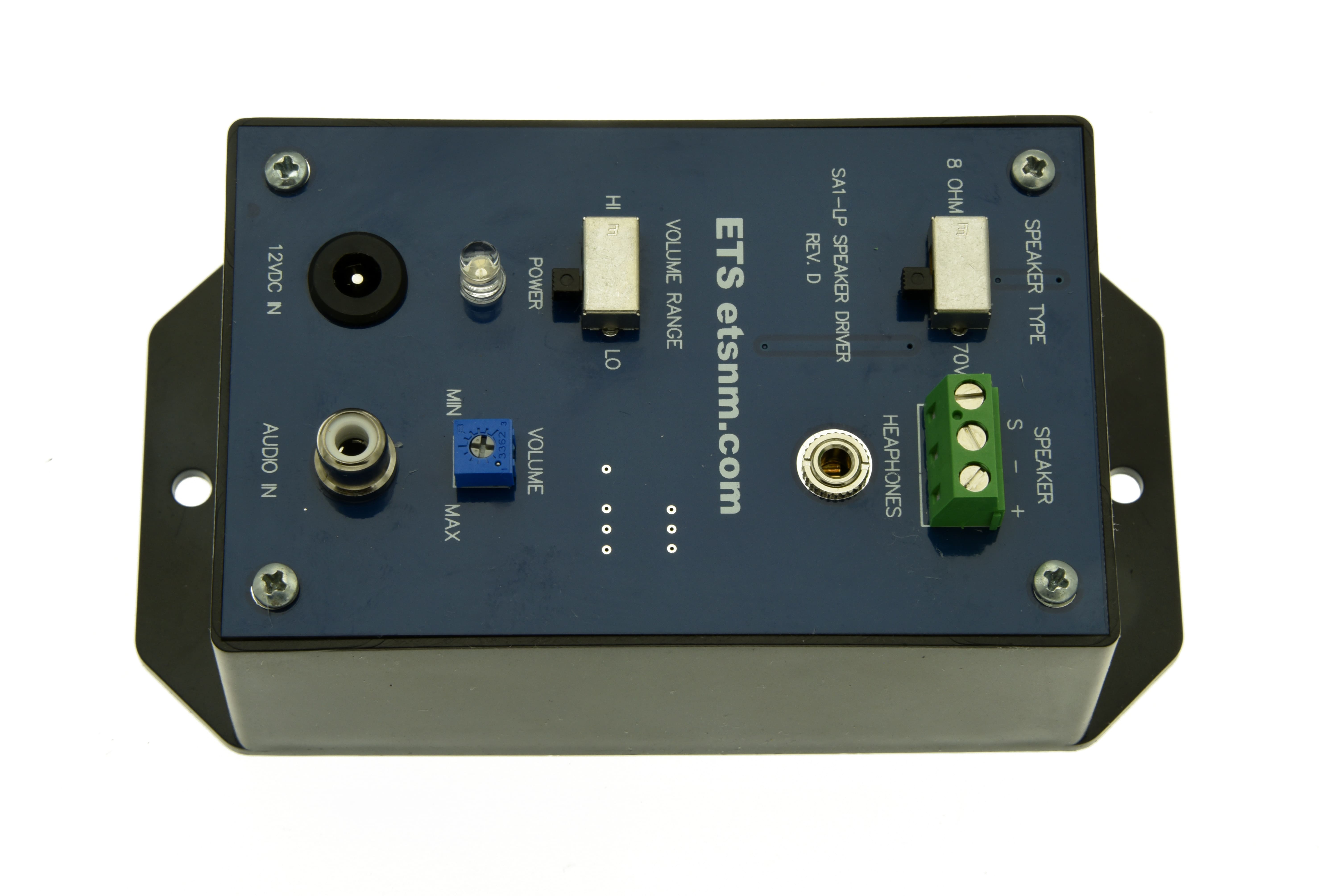

The SA1-LP is a line level in to 2.5 Watt, selectable 70V or 8 Ohm speaker driver (power amplifier) typically for use in 2 way audio surveillance systems. Directly connects to DVRs and remote monitoring equipment. Use one of our Sound Surveillance speakers with a built in 70V transformer to permit speaker cable runs up to 1000 feet.

Includes:

• SA1-LP Speaker driver.
• 15 Vdc 800ma AC adapter.
• 1 each 6’ RCA patch cord.
• Installation instructions.

Options:

• Add –3.5MM or –FL (Flying Leads) to P/N for alternate output cables.

Wiring Requirements:

• Speaker cable run: stranded 22-gauge, 2-conductor:
• 70V mode: cable: 1000 feet max
• 8 Ohm mode: 250 feet max.

Features:

• Line level (0db) audio input.
• RCA input jack
• Adjustable Volume control.
• Selectable 70V or 8 Ohm output level.
• 2.5 Watts RMS power output.
• Terminal block speaker connections.
• LED power indicator.
• Power:12 VDC @ 120mA
• Reverse polarity protected.
• PPTC fused.
• Black plastic ABS housing.
• Dimensions: L 2.7 x W 1.7 x H 1.6
• Weight .14kg
