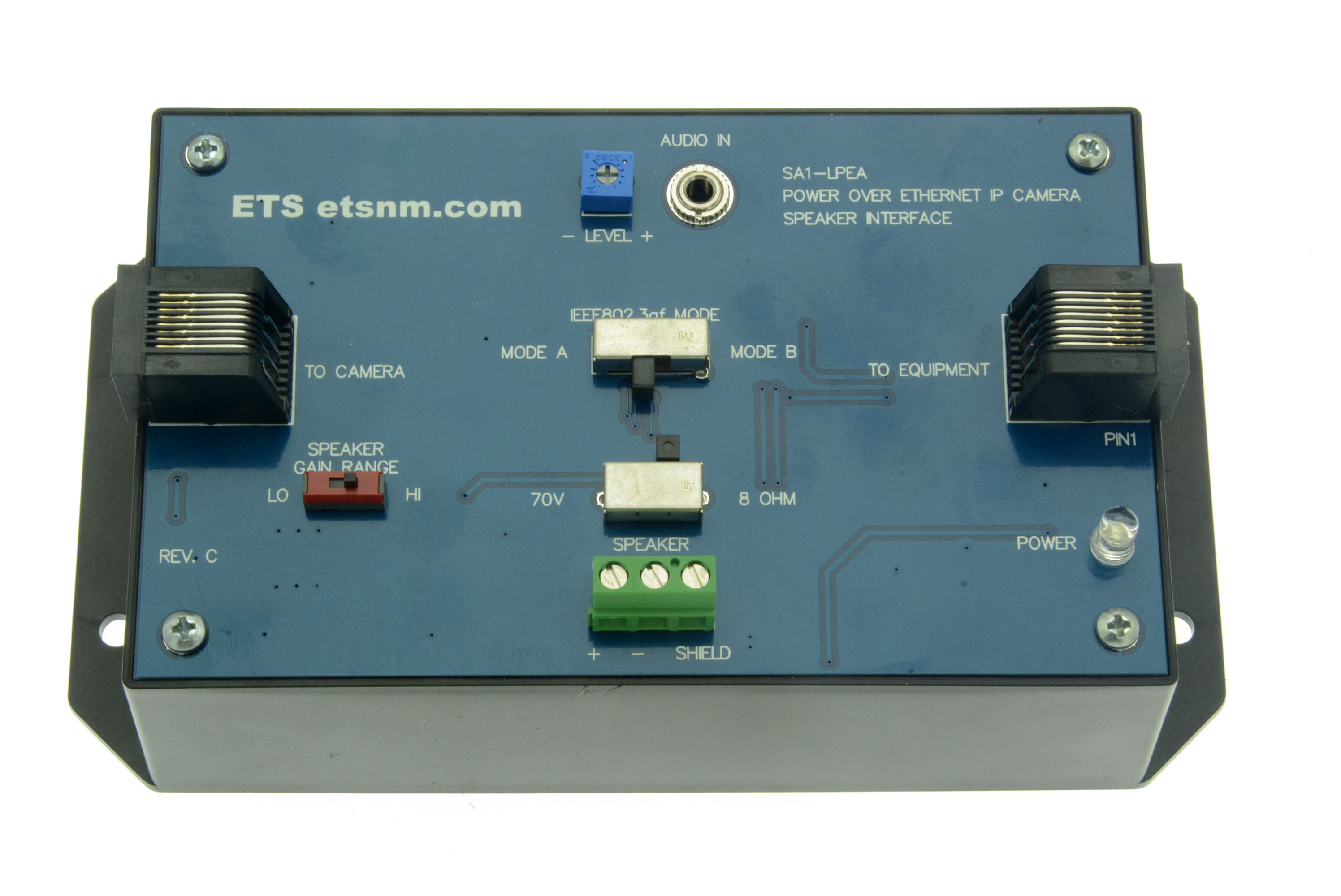

The SA1-LPEA is a PoE in-line, 2.5W speaker driver, IP camera interface that taps power off the camera's Ethernet CAT5 cable for talk-back only, public address and security applications. 3.5mm (or RCA) input jack for connection to "line output" of IP cameras. Supports both modes A and B of IEEE802.3af.

Includes:

• SA1-LPEA Speaker driver.
• 1 each 6’ 3.5mm patch cable.
• Installation instructions.

Options:

• Add –RCA or –FL (Flying Leads) to P/N for alternate output cables.

Wiring Requirements:

• Speaker cable run: stranded 22- gauge, 2-conductor:
• 70V mode: cable: 500 feet max
• 8 Ohm mode: 100 feet max

Features:

• 3.5mm audio input connector
• Transformer isolated, line level audio input.
• Adjustable speaker volume level control.
• 2.5 Watt speaker power amplifier.
• Internal 70V 2.5Watt speaker transformer.
• Switch selectable 70v or 8 Ohm speaker mode.
• RJ45 Ethernet in/out jacks
• Straight through CAT5 connections (no crossover)
• A/B mode switch for IEE802.3af power format.
• Internal switching regulator converts POE 48Vdc to 15Vdc for internal speaker power amplifier.
• Terminal block speaker connection.
• Current consumption 150ma. Maximum
• Led power indicator.
• PPTC fused.
• Temperature range 0-70C
• Dimensions: L 5.3 x W 3.3 x H 1.6
• Weight .14kg
