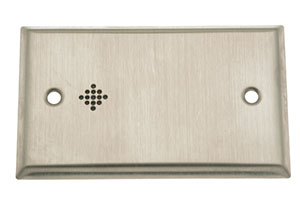

High performance, IP55 weather resistant, Omni-directional pre-amplified microphone for use in applications where vandalism is of concern. Electret element is mounted in a special housing which is out of reach to objects inserted into the sound holes. Built in limiter circuit automatically lowers the output level during loud sound intervals. Selectable lo-cut and hi-cut filters significantly reduce background noise. Stainless steel plate mounts flush or on a single gang electrical box.

Features:

• Omni-directional 25’ pickup pattern.
• Low noise MOSFET pre-amplifier.
• 500Hz-16Khz Frequency response.
• Switch selectable hi-cut/low-cut filters limit frequency response to 900-6khz significantly reducing background noise.
• Switch selectable volume range: "Line level" (0db) or "Microphone level" (-30db)
• Adjustable gain in both volume ranges.
• 100 Ohm unbalanced output.
• Internal peak limiter circuit (.5 sec response)
• 3 position terminal block.
• PTTC fused and reverse polarity protected
• Power: 12 to 24VDC @ 10mA.
• On-board voltage regulator and RFI filtering.
• S/N ratio: more than 60DB
• Sensitivity –45DB
• Industrial temperature range –40 to 85C
• IP55 rated
• Internal .5" thick windscreen.
• Conformal coated circuit board.
• Stainless steel plate mounts flush or on a single gang electrical box.
• Dimensions: L 4.5” W 2.7” H 1.1”
• Weight .07lbs

Includes:

• SM1-TRW flush mount microphone.
• Sealing gasket
• Mounting screws.
• Warning label.
• Installation instructions

Options:

• See Pre-amplifier board selection guide for alternate pre-amplifier form factors.
• Add –LN to P/N for ultra low noise (80db) and high sensitivity (–28db) microphone capsule
