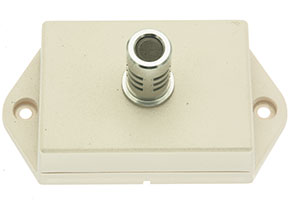

High performance, Unidirectional pre-amplified microphone for use where side noise must be reduced. Simply mount the SM1-ULE in the direction of interest. Built in limiter circuit automatically lowers the output level during loud sound intervals. Selectable lo-cut and hi-cut filters significantly reduce background noise. ABS enclosure Mounts on any flat surface.

Features:

• Uni-directional 25' pickup pattern with reduced (-6db) sensitivity on all sides.
• Low noise MOSFET pre-amplifier.
• S/N ratio: more than 60DB
• Sensitivity –45DB
• 500Hz-16Khz Frequency response.
• Switch selectable hi-cut/lo-cut filters limit frequency response to up to 900 to 6Khz significantly reducing background noise.
• Switch selectable volume range: "Line level" (0db) or "Microphone level" (-30db)
• Adjustable gain in both volume ranges.
• Internal peak limiter circuit (.5 sec response)
• 100 Ohm unbalanced output.
• 3 position Terminal block.
• Power: 12 to 24VDC @ 10mA.
• PTCC fused and reverse polarity protected
• On-board voltage regulator and RFI filtering.
• Industrial temperature range: -40C to 85C
• ABS enclosure mounts on any surface.
• Dimensions: L 5.1” W 2.7” H 1.2”
• Weight 0.1lbs

Includes:

• SM1-ULE Surface mount microphone.
• Warning label
• Installation instructions

Options:

• See Pre-amplifier board selection guide for alternate pre-amplifier form factors.
• Add –BK to P/N for black enclosure
