Powers an SM1 series microphone and routes its audio output to an RCA jack (or 3.5mm) for connection to equipment with a un-balanced line level input. For use with DRVs, I/P cameras, remote monitoring applications, and CCTV monitors with built in speakers. Ideal for use with any SM1-X microphone and I/P camera "microphone level" inputs.

Features:

• RCA or 3.5mm output connector (specify upon ordering).
• Euro-style connectors makes cable terminations fast and clean.
• Adjustable audio output level control.
• Power: 12VDC @ 10ma.
• Reverse polarity protected and fused.
• Dimensions: L 2.7 x W 1.7 x H 1.6

Includes:

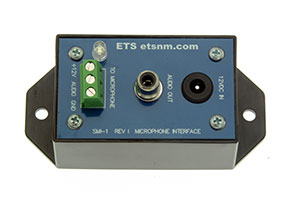

• SM2-L Interface adapter.
• 12 VDC AC adapter.
• 1 each 3’ RCA or 3.5mm patch cable.
• Installation instructions

Options:

• SPECIFY: RCA OR 3.5mm output connector
