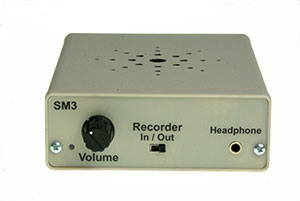

ETS - SM3 - 1 Channel Amplifier Base Station
Part number:
SM3
Price:
- • 2 Watt speaker power amplifier
- • 3" Full range speaker
- • 3.5mm headphone jack
- • Line level input and output RCA jacks for connection to DVRs and audio recorders.
- • Recorder monitor switch.
- • Volume control.
- • Power: 12Vdc @ 250ma
- • Reverse polarity protected and fused.
- • High quality metal housing.
• Stranded 22-gauge, 2-conductor shielded cable with drain wire. Max. cable length: 1500
• Includes: SM3 base station, 15VDC AC adapter, Installation instructions
| Amplifier Power | 2 Watt |
| Speaker | 3" full range |
| Headphone Jack | 3.5mm |
| Audio Input/Output | Line level input and output jacks for connection to DVRs and tape recorders |
| Recorder Monitor | Switch |
| Volume Control | Yes |
| Power Requirement | 12Vdc @ 250mA |
| Protection | Reverse polarity protected and fused |
| Enclosure | High quality metal |
| Dimensions (L x W x H) | 5.50" x 4.10" x 1.60" |
Name
Description
Size
Downloads
File
Datasheet
0.2mb
File
Instructions
0.1mb
This is a stand-alone base station for monitoring any SM1 series microphone. It has terminals for connecting and powering up any Sound Surveillance SM1 series microphone. It connects to DVRs or audio recorders for live monitoring or playback. There is also a headphone jack for private listening.
