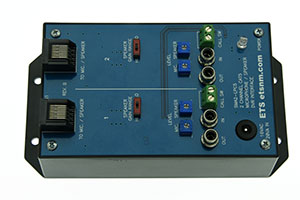

The SMA2-LPC5 is a 2 channel,line level input / output, 2 Watt, 70V speaker driver (power amplifier) and SM series microphone interface for use in 2 way audio surveillance systems. A single CAT5 cable connects the SMA2-C5 to any ETS speaker/microphone ordered with a C5 option. Directly connects to DVRs and remote monitoring equipment.

Use one of our Sound Surveillance Speaker / microphones (C5 option) with a built in 70V transformer & SM1 microphone for cable runs up to 1000 feet. OR use the MSI-BOC5 interface for separate speakers and microphones.

Features:

• Single CAT5 cable run up to 1000' between SMA2-LPC5 and speaker/microphone.
• Line level (0db) audio input and outputs.
• RCA input / output jacks for connection to DVRs etc.
• Adjustable independent volume controls for speaker and microphone.
• 2.5 Watts RMS power output per channel (70v balanced line).
• Terminals for connecting call switches or door lock relays.
• Short circuit protected.
• Built in 70V 2.5w audio power transformers.
• LED power indicator.
• Call sw: unreferenced, 2 free terminals.
• Power:12Vdc @ 500mA
• PTTC fused.
• Black plastic ABS housing.
• Dimensions: L 5.3 x W 3.3 x H 1.6
• Weight .2kg

Includes:

• SMA2-LPC5 Speaker driver / microphone interface.
• 12Vdc 800ma AC adapter.
• 4 each 6’ RCA patch cords
• Installation instructions.

Options:

• Add –3.5MM or –FL (Flying Leads) to P/N for alternate output cables.

Wiring Requirements:

• 1 CAT5 8 conductor cable and 2 each RJ45 connectors. 1000’ max.
