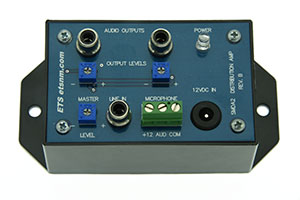

Distributes a single SM1 series microphone signal (or other line level audio source) out to two un-balanced line level RCA jacks. Use to send audio from one microphone to 2 locations.

Features:

• RCA output jacks.
• Line level (0db) output levels.
• Adjustable level control for each output.
• Master level control.
• ETS microphone input or RCA line level type input.
• 3 position terminal block microphone connection
• LED power indicator.
• Power: 12 VDC @ 20mA
• Reverse polarity protected.
• PPTC fused.
• Operating Temperature –40 to 85C
• Black plastic ABS housing.
• Dimensions: L 4.3 x W 2.1 x H 1.75
• Weight .05kg

Includes:

• SMDA-2 Distribution Amplifier
• 15 Vdc 800ma AC adapter.
• 2 each 6’ RCA cord
• Installation instructions.

Options:

• Add –3.5MM or –FL (Flying Leads) to P/N for alternate output cables.
