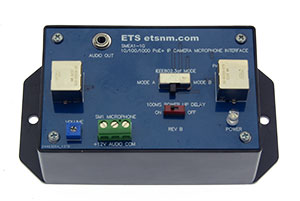

The SMEA-1G is a PoE++ microphone Interface box that is designed to be used with ETS SM1 series pre-amplified microphones and Power Over Ethernet IP cameras that have an audio (line level) input. Support for A and B modes of IEEE802.3af and 10/100/1000 (1G) data rates.

Features:

• RCA or 3.5mm audio output connector
• Line level audio output.
• Transformer isolated audio output.
• Adjustable audio output level.
• 3 position terminal block microphone connection
• Shielded RJ45 Ethernet in/out jacks
• Straight through CAT5/6 connections (no crossover)
• A/B mode switch for IEE802.3af power format.
• Data rates of 10/100/1000 (up to 1G)
• Current consumption 10ma.
• Power up delay switch
• Led power indicator
• Works with all PoE cameras up to PoE++.
• Auto polarity protected & fused.
• Operating Temperature 0 to 70C
• Dimensions: L 4.2 x W 2.7 x H 1.6
• Weight: .11kg

Includes:

• SMEA-1G Interface
• One 6' 3.5mm patch cord
• Installation instructions.

Options:

• Add –RCA or –FL (Flying Leads) to P/N for alternate output cable.
