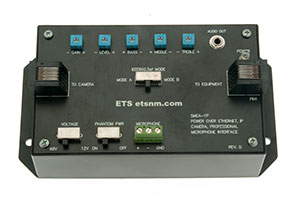

The SMEA-1P permits the connection of any ETS PM1 professional series microphone (or any other balanced 12/48v phantom powered or dynamic professional microphone) to be connected to the ‘microphone input’ or ‘audio input’ of a PoE IP camera without the need for an additional power supply. The SMEA-1P is placed in line with the camera’s CAT5/6 cable run and borrows a small amount of power from the PoE line to power up the interface and microphone. Supports both modes.

Features:

• RCA or 3.5mm audio output connector
• Microphone or line level output.
• Balanced microphone input.
• 12v or 48v Phantom power switch
• Phantom Power on/off switch
• Adjustable pre-amplifier gain.
• Adjustable audio output level.
• Ultra low noise pre-amplifier
• 3 band equalizer
• Transformer isolated, unbalanced audio output.
• 3 Position terminal block microphone connection.
• RJ45 Ethernet in/out jacks
• Straight through CAT5 connections (no crossover)
• A/B mode switch for IEEE802.3af power format.
• current consumption 25ma.
• Led power indicator
• Auto polarity protected & fused.
• Operating Temperature 0 to 70C
• Dimensions: L 5.3 x W 3.3 x H 2.3
• Weight .15kg

Includes:

• SMEA-1P Interface
• Includes: One 6' 3.5mm patch cord
• Installation instructions.

Options:

• Add –RCA or –FL (Flying Leads) to P/N for alternate output cable

Microphone wiring requirements:

• 2 conductor shielded (with drain wire) 22 gauge stranded. Max cable length 500
