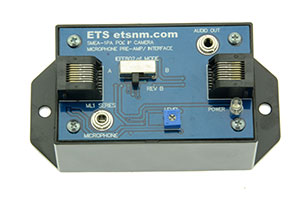

The SMEA-1 is a microphone Interface box that is designed to be used with ETS ML1 series un-pre-amplified microphones and PoE IP cameras that have an audio (line level) input. Support for both A and B modes of IEEE802.3af.

Features:

• RCA or 3.5mm audio output connector
• Line level audio output.
• Transformer isolated audio output.
• Adjustable audio output level.
• 3.5mm microphone input
• RJ45 Ethernet in/out jacks
• Straight through CAT5 connections (no crossover)
• A/B mode switch for IEE802.3af power format.
• Internal regulator converts PoE 48-57Vdc to 15Vdc @ 10ma for powering one ETS microphone.
• Current consumption 15ma.
• Led power indicator
• PPTC fused.
• Operating Temperature –40 to 70C
• Dimensions: L 3.3 x W 2.0 x H 1.6
• Weight .08kg

Includes:

• SMEA-1PA Interface
• One 6' 3.5mm patch cord
• Installation instructions.

Options:

• Add –RCA or –FL (Flying Leads) to P/N for alternate output cable.

Microphone cable requirements:

• ETS ML1 series or equivalent: Shielded cable 25’ max
