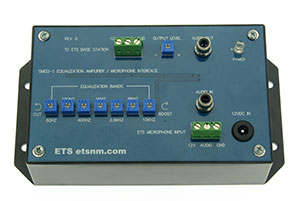

The SMEQ-1 is a 7 band audio equalizer and DVR, IP camera Interface designed to be used with ETS SM1 series microphones. The SMEQ-1 can also be connected in between an SM1 series microphone and any ETS base station. Provides +/-12db sound emphasis or de- emphasis of 7 ranges of frequencies (60-15Khz) for Acoustically difficult environments such as interrogation / interview rooms. The user can tune out unwanted background noise and emphasize the desired sound source.

Features:

• Connect any ETS SM1 series microphone directly to the SMEQ-1.
• 7 frequency band controls: 60hz, 150hz, 400hz, 1Khz, 2.5Khz, 6Khz, 15Khz.
• +/- 12db gain / cut for each frequency band.
• Line level RCA input / output jacks .
• 3 position terminal blocks for connections to ETS microphones and base stations
• Output level control.
•  Reverse polarity protected
• PPTC fused.
• Power 12-24vdc @ 20ma
• Black ABS enclosure.
• Dimensions: L 5.3 x W 3.3 x H 2.3
• Weight .14kg

Includes:

• SMEQ-1 Equalizer / interface
• 15 VDC 800ma AC adapter.
• 1 each 6’ RCA patch cord
• Installation instructions

Options:

• Add –3.5MM or –FL (Flying Leads) to P/N for alternate output cables.

Wiring Requirements:

• Microphone cable run: Stranded 22- gauge, 2-conductor shielded cable. Distances up to 1500 feet.
