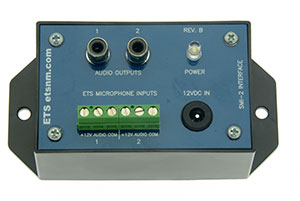

Powers up to 2 ETS SM1 series microphones and distributes their audio outputs to individual RCA (or optional 3.5mm) jacks. Designed for
connecting SM1 series microphones to equipment with un-balanced, line level inputs. Ideal for use with DRVs, remote monitoring equipment and multiple CCTV monitors (with built in speakers)

Features:

• RCA output jacks.
• Line level (0db) output levels.
• Terminal block microphone connections.
• LED power indicator.
• Power:12 VDC @ 20mA
• Reverse polarity protected.
• PPTC fused.
• Black plastic ABS housing.
• Dimensions: L 3.3 x W 2.0 x H 1.6
• Weight .07kg

Includes:

• SMI-2 Interface adapter.
• 15 VDC 800ma AC adapter.
• 2 each 6’ RCA or 3.5mm patch cables.
• Installation instructions

Options:

• Add –RCA or –FL (Flying Leads) to P/N for alternate output cables.
